I/O Modules

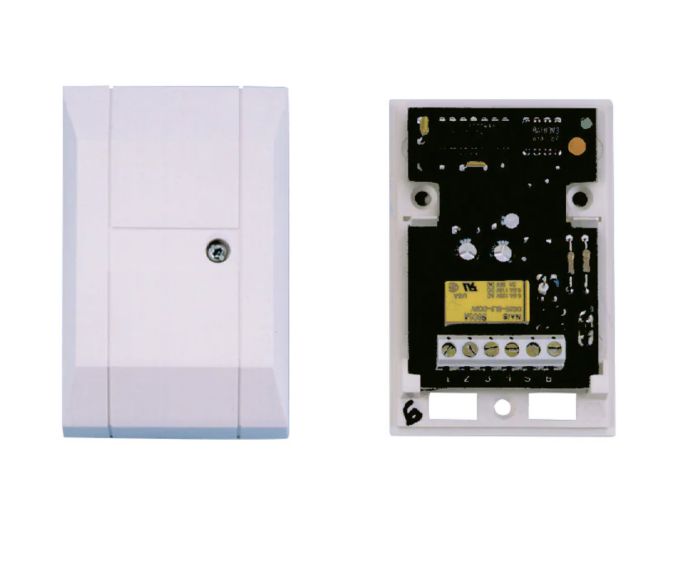

V-Plex® Single-Output Relay Module

V-Plex® single-output relay modules are an accessory for use with ADEMCO control panels that support serial number addressable polling loop output devices.

Overview

V-Plex® single-output relay modules are an accessory for use with ADEMCO control panels that support serial number addressable polling loop output devices.

Features & Benefits:
  • Form C relay contacts rated at 2A, 28V AC/DC with contact supervision; position of the relay is supervised, but not the actual external contact wiring
  • One Class B/Style B EOLR-supervised auxiliary input zone
  • Operating power and communication with control panels via the addressable V-Plex polling loop
  • Electronics mounted in a small plastic case with tamper-protected cover
  • Suitable for residential and commercial burglary and fire installations
Certifications:
  • UL985 Household Fire
  • UL1023 Household Burglary
  • UL609 Commercial Burglary
  • UL864 Commercial Fire
  • CSFM (Pending)
  • FM (Pending)
  • MEA (Pending)
Specifications

Others

  • Maximum Operating Voltage
    • 14 voltage direct current
  • End of Line Resistance
    • 10 kΩ
  • Relay Voltage
    • 28 /DC voltage alternating current
  • Relay Current
    • 2 ampere
  • Type
    • Addressable Relay Module
  • Supported Wiring Configuration
    • Class B
  • Relay Contact Configuration
    • Form C voltage alternating current
  • Approved Location
    • CSFM ampere
    • FM Approved ampere
    • MEA ampere
    • UL 1023 ampere
    • UL 606 ampere
    • UL 864 ampere
    • UL 985 ampere
  • Number of Zones
    • 1
  • Mounting Type
    • Wall inch
  • Product Type
    • Addressable Relay Module Degrees Celsius
  • For Use With
    • ADEMCO millimetre
    • Commercial Burglary millimetre
    • Fire Installation millimetre
    • Residential millimetre
  • Brand
    • Honeywell Security

Others

  • Maximum Operating Voltage
    • 14 voltage direct current
  • End of Line Resistance
    • 10 kΩ
  • Relay Voltage
    • 28 /DC voltage alternating current
  • Relay Current
    • 2 ampere
  • Type
    • Addressable Relay Module
  • Supported Wiring Configuration
    • Class B
  • Relay Contact Configuration
    • Form C voltage alternating current
  • Approved Location
    • CSFM ampere
    • FM Approved ampere
    • MEA ampere
    • UL 1023 ampere
    • UL 606 ampere
    • UL 864 ampere
    • UL 985 ampere
  • Number of Zones
    • 1
  • Mounting Type
    • Wall inch
  • Product Type
    • Addressable Relay Module Degrees Celsius
  • For Use With
    • ADEMCO millimetre
    • Commercial Burglary millimetre
    • Fire Installation millimetre
    • Residential millimetre
  • Brand
    • Honeywell Security
  • Maximum Operating Voltage : 14 voltage direct current
  • End of Line Resistance : 10 kΩ
  • Relay Voltage : 28 /DC voltage alternating current
  • Relay Current : 2 ampere
  • Type : Addressable Relay Module
  • Supported Wiring Configuration : Class B
  • Relay Contact Configuration : Form C voltage alternating current
  • Approved Location : CSFM ampere|FM Approved ampere|MEA ampere|UL 1023 ampere|UL 606 ampere|UL 864 ampere|UL 985 ampere
  • Number of Zones : 1
  • Mounting Type : Wall inch
  • Product Type : Addressable Relay Module Degrees Celsius
  • For Use With : ADEMCO millimetre|Commercial Burglary millimetre|Fire Installation millimetre|Residential millimetre
  • Brand : Honeywell Security
