Duct Detectors

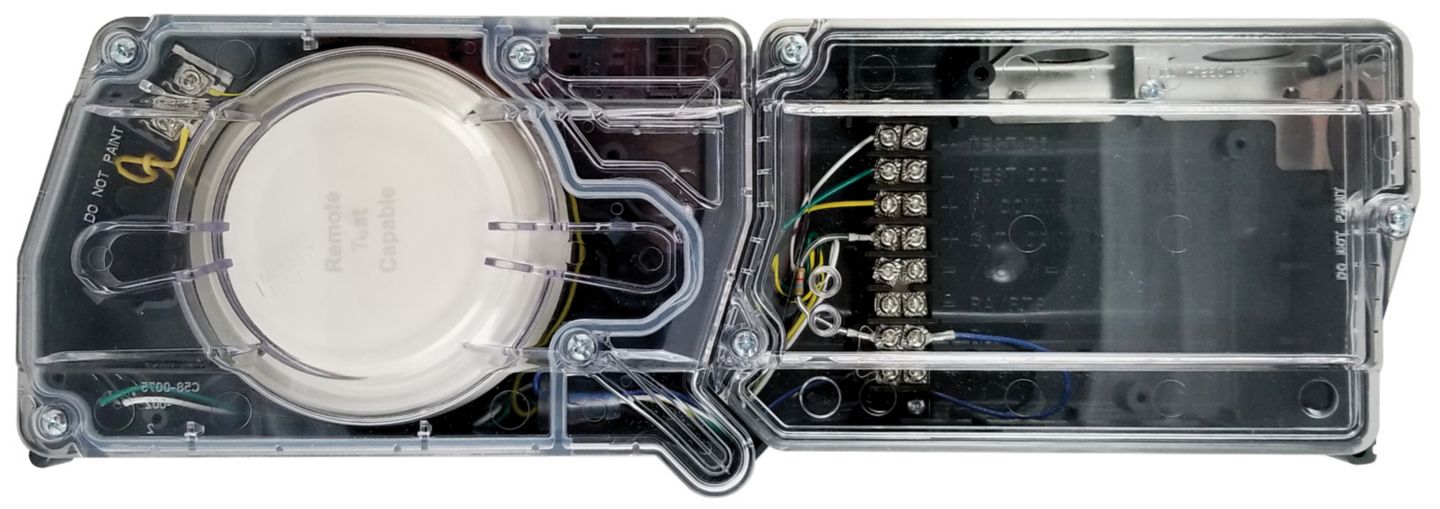

D365PL(A) Intelligent Non-Relay Photoelectric Duct Smoke Detectors
D365PL(A) features a pivoting housing that fits both square and rectangular footprints capable of mounting to a round or rectangular duct.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The Fire-Lite D365PL(A) duct smoke detectors can be customized to meet local codes and specifications without additional wiring and are compatible with all previous models, including remote test accessories
Features & Benefits:- Photoelectric, integrated low-flow technology
- Air velocity rating from 100 ft/min – 4,000 ft/min (0.5 m/s – 20.32 m/s)
- Versatile mounting options: square or rectangular configuration
- Broad ranges for operating temperature (-4°F – 158°F, -20°C – 70°C) and humidity (0% – 93% non-condensing)
- Sampling tube installs from front or back of the detector with no tools required
- Cover tamper signal
- Increased wiring space with a newly added 3/4" conduit knockout
- Easily accessible code wheels on sensor head (Included with D365PL/D365PLA)
- Clear cover for convenient visual inspection (D365PL(A) only)
- Remote testing capability
- Requires com line power only
- Housing accommodates an addressable relay module, sold separately, (CRF-300) for applications requiring a Form-C relay
- UL: S1059
- ULC: S1059
- CSFM: 3242-0075:0508
- FM approved
