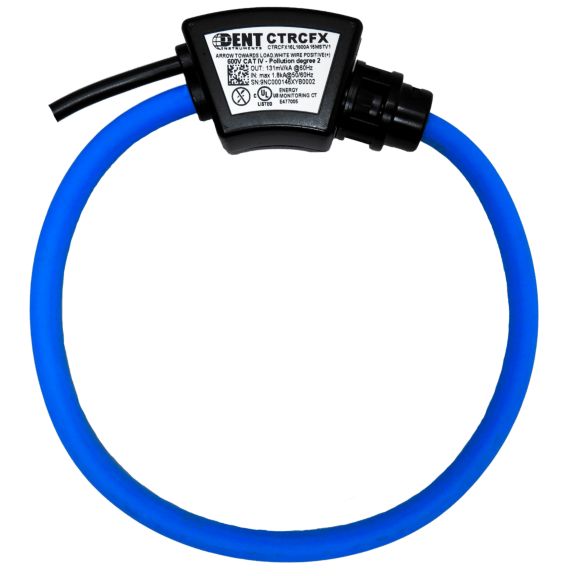

Dent RoCoil™ Rogowski Coil Current Transformers
Auslaufmodell
The DENT RōCoil™ Current Sensors, known as “Flexible Ropes”, have been designed for accurate, non-intrusive measurement of AC current, pulsed DC or distorted waveforms where conventional rigid core sensors are unsuitable.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Übersicht
Dieses Produkt wurde eingestellt.
Die Produktbetreuung wird von Honeywell bis .. bereitgestellt.
Used to measure AC current over a wide dynamic range and from 20 Hz to 5 kHz.
RoCoil CTs are designed for use with ANSI C12 Class meters such as Honeywell X-Mon Branch Circuit Meter.
This Rogowski-type sensor produces an output signal (di/dt) of 131mVAC per 1000A at 60 Hz (110mVAC/1000A @ 50 Hz). Performance of these CTs meets or exceeds IEEE C57.13 Class 1.2.
Features & Benefits:- 16″ RoCoil: Current Range 5-1800A AC (depending on meter)

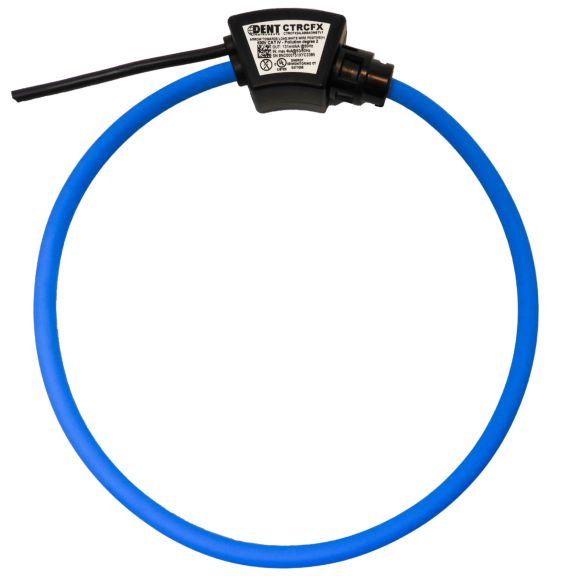

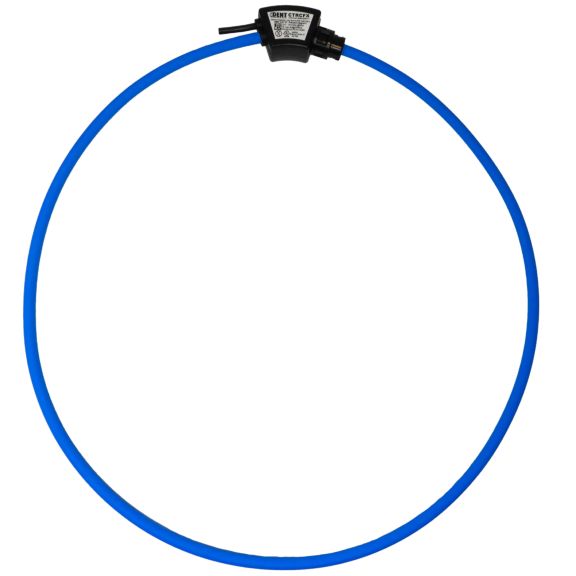

- 24″-47″ RoCoil: Current Range 5-5000A AC (depending on meter)
- Accuracy: 100% verified to meet C57.13-2008 Class 1.2 Standard. <0.6% typical.
- Designed for accurate, non-intrusive measurement
- Fit into panels where rigid core CTs are unsuitable or simply won’t fit

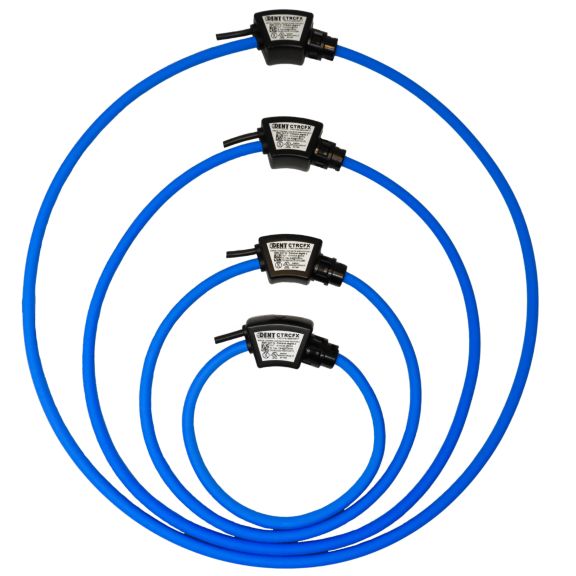

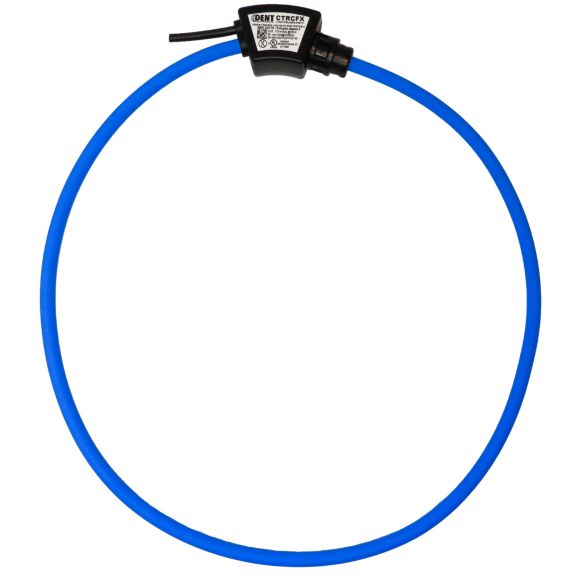

- 16″, 24″, and 36″ models available with 7M or 15M leads, contact factory for ordering information.
- Use to measure AC current over a wide, dynamic range
- Compatible with Honeywell X-Mon Branch Circuit Meter
- UL 2808 Certified
- Certified to CAN/CSA STD C22.2 No. 61010
