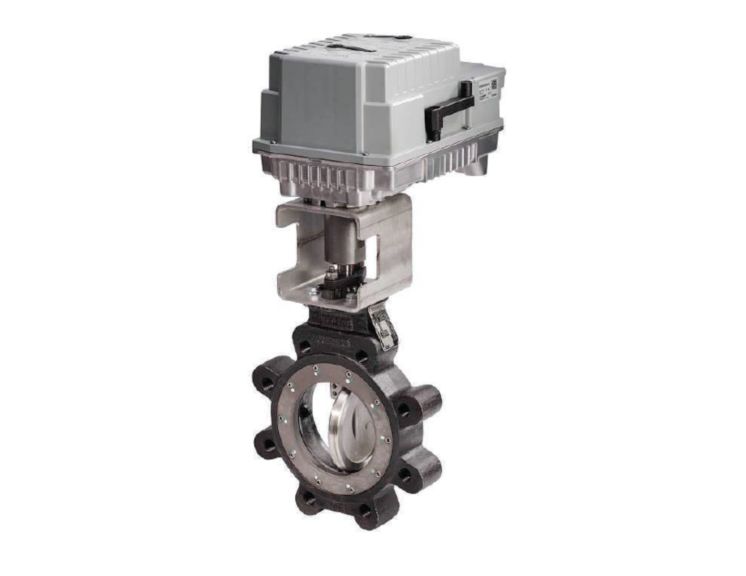

VS Series Butterfly Valves
VS Series Butterfly Valves
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Übersicht
VS Series ANSI300 high-performance butterfly valves provide control for HVAC systems. Applications include chilled water, hot water, cooling tower water, thermal storage systems and steam up to 50 psi.
Features & Benefits:- ANSI Class 300
- 316 stainless steel disks; carbon steel valve body; stainless steel valve stem
- RPTFE valve seat
- 0% Leakage up to 600 psi
- Maximum velocity of 32 fps
- Close-off rating of upto 600 psid
- For use with hot, chilled, or condensing water with up to 60% glycol, and on-off control of steam up to 50 psi in HVAC systems
- Valve Face-to-face dimensions comply with API 609 & MSS-SP-68
- Designed to be installed between ASME/ANSI B16.5 Flanges
- Unidirectional Flow
