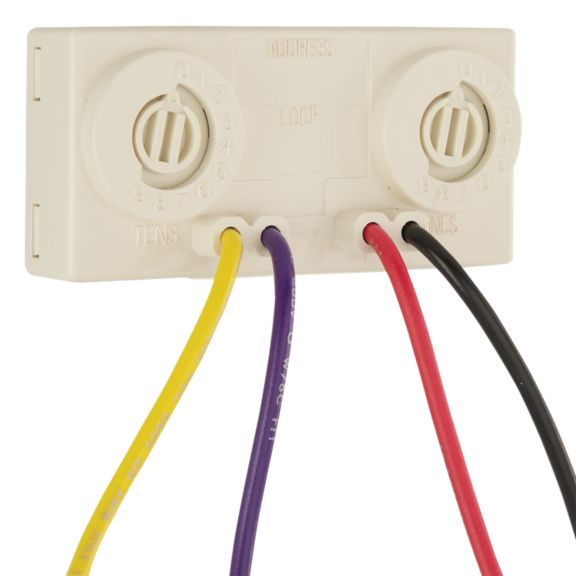

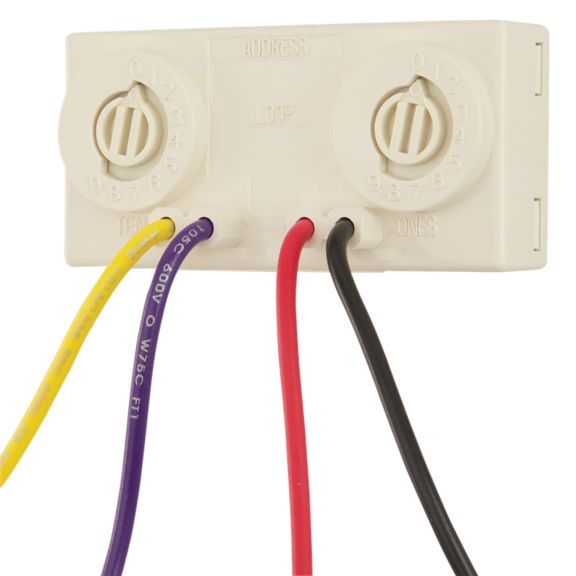

IDP-Minimon Monitor Module
IDP-Minimon is a compact and light weight addressable monitor module for use with Silent Knight IFP-series fire alarm control panels (FACPs). The IDP-Minimon acts as an interface to contact devices, such as waterflow switches and pull stations.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Übersicht
IDP-Minimon is a compact and light weight addressable monitor module for use with Silent Knight IFP-series fire alarm control panels (FACPs). The IDP-Minimon acts as an interface to contact devices, such as waterflow switches and pull stations. The IDP-Minimon supports Class B supervised wiring to the load device. Conventional 4-wire smoke detectors can be monitored for alarm and trouble conditions. The IDP-Minimon can be mounted in a single gang junction box directly behind the monitored device. Its small size and light weight allow it to be installed without rigid mounting requirements.
Features & Benefits:- Single contact monitor
- Small and lightweight size allows for flexible mounting options
- Support for Class B wiring
- Fully supervised
- Rotary address switches for fast installation
- Analog communications
- UL Approved
- CSFM Listed
- MEA Listed 457-99-E Vol. V
Spezifikationen
Andere
- Brand
- Farenhyt
- Product Type
- Monitor Module
Andere
- Brand
- Farenhyt
- Product Type
- Monitor Module
- Brand : Farenhyt
- Product Type : Monitor Module
