Multi-Sense® Model 231RS Differential Pressure Transducer
The 231RS wet-to-wet differential pressure transducers has a robust, NEMA 4 enclosure with an LCD display and a hinged, captive cover allowing for easy access to switches in order to adjust range and output.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.

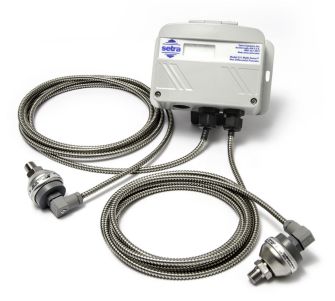

Setra’s models 231RS are the industry’s first multi-configurable, wet-to-wet differential pressure transducers utilizing remote sensors. The design of wet-to-wet differential pressure transducers utilizing remote sensors reduces labour and material costs versus traditional copper piping installations. The 231RS wet-to-wet differential pressure transducers has a robust, NEMA 4 enclosure with an LCD display and a hinged, captive cover allowing for easy access to switches in order to adjust range and output.
Remote sensors provide multiple advantages, by connecting the high and low side transducers at the point of measurement instead of running copper piping back to the transducer, the labour and material costs are cut by one-third. Transducers has a multi-configurable design, providing the user with field selectable ranges and outputs as well as push button or remote zero. This design gives the user total flexibility to make changes on the job site. Wet-to-wet differential pressure transducers offers remote sensors that connect to the unit via armored jacket, cable or conduit fitting available in 10, 20, 30, 40 and 50 foot lengths. With the remote sensors, there is no need for a 3 or 5 valve manifold and no risk to compromising the electronics.
Transducers has an optional LCD display which gives the user the ability to view the high, low and differential pressure outputs locally at the device. The visual indicator gives instant feedback providing performance validation to the user. Energy management systems, process control systems, flow measurement of various gases or liquids, liquid level measurement of pressurized vessels, pressure drop across filters are the applications of wet-to-wet differential pressure transducers.
Features & Benefits:- Remote sensor design
- Labor and material costs cut by one third
- Field selectable ranges
- Field selectable outputs
- Field accessible push button & remote zero
- Jumper selectable port swap
- All cast aluminium, NEMA 4 rated housing
- CE
- RoHS
Andere
- Connection Size
- 1/4 - 18 inch
- Output Signal
- 4 - 20 milliampere
- Minimum Operating Ambient Temperature
- -20 degree Celsius
- -4 degree Fahrenheit
- Maximum Operating Ambient Temperature
- 185 degree Fahrenheit
- 85 degree Celsius
- Minimum Storage Temperature
- -20°C
- -4°F
- Maximum Storage Temperature
- 185 degree Fahrenheit
- 85 degree Celsius
- Brand
- Alerton
- Connection Type
- NPT
- Pressure Type
- Differential
Andere
- Connection Size
- 1/4 - 18 inch
- Output Signal
- 4 - 20 milliampere
- Minimum Operating Ambient Temperature
- -20 degree Celsius
- -4 degree Fahrenheit
- Maximum Operating Ambient Temperature
- 185 degree Fahrenheit
- 85 degree Celsius
- Minimum Storage Temperature
- -20°C
- -4°F
- Maximum Storage Temperature
- 185 degree Fahrenheit
- 85 degree Celsius
- Brand
- Alerton
- Connection Type
- NPT
- Pressure Type
- Differential
- Connection Size : 1/4 - 18 inch
- Output Signal : 4 - 20 milliampere
- Minimum Operating Ambient Temperature : -20 degree Celsius|-4 degree Fahrenheit
- Maximum Operating Ambient Temperature : 185 degree Fahrenheit|85 degree Celsius
- Minimum Storage Temperature : -20°C|-4°F
- Maximum Storage Temperature : 185 degree Fahrenheit|85 degree Celsius
- Brand : Alerton
- Connection Type : NPT
- Pressure Type : Differential
