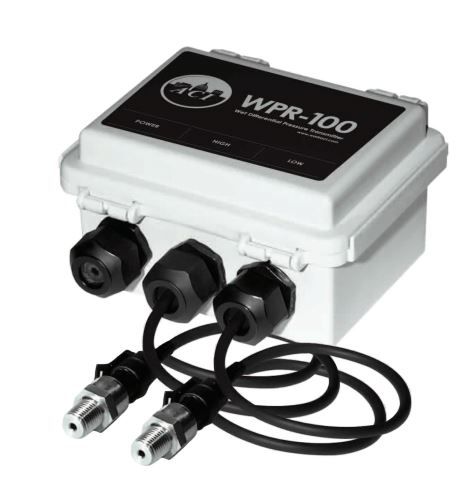

Remote Probe Differential Pressure Transducer
The A/WPR Series Remote Wet to Wet Differential Pressure Sensor is designed to reduce installation time and to provide mounting flexibility. They accurately measure wet media pressures in a variety of applications.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
The A/WPR Series Remote Wet to Wet Differential Pressure Sensor is designed to reduce installation time and to provide mounting flexibility, often eliminating the need for additional plumbing. They accurately measure wet media pressures in a variety of applications. Commonly used for monitoring pumps, these devices are also ideal for measuring pressure across filters, heat exchangers and compressors. Wet to Wet Differential Pressure Transducers provides Remote probes.
The A/WPR’s enclosure opens conveniently to allow it to be reconfigured between three additional ranges and outputs of 4 to 20 mA (default), 0 to 5 VDC, or 0 to 10 VDC. The A/WPR Series can measure unidirectional or bi-directional pressure ranges as low as 15 psi and as high as 300 psi. The A/WPR also features a push button auto zero function for remote calibration efficiency. The A/WPR Series is covered by ACI's Five (5) Year Limited Warranty.
Features & Benefits:- Reduce installation time and provide mounting flexibility
- Pushbutton Zero
- Selectable Range
- Selectable Direction
- Selectable Output
- IP66 Rated Enclosure
- RoHS
Others
- Output Signal
- 4 - 20 milliampere
- Connection Size
- 1/4 - 18 inch
- Minimum Operating Ambient Temperature
- -15 (Enclosure) degree Fahrenheit
- -40 (Sensor) degree Fahrenheit
- -40 (Sensor) degree Celsius
- 5 (Enclosure) degree Celsius
- Maximum Operating Ambient Temperature
- 110 (Sensor) degree Fahrenheit
- 176 (Enclosure) degree Celsius
- 230 (Sensor) degree Celsius
- 80 (Enclosure) degree Fahrenheit
- Connection Type
- 2-Wired/3-Wired
- NPT
- Pressure Type
- Differential
- Brand
- Alerton
Others
- Output Signal
- 4 - 20 milliampere
- Connection Size
- 1/4 - 18 inch
- Minimum Operating Ambient Temperature
- -15 (Enclosure) degree Fahrenheit
- -40 (Sensor) degree Fahrenheit
- -40 (Sensor) degree Celsius
- 5 (Enclosure) degree Celsius
- Maximum Operating Ambient Temperature
- 110 (Sensor) degree Fahrenheit
- 176 (Enclosure) degree Celsius
- 230 (Sensor) degree Celsius
- 80 (Enclosure) degree Fahrenheit
- Connection Type
- 2-Wired/3-Wired
- NPT
- Pressure Type
- Differential
- Brand
- Alerton
- Output Signal : 4 - 20 milliampere
- Connection Size : 1/4 - 18 inch
- Minimum Operating Ambient Temperature : -15 (Enclosure) degree Fahrenheit|-40 (Sensor) degree Fahrenheit|-40 (Sensor) degree Celsius|5 (Enclosure) degree Celsius
- Maximum Operating Ambient Temperature : 110 (Sensor) degree Fahrenheit|176 (Enclosure) degree Celsius|230 (Sensor) degree Celsius|80 (Enclosure) degree Fahrenheit
- Connection Type : 2-Wired/3-Wired|NPT
- Pressure Type : Differential
- Brand : Alerton
Data Sheet
