current sensors

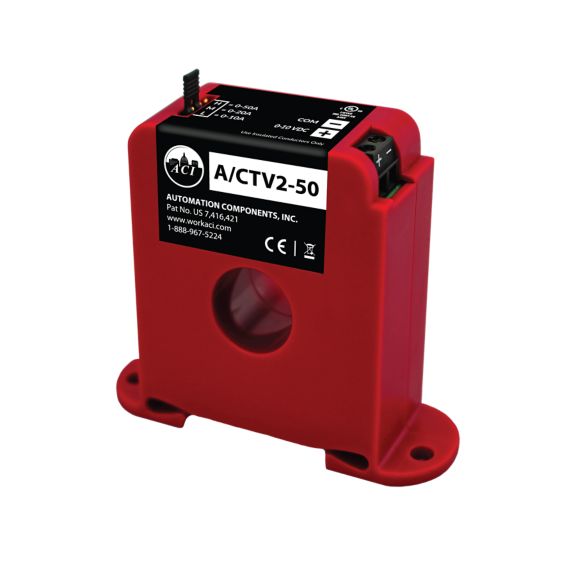

Voltage Output Analog Current Sensor
The Voltage Output Analog Current Sensors are designed for use in any AC current monitoring application in which you are looking to monitor a particular piece of equipment for proper operation.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Este producto ha sido descatalogado.
The Voltage Output Analog Current Sensors are designed for use in any AC current monitoring application in which you are looking to monitor a particular piece of equipment for proper operation. All voltage output current sensors use an “Average” current measuring method and should be used in applications where a pure Sinusoidal AC waveform that has very little or no distortion/noise on the conductor being monitored. Applications may include monitoring a resistive type load such as an incandescent light bulb or heating element as well as any single speed linear load. Voltage Output current sensors are available in both solid and split-core versions which also includes a Patented 35 mm Din Rail mounting foot for easy installation in panel mount applications. The solid-core versions are a great choice for new installations or OEM applications in which cost sensitivity, lower trip points and environmental issues like dust and moisture may be of concern.
Features & Benefits:- 5 year warranty
- CE
- RoHS2
- WEEE
Otros
- Output Signal
- 0 - 10 voltage direct current
- Minimum Operating Ambient Temperature
- -15 degree Celsius
- 5 degree Fahrenheit
- Maximum Operating Ambient Temperature
- 104 degree Fahrenheit
- 40 degree Celsius
- Brand
- Alerton
- Product Type
- Current Sensor Degrees Celsius
- Includes
- DIN Rail Mounting Foot foot
Otros
- Output Signal
- 0 - 10 voltage direct current
- Minimum Operating Ambient Temperature
- -15 degree Celsius
- 5 degree Fahrenheit
- Maximum Operating Ambient Temperature
- 104 degree Fahrenheit
- 40 degree Celsius
- Brand
- Alerton
- Product Type
- Current Sensor Degrees Celsius
- Includes
- DIN Rail Mounting Foot foot
- Output Signal : 0 - 10 voltage direct current
- Minimum Operating Ambient Temperature : -15 degree Celsius|5 degree Fahrenheit
- Maximum Operating Ambient Temperature : 104 degree Fahrenheit|40 degree Celsius
- Brand : Alerton
- Product Type : Current Sensor Degrees Celsius
- Includes : DIN Rail Mounting Foot foot
