Modules de relais

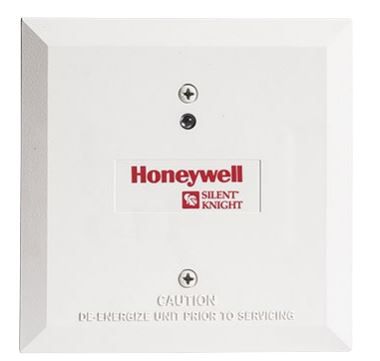

Intelligent Relay Module
Honeywell's intelligent relay modules have been designed for use with silent knight series fire alarm control panels.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
The intelligent relay modules allows a Silent Knight fire alarm control panels to switch discrete contacts by code command. The relay contains two isolated sets of Form C contacts, which operate as a DPDT switch. No supervision is provided for the notification appliance circuit. The SK-RELAY contacts can be used for virtually any normally open or normally closed application. Each SK-RELAY is programmed with a unique signaling line circuit (SLC) loop address. When an event occurs that controls the relay module, the relay is triggered by the fire alarm control panels.
_x000D_ Features & Benefits:- _x000D_
- Two sets of Form C contacts_x000D_
- Rotary address switches for fast installation_x000D_
- Contacts are rated for a variety of amps_x000D_
- Panel controlled status LED that flashes green in normal state and is solid red in alarm_x000D_
- Relay programming is completely flexible– can be mapped to zone conditions_x000D_
- Polling LED visible through the cover plate_x000D_
- SEMS screws for easy wiring
- _x000D_
- UL Listed
