MS-9050UD Fire Alarm Control Panel

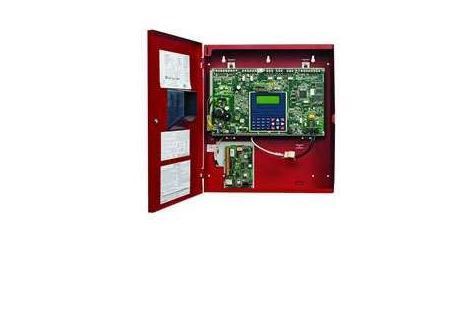

MS-9050UD fire alarm control panels (FACPs) are combined with digital alarm communicator/transmitters (DACTs) all on one circuit board. These compact, intelligent addressable control panels support up to 50 addressable detectors and/or modules. With an extensive list of powerful features, these panels are just like Fire-Lite’s larger products, yet fit into applications previously served only by conventional panels. The integral DACT transmits system status (alarms, troubles, AC loss, etc.) to a central station via the public switched telephone network. The power supply and all electronics are contained on a single-circuit board supported on a quick-install chassis and housed in a metal cabinet.

• Auto-program (learn mode) reduces installation time (reports two devices set to the same address)
• On-board DACT
• Two independently programmable Style Z (Class A) or Style Y (Class B) NACs
• Selectable strobe synchronization for System Sensor®, Wheelock®, and Gentex® devices
• Remote Acknowledge, Silence, Reset and Drill via addressable monitor modules
• Two programmable relays and one fixed trouble relay
• Built-in programmer
• Telephone line active LEDs
• EIA-232 PC interface

• UL: S624
• FM Approved
• CSFM: 7165-0075:210
• MEA: 442-06-E
