USB Charging Sockets

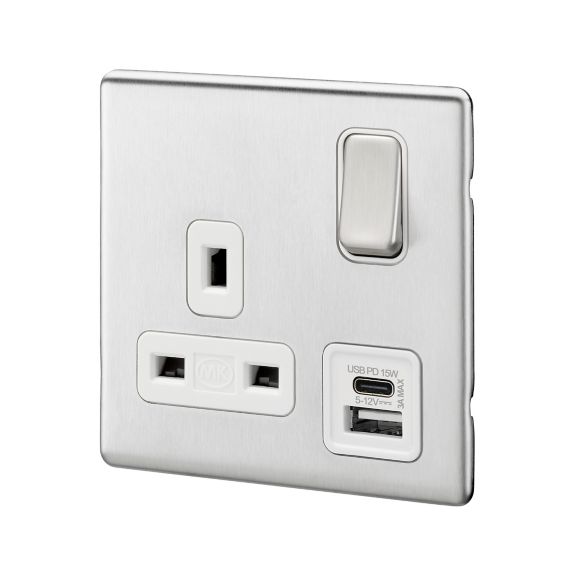

Aspect USB Socket
Charge your Portable Device via A or C Type USB using 15W of Total Power within an Aspect Wiring Device Offer
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

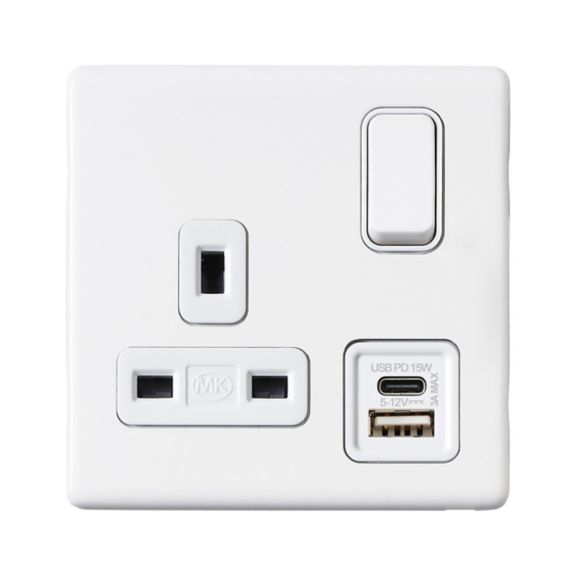

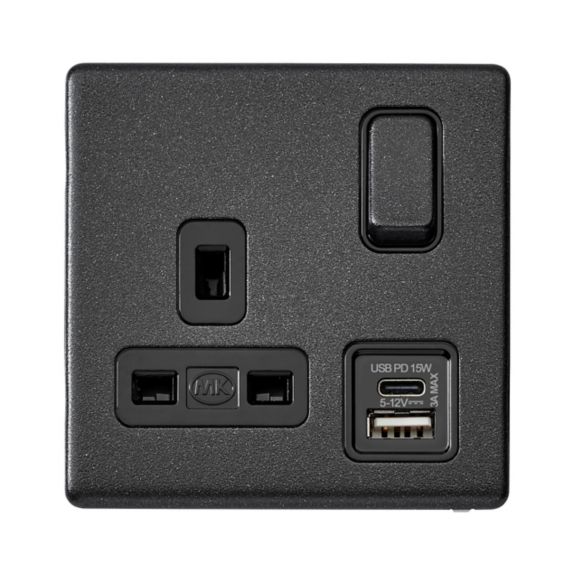

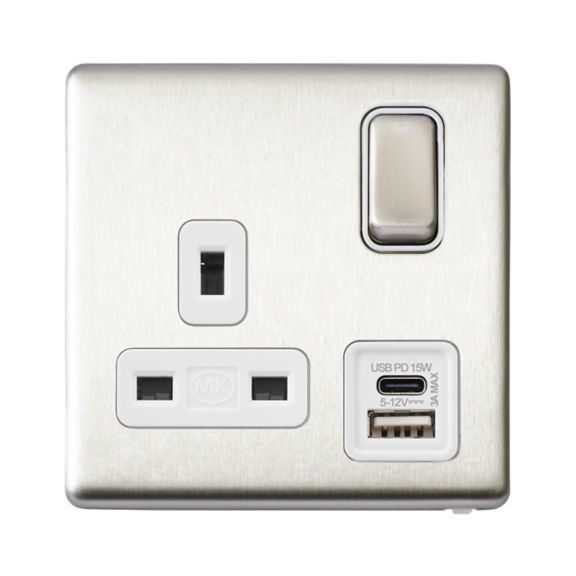

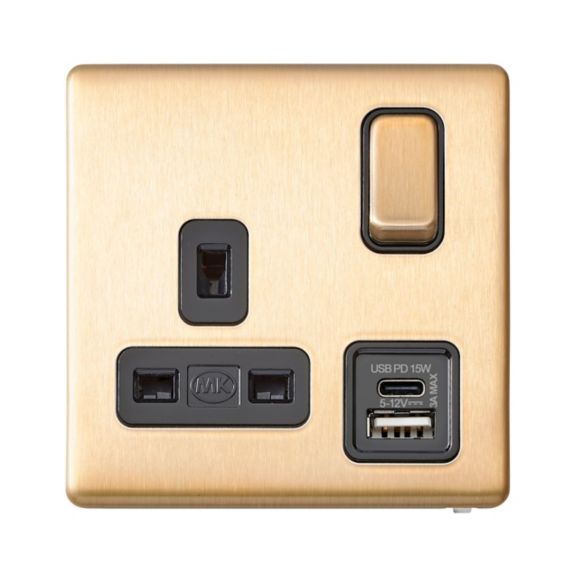

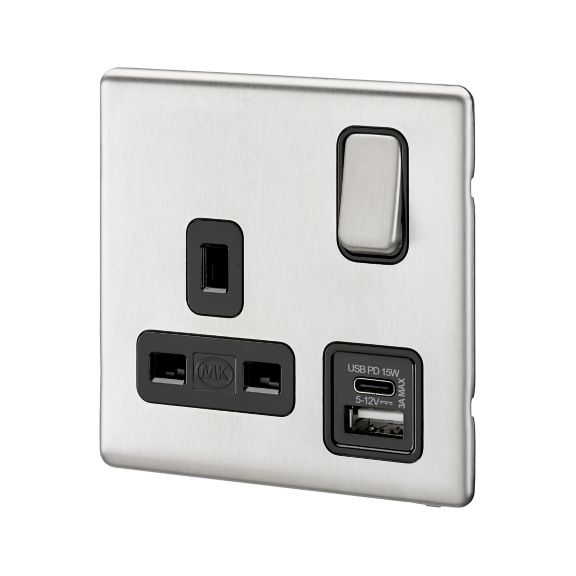

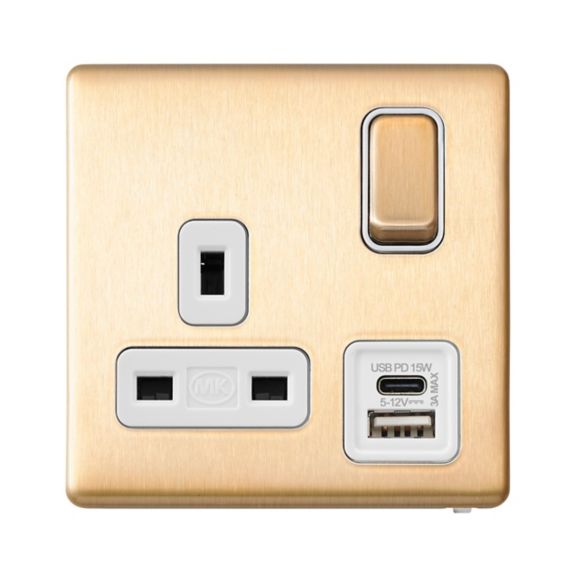

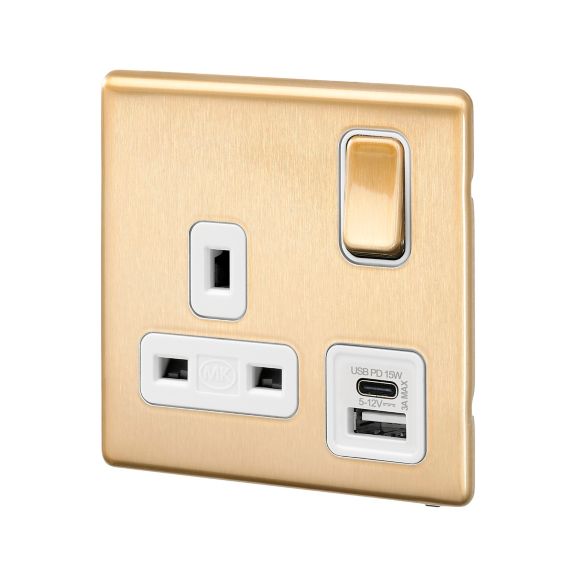

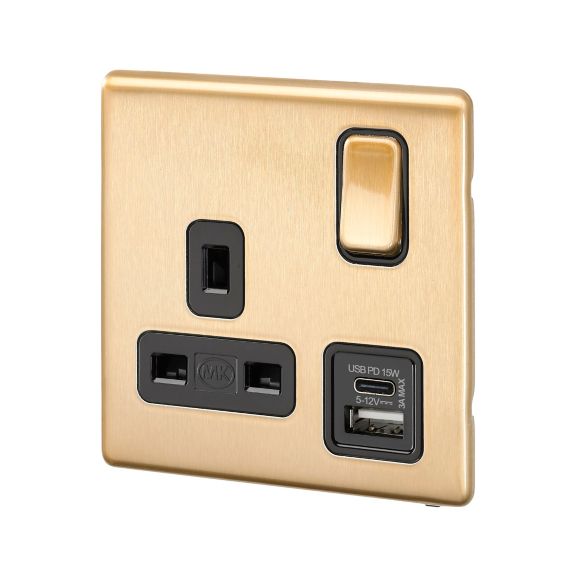

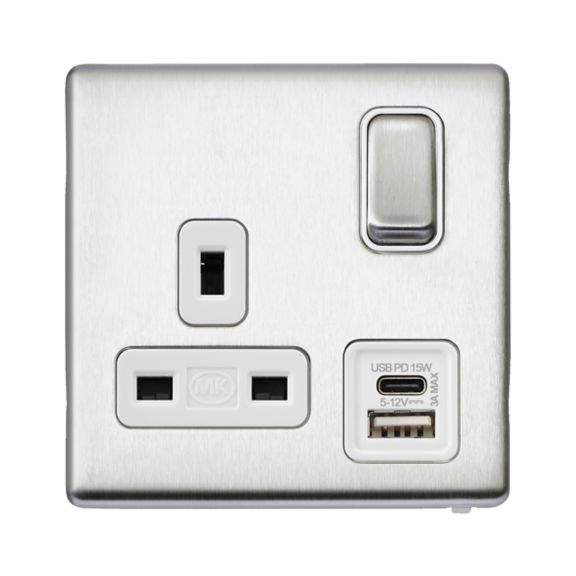

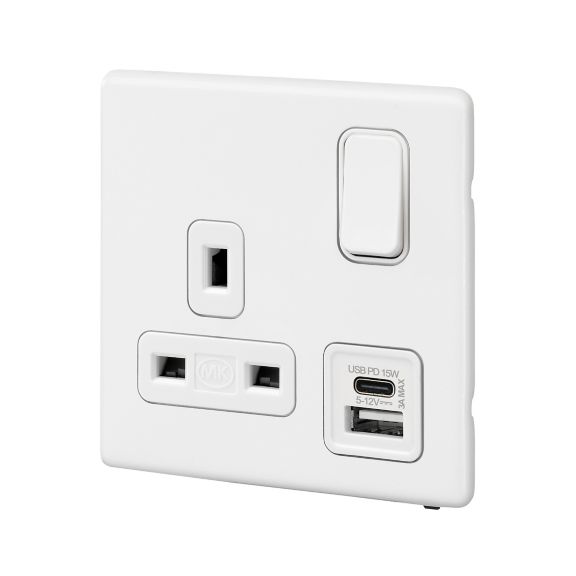

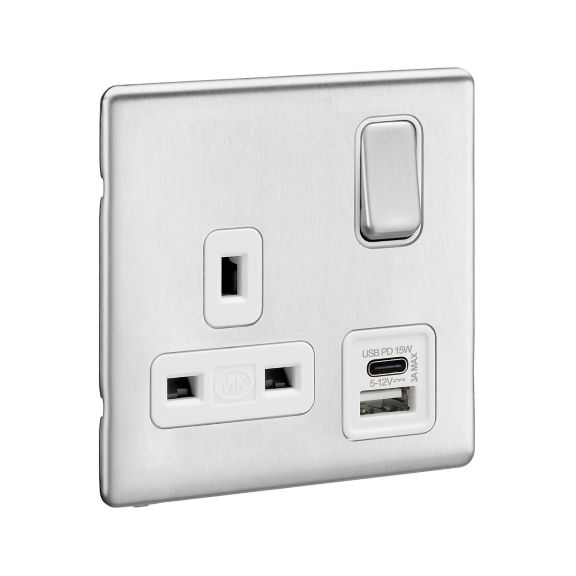

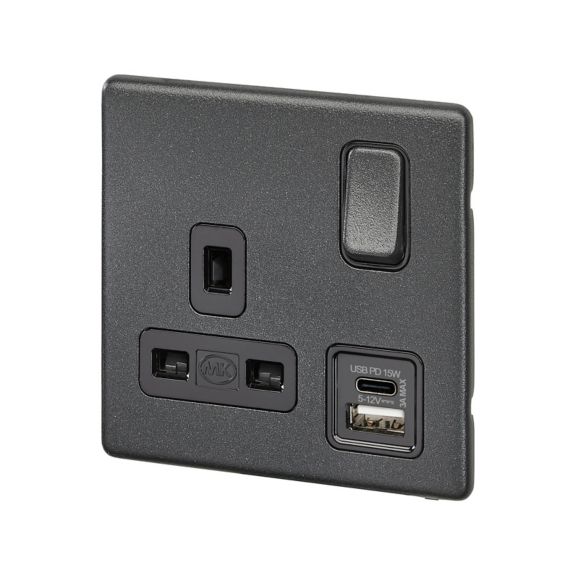

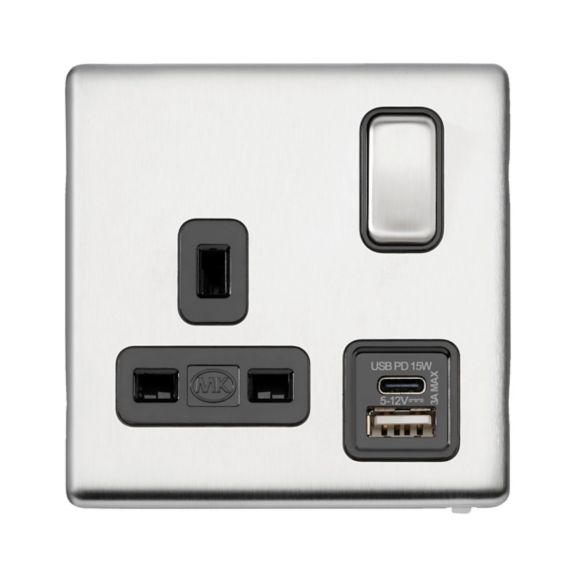

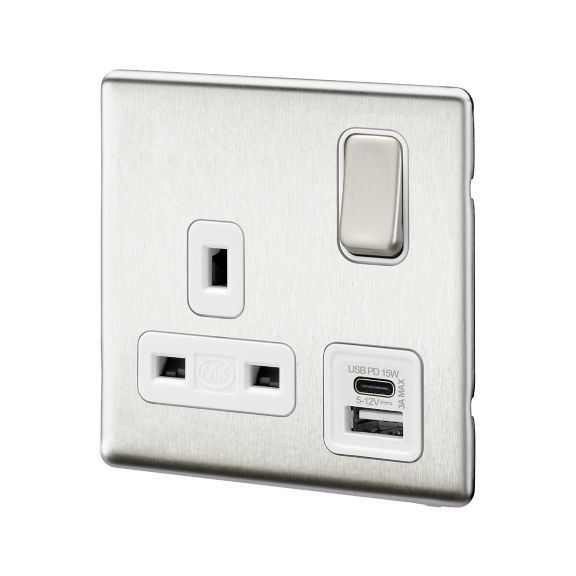

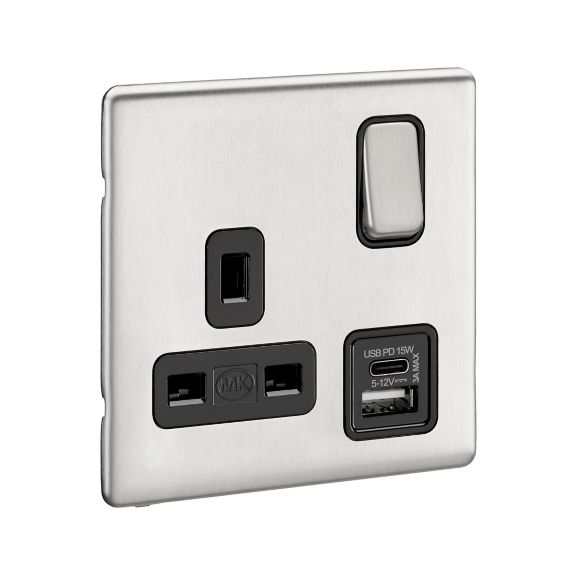

Aspect 13A USB sockets are a extensive range of sockets offering additional USB charging capability. The range has a 4mm slim screwless profile available in 9 high quality metallic finishes with a choice of black and white module inserts. All the sockets have double pole switching as standard
Products are suitable for a wide array of applications, as they are available in 1 Gang and 2 Gang form factors, all with dual earth capability
Designed for total quality, safety and reliability, the sockets boast a wealth of features that make them one of the safest and most advanced sockets available.
Features & Benefits:- If two devices are connected to USB outlets the total rated current is divided between the two outlets.
- If the total charging current exceeds the rated power then the device will enter a current limiting safety mode.
- Electronically protected against an overload or short circuit on either USB outlet.
- 3 Pin "child resistant" safety shutter stystem on 13A socket outlets inhibits access to power unless all 3 pins of a BS plug are inserted.
- Backed out, in line terminals for easier installation.
- Double Pole Switching with additional electrical safety from the neutral pole contact "makes first" & "breaks last" after the live contact.
- Dual earth terminals for added user safety.

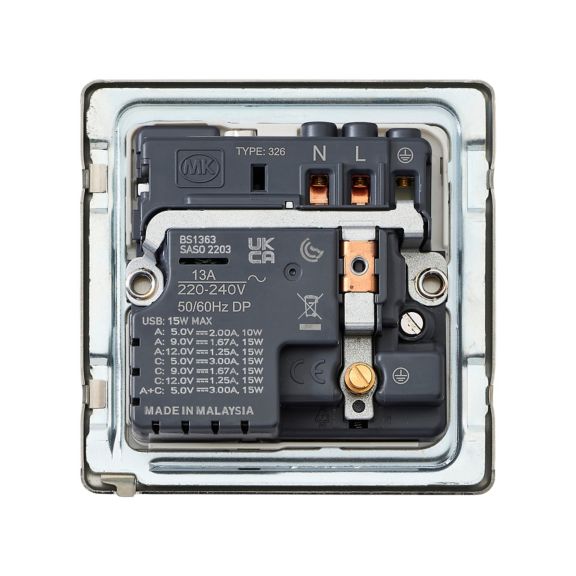

- Printed terminal markings on grey rear moulding for clearer identification.
- 5 year guarantee
Specifications
Others
- Brand
- MK Electric
- Minimum Mounting Box Depth
- 35
- Number of Terminal Cables
- 3
- Cable Securing Mechanism
- Screw Clamp
- Regulatory Approvals
- BS1363-2
- USB Supply Voltage
- 5-12 volt
- Terminal Capacity
- 3 x 2.5mm² ; 3 x 4mm² ; 2 x 6mm²
- Plug Type Options
- USB Type A ; USB Type C
- Operating Voltage
- 220-240 volt
- USB-Anschlüsse
- 2
- Overall Height
- 86 millimetre
- Fixing Centers
- 60.3 millimetre
- Current Rating
- 13
- Overall Width
- 86 millimetre
- Overall Depth
- 24.5 millimetre
- Insert Color
- Black ; White
- USB Outlets
- 2
- USB Current
- 3 ampere
- Material
- Metal
- Includes
- Fixing Screws
- Finish
- Brushed Stainless Steel ; Lacquered Brushed Steel ; Stain Gold ; Porcelain White ; Lustrous Black ; Matt Black
- Gangs
- 1 volt
Others
- Brand
- MK Electric
- Minimum Mounting Box Depth
- 35
- Number of Terminal Cables
- 3
- Cable Securing Mechanism
- Screw Clamp
- Regulatory Approvals
- BS1363-2
- USB Supply Voltage
- 5-12 volt
- Terminal Capacity
- 3 x 2.5mm² ; 3 x 4mm² ; 2 x 6mm²
- Plug Type Options
- USB Type A ; USB Type C
- Operating Voltage
- 220-240 volt
- USB-Anschlüsse
- 2
- Overall Height
- 86 millimetre
- Fixing Centers
- 60.3 millimetre
- Current Rating
- 13
- Overall Width
- 86 millimetre
- Overall Depth
- 24.5 millimetre
- Insert Color
- Black ; White
- USB Outlets
- 2
- USB Current
- 3 ampere
- Material
- Metal
- Includes
- Fixing Screws
- Finish
- Brushed Stainless Steel ; Lacquered Brushed Steel ; Stain Gold ; Porcelain White ; Lustrous Black ; Matt Black
- Gangs
- 1 volt
