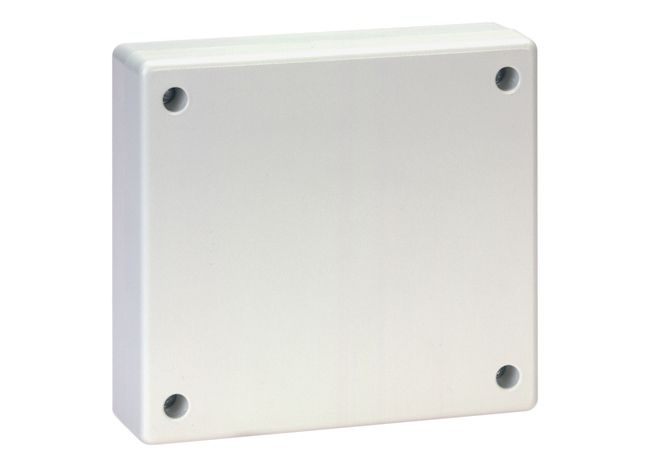

Door Module
The complete door periphery is wired on the door module. The door module is a module bus user and communicates with the ACS-8 via an integrated RS-485 interface.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The complete door periphery is wired on the door module. The door module is a module bus user and communicates with the ACS-8 via an integrated RS-485 interface.
The ACS-8 contains the access control rights and makes the decisions. When equipped with IQ Multi-access (from V3), a door module can control either one or two doors, as desired.
To the door module, also Wiegand readers can be connected. This requires IQMA as of V.12.
Features & Benefits:- 2 Clock/Data readers
- Opening contact for 1 or 2 doors
- Door strike key for 1 or 2 doors
- Feedback contact for 1 or 2 doors
- 2 relays + semiconductor output programmable as door relay for 1 or 2 doors
