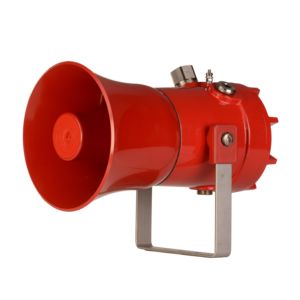

D2xL1F PA Loudspeaker 15W 120dB +/-3dB at 15w at 10'

The D2xL1F is a 15W PA loudspeaker with re-entrant flare horn. A high SPL in a robust Type 4/4X, IP66 marine grade, corrosion proof aluminium enclosure ensures suitability for all Class I/II Div 2 and Zone 2 & 22 hazardous location applications.

The re-entrant flare horn is high impact, fire retardant thermoplastic and is field replaceable – the driver employs a standard 1 3/8" -18 male thread coupling. All models have triple cable entries and duplicated terminals..

The large termination chamber and cover feature a threaded flameproof joint simplifying both installation and routine maintenance.

• Sound output up to 120dB
• Dual 25V/70V or 100V line transformer
• Multiple transformer tappings
• Field replaceable flare component
• Ratchet adjustable 316 stainless steel bracket
• Triple cable entries
• Robust marine grade aluminium enclosure
• Duplicated cable terminations
• UL 1480A (Ed 1) – Speakers for Commercial and Professional Use
• CSA C22.2 No. 205 (Ed 3) – Signal Equipment
• UL 1480 (Ed 6) – Speakers for Fire Alarm and Signaling Systems,
• CAN/ULC-S541 (Ed 4) – Speakers for Fire Alarm and Signaling Systems

• Approvals
• UL/cUL File ref: E230764
• IECEx Certificate: IECEx ULD 19.0008X
• ATEX Certificate: DEMKO 19 ATEX 2141X
• UKCA certificate: UL21UKEX2132X
• CSFM listing: 7136-2279:0503
• CCOE PESO
