Pressostati e sensori di pressione

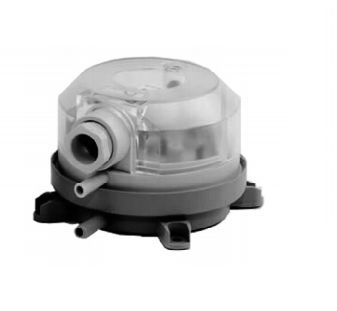

200A Differential Pressure Switched
Differential pressure switched is use for monitoring filter, fan, fire damper, or air flow status of air handling systems.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Panoramica
Differential pressure switched is use for monitoring filter, fan, fire damper, or air flow status of air handling systems.
Features & Benefits:- Switching-point easily adjustable with scale in Pascal
- Direction of PG 11 conduit entry can be rotated in steps of 120°
- Only one screw needed for housing cover
- CE
Specifiche
Altro
- Overall Diameter
- 6 mm
- Minimum Operating Ambient Temperature
- -20 °C
- Minimum Adjustment Pressure
- 20 Pa
- Maximum Switching Pressure
- 10 Pa
- Maximum Operating Pressure
- 5000 Pa
- Maximum Operating Ambient Temperature
- 85 °C
- Maximum Adjustment Pressure
- 200 Pa
- Brand
- Honeywell
- Regulatory Approvals
- CE Watt
- Pressure Type
- Differential
- Electrical Connection
- AMP connectors; 6.3 x 0.8; DIN 46244 or screw terminals
Altro
- Overall Diameter
- 6 mm
- Minimum Operating Ambient Temperature
- -20 °C
- Minimum Adjustment Pressure
- 20 Pa
- Maximum Switching Pressure
- 10 Pa
- Maximum Operating Pressure
- 5000 Pa
- Maximum Operating Ambient Temperature
- 85 °C
- Maximum Adjustment Pressure
- 200 Pa
- Brand
- Honeywell
- Regulatory Approvals
- CE Watt
- Pressure Type
- Differential
- Electrical Connection
- AMP connectors; 6.3 x 0.8; DIN 46244 or screw terminals
- Overall Diameter : 6 mm
- Minimum Operating Ambient Temperature : -20 °C
- Minimum Adjustment Pressure : 20 Pa
- Maximum Switching Pressure : 10 Pa
- Maximum Operating Pressure : 5000 Pa
- Maximum Operating Ambient Temperature : 85 °C
- Maximum Adjustment Pressure : 200 Pa
- Brand : Honeywell
- Regulatory Approvals : CE Watt
- Pressure Type : Differential
- Electrical Connection : AMP connectors; 6.3 x 0.8; DIN 46244 or screw terminals
