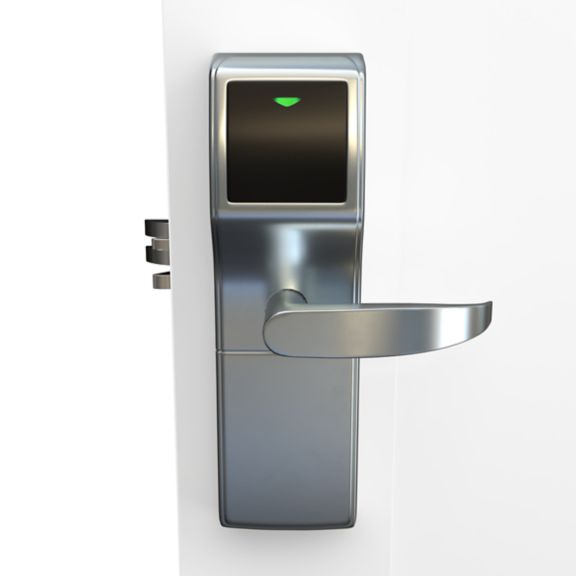

Trillium 1.0 Lock

Designed for today’s modern aesthetics, Onity’s Trillium lock is available in a stylish one-piece module design with a low profile reader, RFID and optional Bluetooth® Low Energy (BLE) configurations. Trillium locks can be operated using Onity’s DirectKey™ technology enabling guests to use an approved smartphone app to securely download their assigned key for easy access to controlled areas.

• Simple to use
• Ideal for retrofit and new installation applications
• Compatible with Onity OnPortal™ system software
• Lock LEDs indicate lock status, including low
• battery level
• Powered by four AA batteries with a two year
• normal life
• Mobile access compatible
• Provides a wide range of design options for
• finish and levers
• DirectKey-ready: Optional on-board DirectKey
• module provides secure wireless communication of
• credentials from a user’s smartphone to a locking
• device via Bluetooth Smart communications
• Supports MIFARE Classic®, MIFARE Plus®, MIFARE
• Ultralight®, and MIFARE Ultralight C cards
• Reading technology: contactless RFID (ISO14443A,
• NFC)
• Multiple opening devices available: cards,
• wristbands, keychains, etc.
• Non-volatile memory: records last 500 openings
• including date, time and card used
• Programmable to customer needs (meeting rooms,
• offices, housekeeping, etc.)
• Corrosion-treated for normal atmospheric conditions
• Special weather kits for outdoors
• NXP CRYPTO1 or AES-128 card encryption

• FCC, CE, NOM, ANATEL, RoHS, REACH, ISO 14443 A, NFC
