I/O Modules

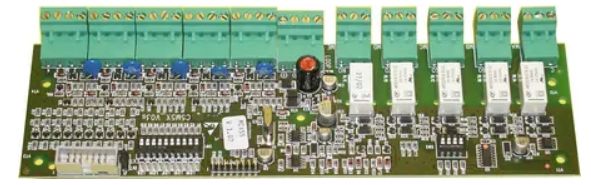

MCX Addressable Input/Output Module

The Addressable Input, Output Module cards includes 5 monitored input modules and 5 relay outputs (30V DC-1A). This cards are delivered with end-of-line resistors for the 5 inputs.

The Addressable Input, Output Module cards includes 5 monitored input modules and 5 relay outputs (30V DC-1A). The cards are delivered with end-of-line resistors for the 5 inputs. Each circuit has a micro selector for disarming, a led and an output for reporting the status to an external led. The connection terminals of this cards are removable.

Certifications:
  • CPD Certified

Others

  • LED Current
    • 5mA @ 24Vdc
  • Maximum Power Consumption
    • 1.7mA
  • Maximum Output Current
    • 2A at 30Vdc
  • Minimum Operating Humidity
    • 10 percentage humidity non condensing
  • Minimum Operating Ambient Temperature
    • -10°C
  • LED Circuit-Status Indicators
    • Yes
  • Number of Outputs
    • 5
  • Mounting Type
    • Supplied as a PCB allowing installation in to other equipment housings
  • Brand
    • Morley-IAS
  • Number of Inputs
    • 5
  • Addressing Style
    • DIP switch

Others

  • LED Current
    • 5mA @ 24Vdc
  • Maximum Power Consumption
    • 1.7mA
  • Maximum Output Current
    • 2A at 30Vdc
  • Minimum Operating Humidity
    • 10 percentage humidity non condensing
  • Minimum Operating Ambient Temperature
    • -10°C
  • LED Circuit-Status Indicators
    • Yes
  • Number of Outputs
    • 5
  • Mounting Type
    • Supplied as a PCB allowing installation in to other equipment housings
  • Brand
    • Morley-IAS
  • Number of Inputs
    • 5
  • Addressing Style
    • DIP switch
  • LED Circuit-Status Indicators : Yes
  • Number of Outputs : 5
  • Mounting Type : Supplied as a PCB allowing installation in to other equipment housings
  • Brand : Morley-IAS
  • Number of Inputs : 5
  • Addressing Style : DIP switch
  • LED Current : 5mA @ 24Vdc
  • Maximum Power Consumption : 1.7mA
  • Maximum Output Current : 2A at 30Vdc
  • Minimum Operating Humidity : 10 percentage humidity non condensing
  • Minimum Operating Ambient Temperature : -10°C
SKU
Description
alt
MCX-55M
Addressable Input/output Module, 5 Input, 5 Relay Output, 30V DC
