Wall Switches

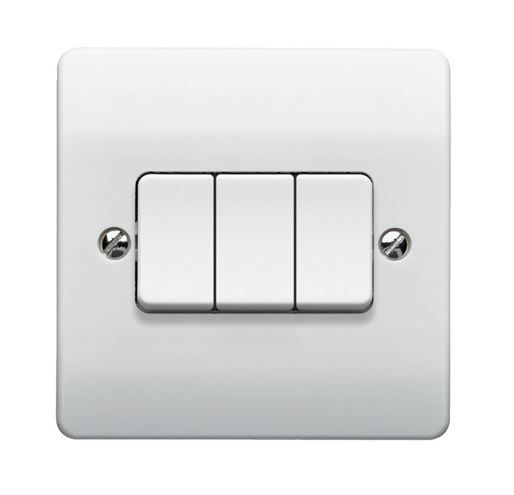

Logic Plus™ Plateswitch 3 Gang

Logic Plus™ collection offers Plateswitch. These Plateswitch are available in single pole range with Neon locator.

Logic Plus™ plateswitches are designed to blend in with the decor, whilst complementing a wide range of other MK wiring devices. They are designed for easy installation in plaster depth boxes and are suitable for controlling lighting circuits in domestic, commercial and industrial applications. A textured, polycarbonate moulding allowing the glow of the neon to be seen at almost any angle. Designed to complement the Logic Plus 3 gang plateswitches. It is easy to install in existing locations. For 3 gang applications using a 25mm deep box simplifies wiring.

Features & Benefits:
  • Plate Switch, 3 Gang, 2 Way, 10A Current rating
  • Terminal capacity 4 x 1mm, 4 x 1.5mm, 3 x 2.5mm or 1,6mm
  • Positive switch action
  • Does not need to e de-rated when used on fluorescent loads Printed terminal markings on grey rear moulding for clearer identification
  • Only one size screwdriver required for installation
  • Flush mounting box = 861ZIC
  • Flush mounting box = 866ZIC, for extra wiring space
  • Surface mounting box = K2160WHI
  • Surface mounting box = k2140, for extra wiring space
Certifications:
  • Confirms to IEC60669-12017 / BS EN60669-1, 2018
  • Low Voltage Directive 2014/35/EU
  • RoHS Directive 2011/65/EU
  • Amendment RoHS Directive (EU) 2015/863
  • CE Marked
  • IP Rating = IP2XD

Others

  • Fixing Centers
    • 60.3 millimetre
  • Brand
    • MK Electric

Others

  • Fixing Centers
    • 60.3 millimetre
  • Brand
    • MK Electric
  • Brand : MK Electric
  • Fixing Centers : 60.3 millimetre
SKU
Description
alt
K4873RPWHI
10A 3G SP 2-way Plateswitch
