Gamewell-FCI Elevate Remote Annunciator Display
Discontinued
The GFP-RLD is a compact, 5 touchscreen remote annunciator compatible with Gamewell-FCI Elevate™ platform fire alarm control panels
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
This product has been discontinued.
Honeywell will provide product support until

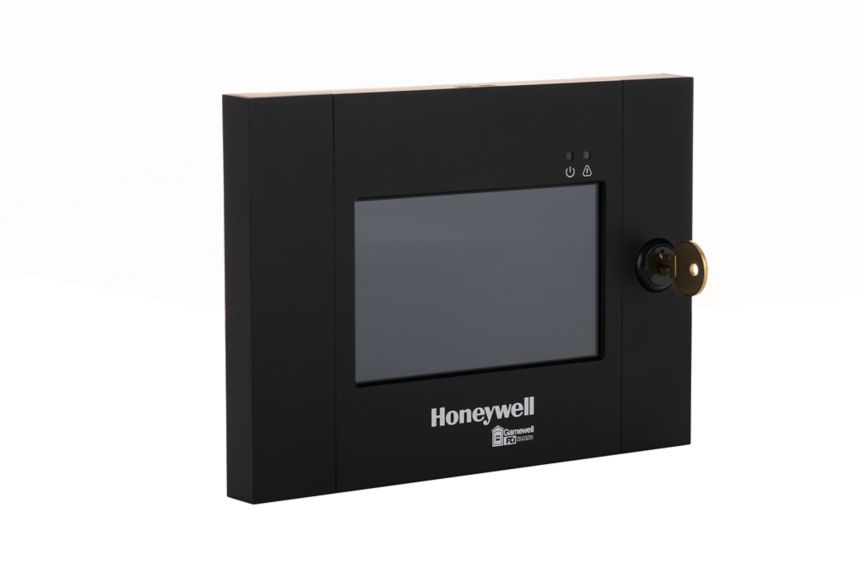

The GFP-RLD is a touchscreen remote annunciator designed specifically for fire alarm control panels on the Gamewell-FCI Elevate™ Platform.
It provides the control panel with a remote, serially connected display for system status, point information, and event counters. The 5-inch touchscreen presents two events simultaneously and allows scrolling through up to 50 of the highest-priority events in the system. The GFP-RLD also provides operator control through six programmable touch buttons supporting functions such as Acknowledge, Silence, Reset, and Drill.
Features & Benefits:- Five inch high-definition touchscreen display.
- Mimics the Main Panel Display
- Six programmable buttons, each with a descriptor/label, status indicator and configurable action (on/off, disable.enable)
- Ability to filter events displayed on the GFP-RLD by zone.
- Ability to map the GFP-RLD dedicated to a releasing zone where the label, state of the releasing zone and the countdown timer (where applicable) is displayed
- UL Listed: S1949
- FM Approved: FM26US0098
- CSFM: 7120-1703:0513
- FDNY Approved
- Certified for Seismic applications in
- accordance with IBC 2024
- OSHPD Approved
