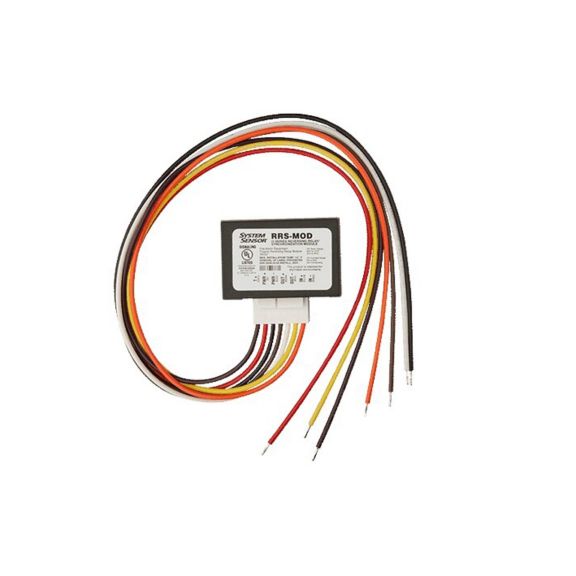

    RRS-MOD Reversing Relay and Synchronization Module

    Reversing relay and synchronization modules enhance the operation of 2- and 4-wire i³™ Series detectors equipped with a sounder.

    Aperçu

    Reversing relay and synchronization modules enhance the operation of 2- and 4-wire i³™ Series detectors equipped with a sounder. Modules include a Velcro® attachment for easy installation into the fire alarm control panel cabinet. A quick connect harness and color-coded wires simplify connections. The module’s design is flexible to accommodate virtually any application.

    Reversing relay and synchronization modules are compatible with both 2- and 4-wire i³ Series detectors operating over 12V and 24V systems. Modules can be used with either bell/alarm, alarm relay, or NAC outputs. A field-selectable switch accommodates both coded and continuous alarm signals. To meet fire alarm requirements, the reversing relay and synchronization modules activate all i³ sounders on a loop when an individual sounder alarms. Additionally, they synchronize the output of the i³ sounders, regardless of whether the panel’s alarm signal is continuous or coded, to ensure a clear alarm signal.

    Features & Benefits:
    • Compatible with 2- and 4-wire i³ detectors equipped with a sounder
    • Activates all i³ sounders on a loop when one alarms
    • Synchronizes all i³ sounders on the loop for a clear alarm signal
    • Usable with bell/alarm, alarm relay, or NAC outputs
    • Has a field-selectable switch to accommodate both coded and continuous alarm signals
    • Allows i³ detector silencing from the panel or keypad
    • Operates on 12 and 24V systems
    • Simplifies connections with quick connect harness and color-coded wires
    Certifications:
    • UL Listed S3705
    • FM Approved 3018895
    • CSFM: 7300-1653:165
    Caractéristiques

    Autres

    • Brand
      • Farenhyt
      • System Sensor
    • Product Type
      • Reversing Relay Sync Module
      • Synchronization Module

    Autres

    • Brand
      • Farenhyt
      • System Sensor
    • Product Type
      • Reversing Relay Sync Module
      • Synchronization Module
    • Brand : Farenhyt|System Sensor|
    • Product Type : Reversing Relay Sync Module|Synchronization Module|
