    Zone Valves

    VN Series Zone Valves

    The VN Series Zone Valves and Actuators are 2 or 3-way ball valves, factory assembled with electronic rotary fail-in-place or electronic-fail-safe actuators.

    Overview
    The VN Series Zone Valves and Actuators are space saving compact 2 or 3-way ball valves, factory assembled and tested with electronic rotary fail-in-place or electronic-fail-safe actuators. Actuators provide 2-position or modulating control (with position feedback) of hot or chilled water with up to 50% glycol in residential and commercial HVAC equipment. Optimized for both cooling and heating in Fan coil units (FCU), Variable air volume (VAV), Unit heaters, Reheat coils, Radiators and Chilled beam.Features & Benefits:
    • 2 or 3-way valve configurations
    • Available in ½, ¾ and 1 inch sizes with internal (female) NPT connections
    • Modulating (VN3) & 2-Position (VN8) (24Vac/dc, 220Vac, 110Vac)
    • Position feedback (0-10Vdc) on modulating models
    • Fail-in-place & Electronic Fail-Safe actuators
    • Open/Close time: < 40 Sec, E-fail Safe: < 15 Sec
    • IP54 enclosure rating
    • Class II electric shock protection
    • Factory fitted & tested valve and actuator assemblies
    • Suitable Medium - Cold, hot water, or up to 50% glycol
    • Five Year Limited Warranty
    Certifications:
    • UL/cUL
    • UL 60730-1
    • UL 60730-2-14
    • CSA E60730-1:15
    • CSA E60730-2-14
    Specifications

    Others

    • Brand
      • Alerton

    Others

    • Brand
      • Alerton
    • Brand : Alerton
    Name
    Date
    Size
    No Resources documents tagged to this product
    An error occurred . Please try after sometime

    _blank

    Actuator_Control_Signal@actuator_control_signal|Actuator_Enclosure_Rating@actuator_enclosure_rating|Actuator_Feedback@actuator_feedback|Actuator_Included@actuator_included|Actuator_Motion@actuator_motion|Actuator_Timing@actuator_timing|Actuator_Torque@actuator_torque|Actuator_Type@actuator_type|Actuator_Voltage@actuator_voltage|Application@application|Control_Type@control_type|Controlled_Medium@controlled_medium|Controlled_Medium_Restrictions@controlled_medium_restrictions|Electrical_Connection_Type@electrical_connection_type|Flow_Coefficient@flow_coefficient|For_Use_With@for_use_with|Leakage_Rating@leakage_rating|Manual_Operation_Type@manual_operation_type|Maximum_Ambient_Temperature_Rating@maximum_ambient_temperature_rating|Maximum_Medium_Temperature@maximum_medium_temperature|Minimum_Medium_Temperature@minimum_medium_temperature|Number_Of_Auxiliary_Switches@number_of_auxiliary_switches|Valve_Ball_Material@valve_ball_material|Valve_Body_Material@valve_body_material|Valve_Body_Pattern@valve_body_pattern|Valve_Connection_Type@valve_connection_type|Valve_Flow_Characteristic@valve_flow_characteristic|Valve_Pressure_Rating@valve_pressure_rating|Valve_Seal_Material@valve_seal_material|Valve_Size_Diameter@valve_size_diameter|Valve_Stem_Material@valve_stem_material|Valve_Trim@valve_trim|Valve_Type@valve_type

    Filters

    Product Number
    Part Number
    Description
    Leaf Category
    Thumbnail
    Add to list

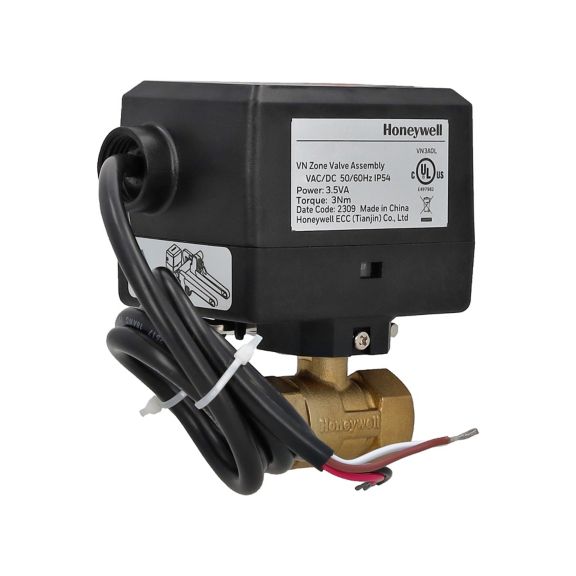

    VN32A15NT0L
    Zone Valve Assembly - 12 in. NPT - 2-way - 2.3 Cv - 24 Vacdc - Modulating - Fail-in-place
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VN32A15NT0L-left
    VN32A15NT0L
    Zone Valve Assembly - 12 in. NPT - 2-way - 2.3 Cv - 24 Vacdc - Modulating - Fail-in-place
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VN32A15NT0L-left
    VN32A15NTEL
    Zone Valve Assembly - 12 in. NPT - 2-way - 2.3 Cv - 24 Vacdc - Modulating - Electronic Fail-safe Closed
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VN32A15NTEL-left-1
    VN32A15NTEL
    Zone Valve Assembly - 12 in. NPT - 2-way - 2.3 Cv - 24 Vacdc - Modulating - Electronic Fail-safe Closed
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VN32A15NTEL-left-1
    VN32A15NTFL
    Zone Valve Assembly - 12 in. NPT - 2-way - 2.3 Cv - 24 Vacdc - Modulating - Electronic Fail-safe Open
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VN32A15NTEL-left-1
    VN32A15NTFL
    Zone Valve Assembly - 12 in. NPT - 2-way - 2.3 Cv - 24 Vacdc - Modulating - Electronic Fail-safe Open
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VN32A15NTEL-left-1
    VN32A20NT0L
    Zone Valve Assembly - 34 in. NPT - 2-way - 3.7 Cv - 24 Vacdc - Modulating - Fail-in-place
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VN32A20NT0L-left
    VN32A20NT0L
    Zone Valve Assembly - 34 in. NPT - 2-way - 3.7 Cv - 24 Vacdc - Modulating - Fail-in-place
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VN32A20NT0L-left
    VN32A20NTEL
    Zone Valve Assembly - 34 in. NPT - 2-way - 3.7 Cv - 24 Vacdc - Modulating - Electronic Fail-safe Closed
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VN32A20NTEL-left-1
    VN32A20NTEL
    Zone Valve Assembly - 34 in. NPT - 2-way - 3.7 Cv - 24 Vacdc - Modulating - Electronic Fail-safe Closed
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VN32A20NTEL-left-1
    VN32A20NTFL
    Zone Valve Assembly - 34 in. NPT - 2-way - 3.7 Cv - 24 Vacdc - Modulating - Electronic Fail-safe Open
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VN32A20NTEL-left-1
    VN32A20NTFL
    Zone Valve Assembly - 34 in. NPT - 2-way - 3.7 Cv - 24 Vacdc - Modulating - Electronic Fail-safe Open
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VN32A20NTEL-left-1
    VN32A25NT0L
    Zone Valve Assembly - 1 in. NPT - 2-way - 6.6 Cv - 24 Vacdc - Modulating - Fail-in-place
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VN32A25NT0L-left
    VN32A25NT0L
    Zone Valve Assembly - 1 in. NPT - 2-way - 6.6 Cv - 24 Vacdc - Modulating - Fail-in-place
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VN32A25NT0L-left
    VN32A25NTEL
    Zone Valve Assembly - 1 in. NPT - 2-way - 6.6 Cv - 24 Vacdc - Modulating - Electronic Fail-safe Closed
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VN32A25NTEL-left-1
    VN32A25NTEL
    Zone Valve Assembly - 1 in. NPT - 2-way - 6.6 Cv - 24 Vacdc - Modulating - Electronic Fail-safe Closed
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VN32A25NTEL-left-1
    VN32A25NTFL
    Zone Valve Assembly - 1 in. NPT - 2-way - 6.6 Cv - 24 Vacdc - Modulating - Electronic Fail-safe Open
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VN32A25NTEL-left-1
    VN32A25NTFL
    Zone Valve Assembly - 1 in. NPT - 2-way - 6.6 Cv - 24 Vacdc - Modulating - Electronic Fail-safe Open
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VN32A25NTEL-left-1
    VN33A15NT0L
    Zone Valve Assembly - 12 in. NPT - 3-way - 3.7 Cv - 24 Vacdc - Modulating - Fail-in-place
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VN33A15NT0L-left
    VN33A15NT0L
    Zone Valve Assembly - 12 in. NPT - 3-way - 3.7 Cv - 24 Vacdc - Modulating - Fail-in-place
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-VN33A15NT0L-left
