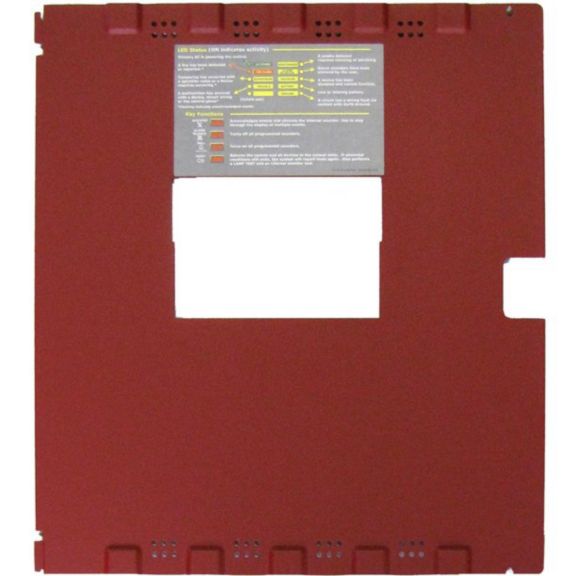

DP-9692 Dress Panel
DP-9692 dress panels are for use with Fire-Lite® MS-9200UDLS fire alarm control panels (FACPs). They mount to the inside of the cabinet and restrict access to the system wiring while allowing access to the key panel.
Overview
DP-9692 dress panels are for use with Fire-Lite® MS-9200UDLS fire alarm control panels (FACPs). They mount to the inside of the cabinet & and & restrict access to the system wiring while allowing access to the key panel. A ground strap must be connected between the stud on the inside of the dress panels and the ground stud in the backbox.
Installation Instructions
Name
Description
File Size
Date
Size
Dress Panel Product Installation Document
application/pdf 123.85 KB
5/8/2023
123.85 KB
