Air Quality Sensors

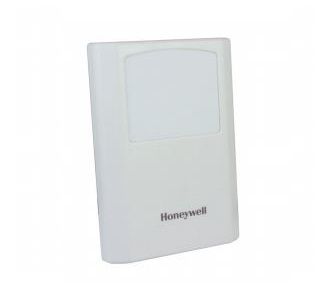

C7364 TVOC Sensor
The C7364 TVOC sensors use an advanced MEMS metal oxide semiconductor sensor to detect poor air quality. The sensor reacts quickly to a broad range of VOCs such as smoke, cooking odors, bio-effluence, outdoor pollutants and from human activities.
Overview
Honeywell C7364A are the TVOC Air Quality Sensor which uses an advanced MEMS metal oxide semiconductor sensor to detect poor air quality. The sensor reacts quickly to detect a broad range of VOCs such as smoke, cooking odors, bio-effluence, outdoor pollutants and from human activities. The sensor captures all VOC emissions that are completely invisible to CO2 sensors. The TVOC sensor emulates the human perception of air quality such as foul odors (stale) as compared to a CO2 sensor and even detects odorless, potentially hazardous substances such as carbon monoxide.
Features & Benefits:- Measures total VOCs
- High sensitivity and fast response
- Stable long-term operation
- 0 to 2000 ppm CO2 equivalent output signal
- Internal menu for easy setup
- Analog stepped output for relative air quality indication
- Linear output for logging and control
- CE
- RoHS
- FCC
- ICES
- Prop65
Specifications
Others
- Maximum Operating Ambient Temperature
- 50 degree Celsius
- Supply Voltage
- 20-28 voltage alternating current
- Minimum Operating Ambient Temperature
- 0 degree Celsius
- Overall Depth
- 29 millimetre
- Brand
- Honeywell
- Overall Height
- 119 millimetre
- Regulatory Approvals
- CE; RoHS; FCC; ICES; Prop65 Watt
- Overall Width
- 84 millimetre
Others
- Maximum Operating Ambient Temperature
- 50 degree Celsius
- Supply Voltage
- 20-28 voltage alternating current
- Minimum Operating Ambient Temperature
- 0 degree Celsius
- Overall Depth
- 29 millimetre
- Brand
- Honeywell
- Overall Height
- 119 millimetre
- Regulatory Approvals
- CE; RoHS; FCC; ICES; Prop65 Watt
- Overall Width
- 84 millimetre
- Maximum Operating Ambient Temperature : 50 degree Celsius
- Supply Voltage : 20-28 voltage alternating current
- Minimum Operating Ambient Temperature : 0 degree Celsius
- Overall Depth : 29 millimetre
- Brand : Honeywell
- Overall Height : 119 millimetre
- Regulatory Approvals : CE; RoHS; FCC; ICES; Prop65 Watt
- Overall Width : 84 millimetre
Others
Name
Description
File Size
Date
Size
Sales Sheet
Name
Description
File Size
Date
Size
IAQ Sensor Sell Sheet 01-00201
application/pdf 2.02 MB
5/19/2023
2.02 MB
Brochure
Name
Description
File Size
Date
Size
Installation Instructions
Name
Description
File Size
Date
Size
TVOC Wall Sensor Installation Instructions 31-00415
application/pdf 390.56 KB
5/8/2023
390.56 KB
TCVOC Duct Sensor Installation Instructions 31-00414
application/pdf 468.02 KB
5/8/2023
468.02 KB
Data Sheet
Name
Description
File Size
Date
Size
TVOC Sensor Specification Data 31-00394
application/pdf 548.83 KB
5/14/2023
548.83 KB
Name
Description
File Size
Date
Size
IAQ Sensor Sell Sheet 01-00201
application/pdf 2.02 MB
5/19/2023
2.02 MB
TVOC Sensor Specification Data 31-00394
application/pdf 548.83 KB
5/14/2023
548.83 KB
TVOC Wall Sensor Installation Instructions 31-00415
application/pdf 390.56 KB
5/8/2023
390.56 KB
TCVOC Duct Sensor Installation Instructions 31-00414
application/pdf 468.02 KB
5/8/2023
468.02 KB
Name
Description
File Size
Date
Size
TVOC Wall Sensor Installation Instructions 31-00415
390.56 KB
5/8/2023
TCVOC Duct Sensor Installation Instructions 31-00414
468.02 KB
5/8/2023
Product Number
SKU
Description
C7364A1016
Wall TVOC Air Quality Sensor, 20-28V ACDC, MEMS Metal Oxide Semiconductor VOC Sensor
SKU
Description
C7364A1016
Wall TVOC Air Quality Sensor, 20-28V ACDC, MEMS Metal Oxide Semiconductor VOC Sensor
