Current Sensors

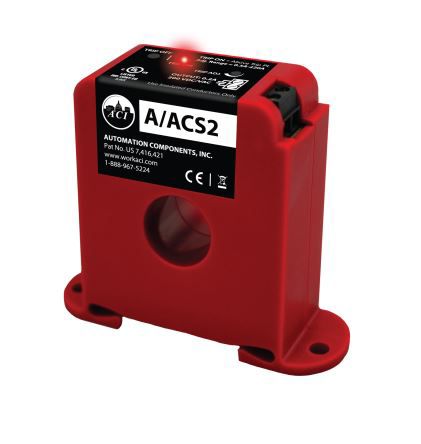

ACI Current Switch

ACI Current Switches are solid-state devices that operate when the sensed AC current level exceeds a fixed or adjustable trip point. They are solid-core with a fixed trip point. They are powered by monitored line.

Overview

Adjustable Current Switches are available in both solid and split-core versions which also includes a Patented 35 mm Din Rail mounting foot for easy installation in panel mount applications. The solid-core versions are a great choice for new installations or OEM applications in which cost sensitivity, lower trip points and environmental issues may be of concern. The split-core version of the current switches work great in retro t applications and for use on service technician’s vehicles since one part will work in most applications and can be easily installed without disconnecting any wires.

Features & Benefits:
  • Available in solid or split-core
  • Fixed or adjustable trip points
  • Switches AC or DC circuits
  • Status LED's
  • Integral DIN rail mount
  • Powered by monitored line
  • Pilot duty rated (A/CR Series)
Certifications:
  • UL File #E309723
  • CE Approved
  • RoHs Approved
Specifications

Others

  • Minimum Operating Humidity
    • 0 (Non-Condensing) Percentage
  • Maximum Operating Humidity
    • 95 (Non-Condensing) Percentage
  • Minimum Operating Ambient Temperature
    • -15 degree Celsius
    • 5 degree Fahrenheit
  • Maximum Operating Ambient Temperature
    • 104 degree Fahrenheit
    • 40 degree Celsius
  • Includes
    • DIN Rail Mounting Foot foot
  • Product Type
    • Current Switch Degrees Celsius
  • Brand
    • Alerton

Others

  • Minimum Operating Humidity
    • 0 (Non-Condensing) Percentage
  • Maximum Operating Humidity
    • 95 (Non-Condensing) Percentage
  • Minimum Operating Ambient Temperature
    • -15 degree Celsius
    • 5 degree Fahrenheit
  • Maximum Operating Ambient Temperature
    • 104 degree Fahrenheit
    • 40 degree Celsius
  • Includes
    • DIN Rail Mounting Foot foot
  • Product Type
    • Current Switch Degrees Celsius
  • Brand
    • Alerton
  • Minimum Operating Humidity : 0 (Non-Condensing) Percentage
  • Maximum Operating Humidity : 95 (Non-Condensing) Percentage
  • Minimum Operating Ambient Temperature : -15 degree Celsius|5 degree Fahrenheit
  • Maximum Operating Ambient Temperature : 104 degree Fahrenheit|40 degree Celsius
  • Includes : DIN Rail Mounting Foot foot
  • Product Type : Current Switch Degrees Celsius
  • Brand : Alerton
