Current Sensors

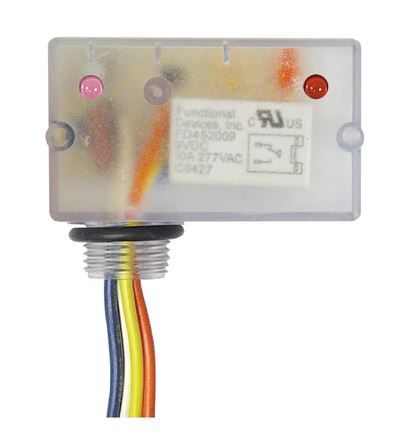

RIB Relay & AC Current Switch
RIB Relays & AC Current Switches by RIB Functional Devices Inc. are enclosed relay and AC switch combination responsible for making or breaking a circuit. They have internal sensors with contact status.
Overview
RIB Functional Devices Inc. brings Relay & AC Current Switches Combo which are a combination of relay and AC current switch having 24Vac Coil.These relay & AC current switches are responsible for making or breaking a circuit. They have internal sensors with contact status.These relay & AC switches are available in red housing as well as in NEMA 4X hosuing.
Features & Benefits:- Internal type sensor
- Fixed sensor threshold
- Sensor range of 0.25 to 20 Amps
- Solid state sensor feedback output
- Minimum of 10 million cycle of expected relay life
- C-UL, CE
- RoHS
- UL Listed
- UL916
Specifications
Others
- Maximum Operating Humidity
- 95 (Non-Condensing) Percentage
- Minimum Operating Ambient Temperature
- -30 degree Fahrenheit
- Output Signal
- 100 milliampere
- Minimum Operating Humidity
- 5 (Non-Condensing) Percentage
- Maximum Operating Ambient Temperature
- 140 degree Fahrenheit
- Switch Configuration
- SPST
- Brand
- Alerton
- Product Type
- Relay & AC Current Switch Degrees Celsius
Others
- Maximum Operating Humidity
- 95 (Non-Condensing) Percentage
- Minimum Operating Ambient Temperature
- -30 degree Fahrenheit
- Output Signal
- 100 milliampere
- Minimum Operating Humidity
- 5 (Non-Condensing) Percentage
- Maximum Operating Ambient Temperature
- 140 degree Fahrenheit
- Switch Configuration
- SPST
- Brand
- Alerton
- Product Type
- Relay & AC Current Switch Degrees Celsius
- Maximum Operating Humidity : 95 (Non-Condensing) Percentage
- Minimum Operating Ambient Temperature : -30 degree Fahrenheit
- Output Signal : 100 milliampere
- Minimum Operating Humidity : 5 (Non-Condensing) Percentage
- Maximum Operating Ambient Temperature : 140 degree Fahrenheit
- Switch Configuration : SPST
- Brand : Alerton
- Product Type : Relay & AC Current Switch Degrees Celsius
