Heat Detectors

ProtectoWire PHSC-190 Linear Heat Detector

The ProtectoWire Linear Heat Detectors are proprietary cables that detects heat anywhere along its length.

Overview

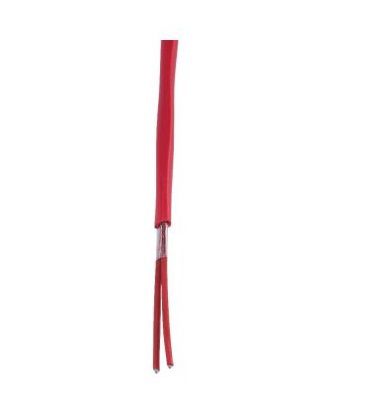

The ProtectoWire Linear Heat Detectors are proprietary cables that detects heat anywhere along its length. The sensor cable is comprised of two steel conductors individually insulated with a heat sensitive polymer. The insulated conductors are twisted together to impose a spring pressure between them, then wrapped with a protective tape and finished with an outer jacket suitable for the environment in which the Detector will be installed. ProtectoWire is a fixed temperature digital sensor and is therefore capable of initiating an alarm once its rated activation temperature is reached. At the rated temperature, the heat sensitive polymer insulation yields to the pressure upon it, permitting the inner conductors to move into contact with each other thereby initiating an alarm signal.

Features & Benefits:
  • Capable of initiating an alarm once its rated activation temperature is reached
  • Wrapped with protective tape and finished with an outer jacket
  • The Detector’s product range consists of four distinct types of cable
Certifications:
  • UL Listed 15.2m
  • FM 9.1m
Specifications

Others

  • Brand
    • System Sensor

Others

  • Brand
    • System Sensor
  • Brand : System Sensor
Others
Name
Description
File Size
Date
Size
Equipos especiales Catalog
application/pdf 530.24 KB
530.24 KB
Detector de Calor Lineal - Protectowire Data Sheet
application/pdf 431.31 KB
1/30/2024
431.31 KB
Protectowire Linear Heat Detector Data Sheet
application/pdf 363.9 KB
1/30/2024
363.9 KB
Heat Sensor Cable-Data Sheet
application/pdf 129.59 KB
6/1/2023
129.59 KB
Datasheets
Name
Description
File Size
Date
Size
Discontined - Protectowire Linear Heat Detector Datasheet
application/pdf 382.92 KB
5/14/2023
382.92 KB
Name
Description
File Size
Date
Size
Discontined - Protectowire Linear Heat Detector Datasheet
382.92 KB
5/14/2023
382.92 KB
Equipos especiales Catalog
530.24 KB
530.24 KB
Detector de Calor Lineal - Protectowire Data Sheet
431.31 KB
1/30/2024
431.31 KB
Protectowire Linear Heat Detector Data Sheet
363.9 KB
1/30/2024
363.9 KB
Heat Sensor Cable-Data Sheet
129.59 KB
6/1/2023
129.59 KB
Name
Description
File Size
Date
Size
Equipos especiales Catalog
530.24 KB
Detector de Calor Lineal - Protectowire Data Sheet
431.31 KB
1/30/2024
Protectowire Linear Heat Detector Data Sheet
363.9 KB
1/30/2024
Heat Sensor Cable-Data Sheet
129.59 KB
6/1/2023
Discontined - Protectowire Linear Heat Detector Datasheet
382.92 KB
5/14/2023
