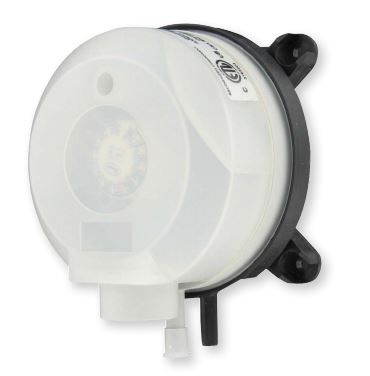

EDPS HVAC Differential Pressure Switch
EDPS HVAC Differential Pressure Switches are low cost device makes it an excellent solution in BAS and HVAC applications requiring duct control and monitoring
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
EDPS HVAC Differential Pressure Switches are designed for pressure, vacuum, and differential pressures and used for the applications air filter and ventilator monitoring, industrial cooling circuits, fire-protection damper control, ventilation duct monitoring, fan heater overheating protection, heat exchanger frost protection The dual scaled adjustment knob in inches water column and Pascal’s allows changes to the switching pressure to be made without a pressure gage. The EDPS is available with settings from 0.08 in w.c. (20 Pa) up to 16 in w.c. (4000 Pa). The silicone diaphragm and PA 6.6 body make the series EDPS ideal for use with air and other non-combustible gases. The compact size, adjustment knob
Features & Benefits:- Wide range of aaplication
- Adjustment knob changes switching pressure easily with a pressure gage reducing components for application
- Relay contact allows simple integration with DDC or building systems
- CE
- UL508
- CSA C22.2
- RoHS
Others
- Minimum Operating Ambient Temperature
- -20 degree Celsius
- -4 degree Fahrenheit
- Maximum Operating Ambient Temperature
- 140 degree Fahrenheit
- 60 degree Celsius
- Brand
- Alerton
- Switch Configuration
- SPDT
- Pressure Type
- Differential
- Pressure Sensor Type
- Differential
Others
- Minimum Operating Ambient Temperature
- -20 degree Celsius
- -4 degree Fahrenheit
- Maximum Operating Ambient Temperature
- 140 degree Fahrenheit
- 60 degree Celsius
- Brand
- Alerton
- Switch Configuration
- SPDT
- Pressure Type
- Differential
- Pressure Sensor Type
- Differential
- Minimum Operating Ambient Temperature : -20 degree Celsius|-4 degree Fahrenheit
- Maximum Operating Ambient Temperature : 140 degree Fahrenheit|60 degree Celsius
- Brand : Alerton
- Switch Configuration : SPDT
- Pressure Type : Differential
- Pressure Sensor Type : Differential
