Pressure Switches & Sensors

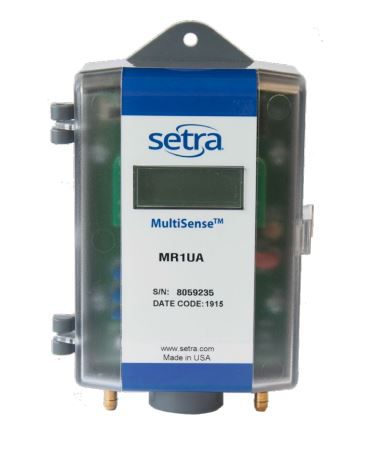

Multi-Sense® Pressure Transducer
Setra’s MultiSense™ Pressure Transducers are ideal products for any contractor, combining the flexibility of a multi-range with the performance of a single range sensor. It uses an IP67/NEMA 4 rated housing and has a conduit fitting for easy wiring.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Setra’s MultiSense™ Pressure Transducers are ideal products for any contractor, combining the flexibility of a multi-range with the performance of a single range sensor. It uses an IP67/NEMA 4 rated housing and has a conduit fitting for easy wiring, making it an ideal solution for any general HVAC application. The MR1 have 8 selectable ranges and 3 selectable outputs, easily adjustable on the job with a flip of a switch or jumper. Setra MR1 design gives the user total flexibility to make changes on the job site. The user has the option to choose the field configurable range, mounting (wall mount, duct mount or DIN Rail), output (mA or Volt) and engineering unit (W.C. or Pascals). This flexibility means that the contractor can use the MR1 for all of their needs.
Features & Benefits:- Field Configurable Duct Probe
- 4 Digit LCD Field Selectable Range
- Field Selectable Output
- Simple 5-Step Setup
- Field Accessible Push-Button Zero & Span
- Unregulated AC/DC Operation
- CE
- RoHS
Others
- Output Signal
- 4 - 20 milliampere
- Connection Size
- 3/16 inch
- Minimum Operating Ambient Temperature
- 0 degree Celsius
- 32 degree Fahrenheit
- Maximum Operating Ambient Temperature
- 122 degree Fahrenheit
- 50 degree Celsius
- Mounting Type
- Standard inch
- Connection Type
- Barbed
- Includes
- Duct Probe meter
- Brand
- Alerton
- Pressure Type
- Differential
Others
- Output Signal
- 4 - 20 milliampere
- Connection Size
- 3/16 inch
- Minimum Operating Ambient Temperature
- 0 degree Celsius
- 32 degree Fahrenheit
- Maximum Operating Ambient Temperature
- 122 degree Fahrenheit
- 50 degree Celsius
- Mounting Type
- Standard inch
- Connection Type
- Barbed
- Includes
- Duct Probe meter
- Brand
- Alerton
- Pressure Type
- Differential
- Output Signal : 4 - 20 milliampere
- Connection Size : 3/16 inch
- Minimum Operating Ambient Temperature : 0 degree Celsius|32 degree Fahrenheit
- Maximum Operating Ambient Temperature : 122 degree Fahrenheit|50 degree Celsius
- Mounting Type : Standard inch
- Connection Type : Barbed
- Includes : Duct Probe meter
- Brand : Alerton
- Pressure Type : Differential
