Thermostat Harness

The Elements thermostat is an intelligent programmable thermostat providing as much functional flexibility as it does design.

01-5010

RS485 Network adapter can be used to convert 4G to 2G network applications with or without door switch input using the adapter

03-9560 by INNCOM is a power supply assembly with 100 to 277V AC .

ST7 Plastic housings are used for covering ST7324 in circuit programmer tools.

The 277VAC power supply assemblies are used for e528 Thermostats.

The X07 universal relay packs provides five relay outputs used to control a variety of loads, such as fan coil units and light duty lighting and drape motor loads.

External inline power supplies with 262-301 power cable are provided for B578 modules.

Digital Addressable Lighting Interface (DALI) system designed for the needs of hospitality. The system provides more convenient lighting for guests with the sophisticated versatility. DALI system contain control for virtually any color of light.

The leading edge dimmers are ideal for circuits with tungsten, resistive, and inductive loads, including mains voltage incandescent lamps, halogen, and low-voltage lamps with a compatible electronic transformer.

The CHM-S functions as a doorbell, announcing visitors to the guestroom when the doorbell button on an external doorplate is pressed. This chime is typically used with an INNCOM by Honeywell DS12 or MODEVA system.

D454-F AC dimmers product is used with the INNCOM MODEVA, EVORA, Elements, and Designer Series to provide a range of lighting control features for the hotel room.

The RT-NET Modbus central interface modules allows daikin VRV units to communicate via Modbus with the INNCOM IRAS system.

The X485 is an FLN5 to serial interface PCBA designed for the X05B to connect to FLN5 RS485 networks.

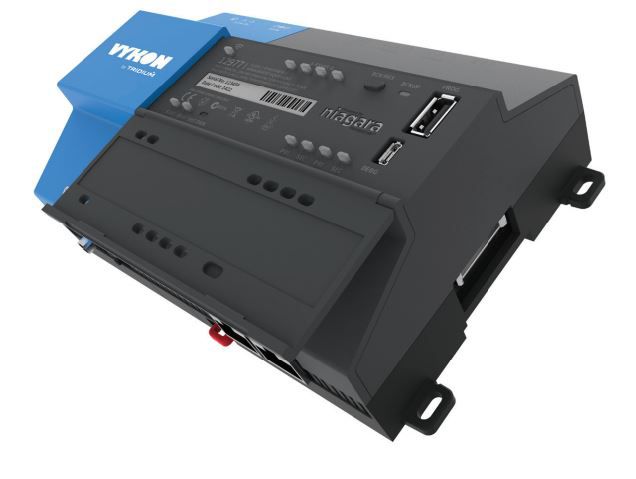

The JACE® 8000 is a compact, embedded IoT (Internet of Things) controller and server platform for connecting multiple and diverse devices and sub-systems.

The X06 relay pack extends or expands Smart Digital Thermostat functionality for the INNCOM by Honeywell IRAS.

The X05B/X06 provides 1 to 5 relay outputs that are used to switch a variety of loads, e.g., motor, pump, heater, and tungsten loads, as well as lighting loads.

Master Relays by INNCOM are designed to control lighting and switched outlet circuits in rooms.

A harness (INNCOM Part Number 62-1498) is provided with the X06 to tie AC Hot to the “COM” terminal of each relay on the X06.

RS485 Networked Application with/without door switch input using the adapter P/N 62-1532-B.12 cables, connect the RS485 incoming pair to two pin header H1 and the out-going pair going to the next thermostat to header H3.

The X08 drape controller is built to control third party drape and sheer products. This product can provide drape/sheer open, drape/sheer stop and drape/sheer close functionality.

203-204

The K595 is a battery powered passive infrared motion detector that is used to determine occupancy in the guestroom and peripheral-status reporting. The advantage of detecting occupancy leads to better management of energy usage and security.

The K594.RF is combined with a door switch monitor and smart digital thermostat, provides a powerful energy management tool that monitors guestroom occupancy patterns.

The X10 general purpose logic board provides a variety of I / O functionality for a variety of lighting, amenity, and HVAC applications.

INNCOM S541 Remote Thermistor switches are members of INNCOM’s Integrated Room Automation System (IRAS). These devices provide remote reporting of door switch status, temperature and humidity.

53-0183

53-0432

e528 Thermal Insulators are sub-assemblies used for housing components only.

2834344

The In circuit programmer kit is a supplementary device of INNCOM's system 4/5 family. It is used to program software into the inncom devices such as E428 and E528 thermostat/room controller, K492 or K592 IR lock transceiver and X529 HVAC server.

214-213

PS563 40VA NEMA transformer that powers 24V–277VAC circuits in HVAC systems.

CIPer™ Model 50 has you covered with expansion capabilities for up to 2,500 points. Built on the Niagara N4 Framework® and fully BACnet compliant, the CIPer Model 50 gives you a fully scalable solution for meeting both current and future needs.

51-9151 are double British gang glass panels for British Thermostat MODEVA Controllers.

03-7063 MODEVA System Controller is elegantly designed and easy to control temperature, lighting, drapes, and guest annunciation.

The 8 feet cables are used in decora box IR5 transceiver modules.

TXR505.R Remote IR5 Eye5 transceivers are designed for remote usage where the host product cannot be placed in an optimal location for IR communications.

The 36in cables are used in decora box IR5 transceiver modules.

This is a TBL-80 Tabletop Controller component in the Integrated Room Automation System.

The IR5 transceiver modules provides wireless IR communications platform. This modules are used for wireless IRAS HVAC, lighting, & drape control solutions. This modules can be added to the e528, e529 modules to provide the wireless IR functionality.

Regulated P.S. 110-240V, 12V DC/1A

TXR505.D IR5 Transceivers are repackaged TXR505 IR Transceivers which are designed to be mounted in an American Single gang box with a Decora mounting plate. They employs proprietary protocol and data rate.

The INNCOM PC-502 are wall mounted Protocol Converter modules which can be used to expand the range of an RF network or to provide the protocol gateway from INNCOM S5bus to RF protocol.

INNCOM Power Supply by Honeywell are used to meet the demands of HVAC, lighting, amenities, and network requirements. It is provided in a DIN rail mountable enclosure.

USB Protocol Converter, PC501, 0dB Radio, Programmed

The 24VAC power supply assemblies are used for e528 Thermostats.

INNCOM E7 Installation Kit for 100-277V AC Thermostat available in Black Onyx and Ice white color.

MODEVA British gang thermostat uses the 202-543 user interface and has a standard color frame. Thermostats use a capacitive touch and screw less user interface for a sleek, modern and highly configurable look.

The PS564.DIN SMPS by INNCOM are a part of Honeywell. They are universal input, 12V DC 1A output switch mode power supplies for apllications requiring 12V DC supply.

ES-1 (External Storage Key 1) is a companion memory module that is compatible with INNCOM’s e528 digital thermostat.

The L208 floor or desk lamp dimmer provides remote control of the lamp for the INNCOM by Honeywell MODEVA, EVORA, S-Series, and Designer Series systems.

INNCOM by Honeywell offers D254.FET 2 Channel MOSFET Dimmers to meet the needs of most lamp types available today. Trailing edge D254.FET dimmers are designed for incandescent, dimmable CFL and LED lamps.

The INNCOM by Honeywell L506 lamp socket dimmer is a compact, easy to use, easy to install trailing edge lamp dimmer designed for tungsten, CFL, and LED lamps.

The SL210 is a wireless, battery powered, configurable switch that can be placed anywhere in the guestroom to control a lamp.

The RT1 is an NTC which can be connected to e527, e528, or e529 thermostats or to select HVAC controllers such as X47 to provide remote temperature sensing.

RT4 RF Remote Humidity Sensors are a part of Integrated Room Automation System's S541 family of Remote Sensor Modules. These RF remote humidity sensors serves the purpose of monitoring guestroom temperatures and humidity.

The X05B general purpose logic board provides a variety of I / O functionality

62-9989

The MCM4 provides a gateway to the room low-voltage communication bus

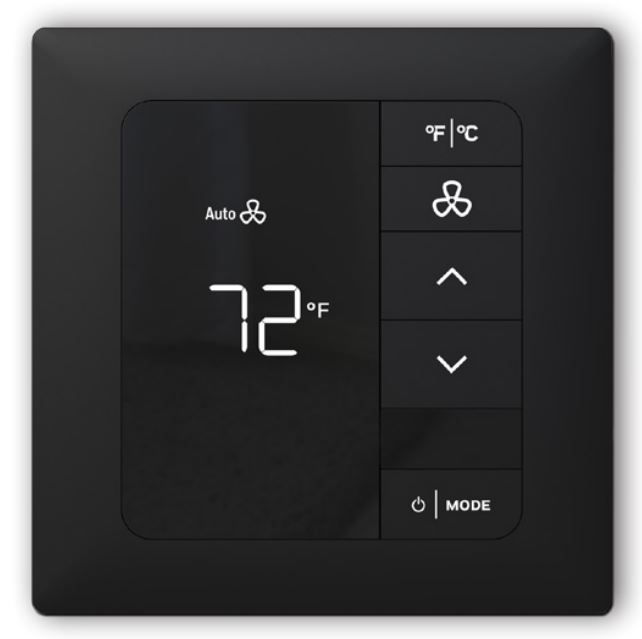

INNCOM E7 Thermostat is a direct digital control programmable thermostat that provides comfort and reduces in-room energy costs by up to 35% based on occupancy.

P1923662

Temperature Up Button is a high runner assembly for e528.

Standard PIR Housing Cover Assembly is part of INNCOM e528.4G thermostat HVAC controller. The standard PIR housing cover assembly manufactured in white housings.

The 02-9492 PCB assemblies are used for INNCOM ST7324 In circuit programmer (ICP) modules.

INNCOM by Honeywell brings STM32/STLink Programmers which are used for programming STM32 microcontrollers.

The CC Debuggers are typically used to program INNCOM RF devices. This debuggers are also be used to debug and program the flash of any of the RF System-on-Chip (SoC) devices from texas instruments.

ES‐1 (External Storage) is a companion memory module that is compatible with INNCOM’s E528 & E529 digital thermostats.

B576 is a 2 channel RS-485 Floor Bridge that provides the ability to use a RS-485 twisted pair wired network and can support up to 35 rooms per network segment.

PC-803 Protocol Converters are RF-Ethernet Protocol Converters typically installed in the guestroom or in other locations in proximity to the guestroom and again is used to bridge wired Ethernet to the room-level RF network.

TE100-S5P are 5-port, palm-sized 10/100Mbps NWay Ethernet Switches which allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidth, boost response time and satisfy heavy load demands.

POE Switch Modules based on the LTC 4267-1 combines an IEEE 802.3af compliant powered device (PD) interface with a current mode switching regulator, offering a complete power solution for powered PD for B574.

X47 Universal Relay Packs are designed for switching controls of various loads including fan coil units and light- duty general loads. These universal relay packs are available in low power, line power and line power versions.

The X05W controls the Williams FCU model ER006W2B403R182 from an INNCOM by Honeywell thermostat by modulating cooling, heating, and fan motors and using a switched relay output for heat enable.

INNCOM by Honeywell’s lamp controllers enable or enhance remote control capability for freestanding guestroom lighting while maintaining local switching.

The X06 relay pack extends or expands Smart Digital Thermostat functionality for the INNCOM by Honeywell IRAS. When coupled with the e527, e528, or e529, it provides the actuation for controls for a variety of HVAC, PTAC, and FCU applications.

Programs INNCOM by Honeywell MODEVA and TBL-80 Devices. It includes Cable 262-109.

MODEVA British Double Gang switch uses the 202-547 user interface and has a standard color frame. Switch uses a capacitive touch and screw less user interface for a sleek, modern, and highly configurable look.

INNtouch Corridor Annunciator Plates have been designed to display the preference selected by the guests from inside the rooms in hotels. These annunciator plates are installed in the corridors outside the guestrooms.

The INNCOM by Honeywell TXR505.R IR5 Transceiver is a repackaged TXR505 IR5 Transceiver, designed for remote usage where the host product cannot be placed in an optimal location for IR communications.

INNCOM Cable 03-5348 is 8ft cable with connnector type for X05b/X529 available upgrade for TXR505.R IR5 Transceiver.

The iRiS Valet application currently supports INNCOM thermostats, lighting control, curtains and shades, and Privacy and Make Up Room guest annunciation.

PIR Housing Cover Assembly can be ordered individually for a PIR and upgrade or RMA.

The INNCOM E7 Thermostat 100 to 277Vac power and HVAC signal harness.

Motion Detectors by INNCOM are used to create the most energy efficient HVAC controls system available for hotels today & offers a variety of configurations to additionally meet the interior design needs of the hotel.

INNCOM MODEVA series thermostats uses a capacitive touch and screwless user interface for a sleek, modern, and highly configurable look. They are available in horizontal or vertical formats and may be customized to match the switches.

Honeywell's INNCOM MODEVA series switches use a capacitive touch and screwless user interface for a sleek, modern, and highly configurable look.

The e527 is a thermostat designed for British gang box applications.

WEB-8000 controllers are compact embedded IoT (Internet of Things) devices and server platforms for connecting multiple diverse devices and subsystems.

The MCM4 Micro Controller Module provide the logic and S5 bus communications interface for the DS12.

201-918

The Honeywell’s Spectre offering is designed to provide a simple, yet effective, energy management solution that extends Honeywell’s energy savings to guestroom lighting thus maximizing guest comfort and the hotelier’s bottom line.

e528 Smart Digital thermostats offers temperature control, humidity monitoring, and motion detection for energy efficient management of the HVAC system. They also offer backlit LCDs and flexible options for installation, including built-in relays.

E529 can be used as a stand-alone thermostat as an in-room energy management system (EMS) as a hospitality IoT hub or as part of a networked property wide EMS.

This is a TBL-70 Tabletop Controller component in the Integrated Room Automation System. It is a multi-purpose device, configurable with 1 to 9 touch-capacitance sensors or dimmer bars.

The Honeywell’s INNCOM Integrated Room Automation system to provide the hotelier an intelligent integrated room automation system capable of connecting all of the guestroom devices to control room temperature, lighting drapes and amenities.

The X45B_X06 relay pack is a Honeywell Integrated Room Automation System component.

The MCM34 multipurpose module can facilitate several functions in INNCOM’s Integrated Room Automation System

The PC-503 is an IRAS commissioning tool.

JACE NC-8XXX are software licenses for 5 to 200 device core and 250 to 10,000 points.

Load Center Dimmers offers a variety of step dimmers to meet the needs of most lamp types available . They are ideal for circuits with tungsten, resistive and inductive load including main voltage incandescent lamps, halogen and low-voltage lamps

PC485/RS485 is a Communication Module. The PC485 provides Deep Mesh or FLN5 RS485 communications for INNCOM by Honeywell devices with auxiliary serial communications available.

S241 Magnetic Door Switches are sensors used to monitor the open and closed status of a door. A magnet mounted into the door connects the S241 reed switch contacts when the door is closed, signaling room occupancy status.

The Remote Thermistor family of thermistors provide remote reporting of door switch status, temperature, and humidity. It is available in several different models.

Niagara 4 supervisor maintenance agreements offer zero to unlimited network connections and 1, 3, or 5 year term limit (depending on agreement purchased).

51-9149B are British gang glass panels for British Thermostat MODEVA Controllers.

Purchased_Servers_INCOMM
