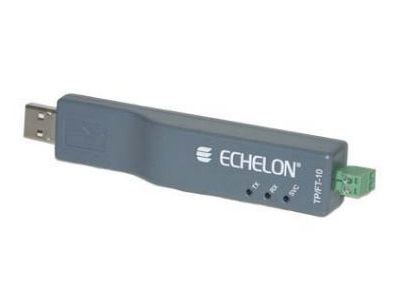

USB Network Interface

The U10 USB Network Interfaces are high performance LonWorks® interfaces for USB-enables PCs. These network interface connects to a TP/FT-10 Free Topology Twisted Pair (ANSI/CEA-709.3) LonWorks channel through a removable connector, and is fully compatible with link-powered channels.

The U10 interfaces are ideal for industrial control, building automation, process control, home automation and transportation applications. The interfaces feature easy-to-install, auto-configuring drivers for Microsoft Windows XP, 2000, and Server 2003, and are compatible with LNS 3 and Turbo Edition applications, including the LonMaker® Integration Tool.

A 60cm USB extension cable is included with both the U10 interfaces, to allow for easy connections in various laptop and desktop environments. An optional 3 meter cable accessory is available for the U10; this cable accessory allows easy network connections between the U10 and Lonpoint® Routers, the MPR-50 Multi-Port Router, and the numerous third-party devices that implement the 3.5mm mono phone plug standard.

• Low-cost USB to LON network interface facilitates integration and development
• Free topology twisted pair (TP/FT-10) LON channel support
• Highest possible network throughput and performance
• Rugged design, removable connectors
• Plug-and-play drivers for Windows XP, 2000, and Server 2003
• Functions as an LNS™ High Performance Network Interface when used with LNS 3 and LNS Turbo Edition
• Compatible with OpenLDV™ applications and the LonScanner™ Protocol Analyzer

• CE
• UL
• cUL
• TUV
