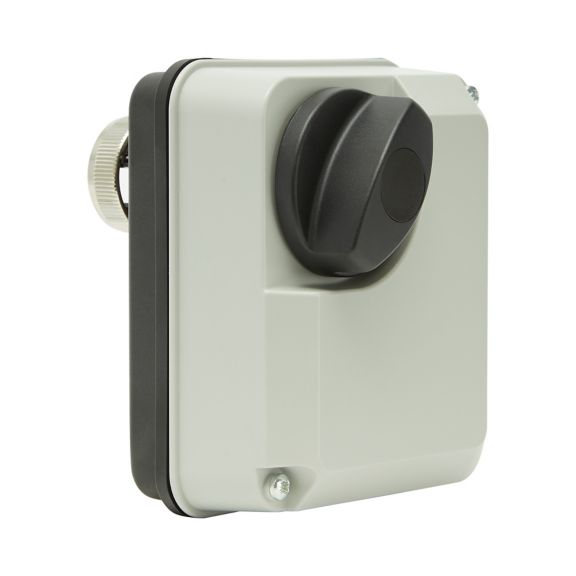

ML7430/ML7435 Series 400N Short Stroke Linear Valve Actuator

The ML7430E Electric Linear Actuators are designed to provide modulating control in closed control loops together with the small linear valves V5832B/V5833A (DN25...DN40) and V5825B/V5872B for high-differential pressure. These valve-actuator combinations are suitable especially for integration into compact or conventional stations for direct or indirect district heating connections, air handling units and roof top units for zone control, and domestic hot water applications. The actuators are microprocessor-controlled for exact positioning. The direction of movement is reversible. The actuators are equipped with a manual operator. Manual operation is possible only after the power supply has been switched off or disconnected. It should be used only to check the valve operation. To operate, turn the manual operator knob clockwise to move the stem downward and counter clockwise to move the stem upward.

• 0 to 10 VDC / 2 to 10 VDC signal input
• Fast run-time & No calibration
• Low power consumption
• Quick and easy installation
• No separate linkage required
• Synchronous motor & Force-limiting end switches
• Manual operator
• Direct / reverse action adjustable
• Maintenance-free

• CE
