Variable Frequency Drives

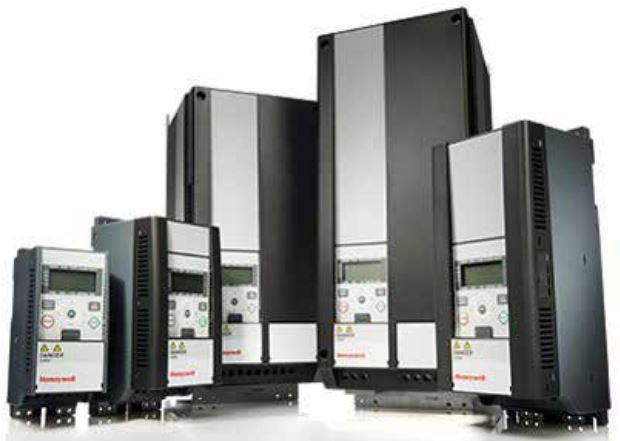

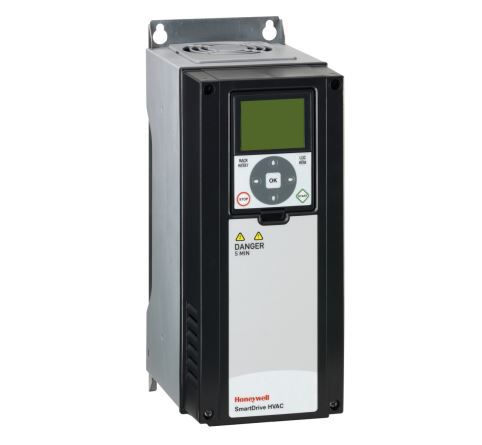

SmartVFD HVAC402 Variable Frequency Drive
SmartVFD HVAC402 Variable Frequency Drive used for induction and permanent magnet motors with built-in RFI filters and are compliant with EMC and LVD.
Overview
SmartVFD HVAC402 Variable Frequency Drives has only one version of Control Board.It has composition of 6 Digital inputs, 2 Analogue inputs, 1 Analogue output, 1 Digital output, 2 Relay outputs, RS-485 Interface. These drives provide step less speed control for various applications like Pumps, Fans, and Compressors.
Features & Benefits:- Programmable Start/Stop and Reverse signal logic
- Motor pre-heat
- Reference scaling
- DC-brake at start and stop
- Programmable U / f curve
- For EMC : EN61800-3, category C2
- For Safety : EN61800-5
