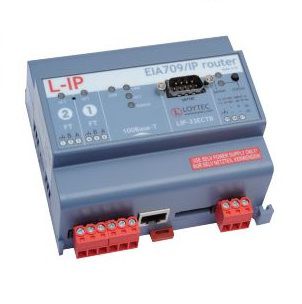

IP-852 Router
IP-852 Routers are connects twisted pair channels (TP/FT-10 or TP/XF-1250) with the Ethernet/IP channel (IP-852) in LonMark systems and support for operation behind NAT routers and firewalls
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
L-IP routes CEA-709 packets through an IP based network such as a LAN (Ethernet), an Intranet, or even the Internet. The L-IP connects to the IP network via a 100Base-T Ethernet port. In order to provide optimal router configurations, the L-IP is available in four different versions providing either 4 x TP/FT-10, 2 x TP/FT-10, 1 x TP/FT10, or 1 x TP/XF-1250. Every L-IP supports the operating modes “Smart Switch Mode” and “Configured Router Mode”. Beside the router functionality, the L-IP Routers provide outstanding capabilities for network diagnostic and analysis. They allow the LPA (LOYTEC Protocol Analyzer) transparent access to the twisted pair channels on the device via Ethernet/IP. This feature can be used in a local Intranet or via the Internet. The integrated CEA-852 Configuration Server can manage up to 100 IP-852 devices. The configuration is done through the built-in Web interface
Features & Benefits:- Routes packets between TP/FT-10 or TP/XF-1250 channels and Ethernet/IP (IP-852)
- Compliant with CEA-709, CEA-852, and ISO/IEC 14908-1 standard (LonMark System)
- Supports Configured Router mode, Smart Switch mode, and Repeater mode
- Built-in CEA-852 configuration server for up to 100 members
- Easy installation, Auto-NAT, roaming, DHCP
- Remote LPA support with LPA-IP
- Integrated web server for device and IP-852 configuration
- Built-in enhanced communication test for IP-852
- Network diagnostic LEDs
- CEA-709
- CEA-852
- ISO/IEC 14908-1 s
Others
- Overall Depth
- 60 Millimeter-PRD
- Supply Voltage
- 12-35
- Overall Width
- 159 Millimeter-PRD
- Overall Height
- 100 Millimeter-PRD
- Brand
- Honeywell
- For Use With
- IP-852 Devices volt
- Regulatory Approvals
- CEA-709; CEA-852; ISO/IEC 14908-1 s Watt
- Communications Protocol
- Ethernet (100Base-T); LonMark IP-852; HTTP; FTP
Others
- Overall Depth
- 60 Millimeter-PRD
- Supply Voltage
- 12-35
- Overall Width
- 159 Millimeter-PRD
- Overall Height
- 100 Millimeter-PRD
- Brand
- Honeywell
- For Use With
- IP-852 Devices volt
- Regulatory Approvals
- CEA-709; CEA-852; ISO/IEC 14908-1 s Watt
- Communications Protocol
- Ethernet (100Base-T); LonMark IP-852; HTTP; FTP
- Overall Depth : 60 Millimeter-PRD
- Supply Voltage : 12-35
- Overall Width : 159 Millimeter-PRD
- Overall Height : 100 Millimeter-PRD
- Brand : Honeywell
- For Use With : IP-852 Devices volt
- Regulatory Approvals : CEA-709; CEA-852; ISO/IEC 14908-1 s Watt
- Communications Protocol : Ethernet (100Base-T); LonMark IP-852; HTTP; FTP
