PWM To Analog Output Converter
The PWM to Analog Output Converter converts a single pulse-width modulated input to an analog output.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.

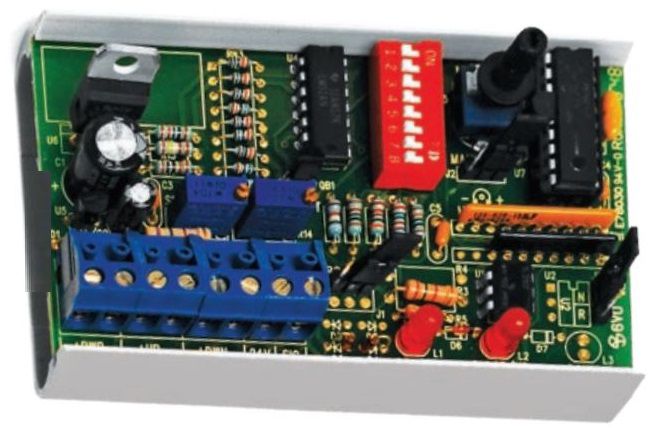

The PWM to Analog Output Converter converts a single pulse-width modulated input to an analog (voltage or current) output. A timed contact or solid state closure is converted to a linear analog output signal with 255 steps of resolution. The last output signal is held until the PTA/2 receives the end of the next pulsed input signal. The PTA/2 output will not wrap around if an excessively long input pulse is received. The input signal is optically isolated and can accept either positive or negative polarity. Ten pre-set analog output signal spans are DIP switch selectable for PTA. In addition, the span and o-ffset potentiometer off¬er maximum user adjustment of the output signal and seven input pulse rates are jumper selectable (between Version 1 and 2) for PTA2. The PTA2 includes triac adapter circuitry (jumper selectable) for a triac input.
Features & Benefits:- Pulse to Analog Transducer
- Interface to Variable Speed Pump Drive Control
- Interface to Variable
- Frequency Fan Drive Control
- Interface to Electric Actuator
- Duty Cycle to Analog Control
- Digital to Analog Conversion
- RoHS2
- WEEE
