Air Velocity Sensors

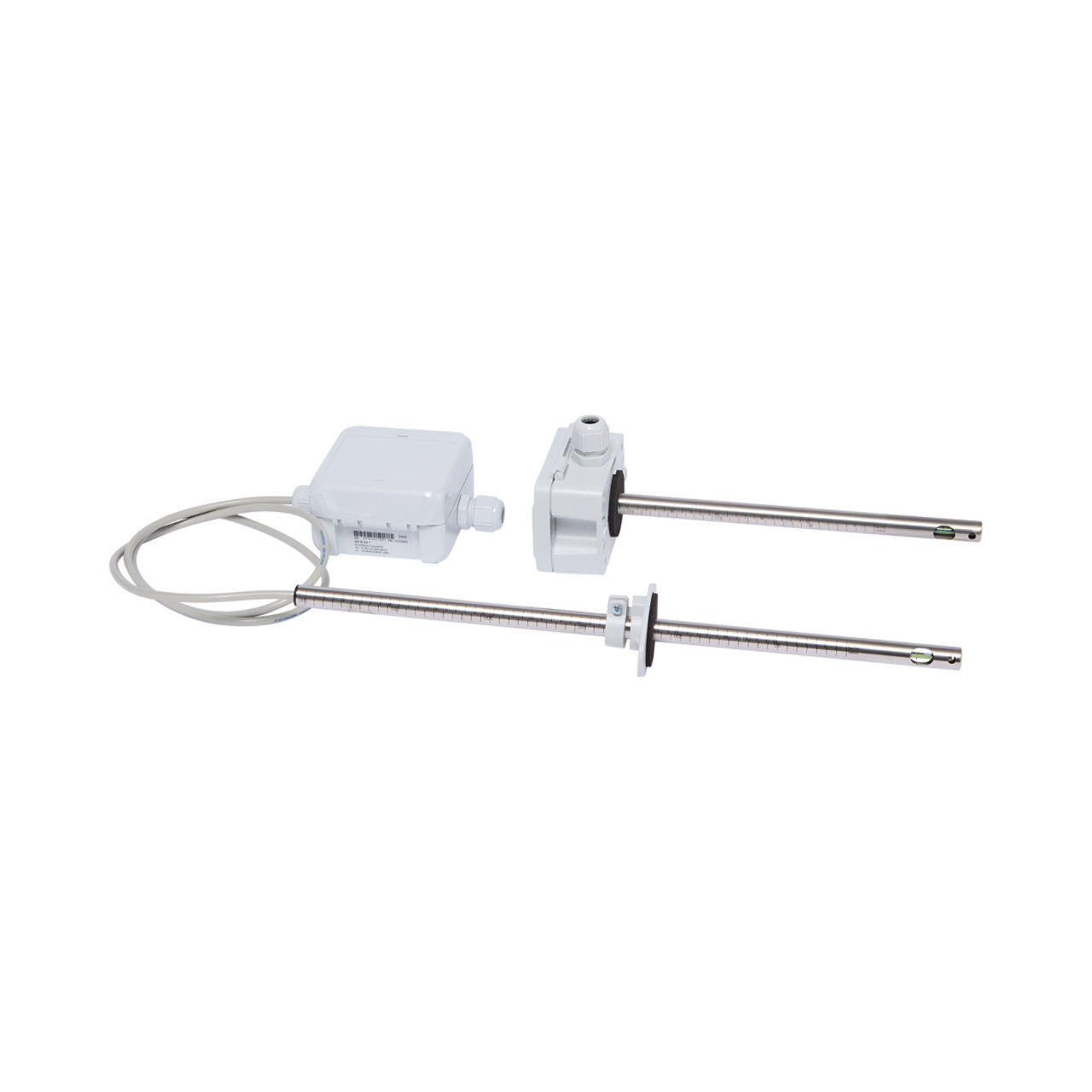

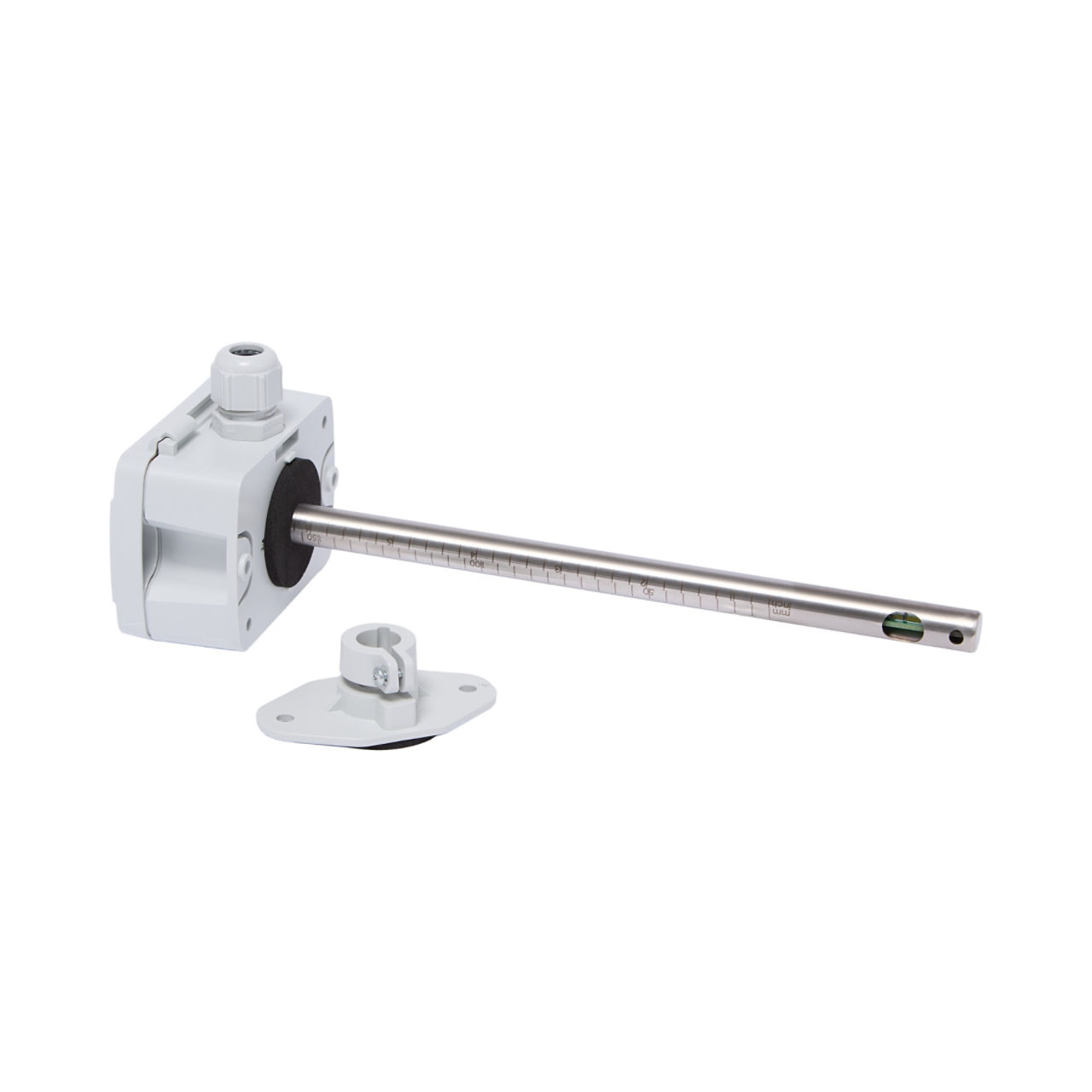

AV-D-10 Air Velocity Transmitter
Duct-Mounted Air Velocity Transmitters are designed for highly accurate measurement of air velocity up to 20 m/s (2000 ft/min).
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Duct-Mounted Air Velocity Transmitters are designed for highly accurate measurement of air velocity up to 20 m/s (2000 ft/min). Duct-Mounted Air Velocity Transmitters feature a thin-film sensor which operates according to the hot-film anemometer principle. The mounting flange permits a continuous adjustment of immersion depth at the duct. The output signal, measuring range, and response time can be adjusted by shifting a jumper on the circuit board. These air velocity transmitters are suitable for use in all systems capable of accepting 0 to 10 VDC inputs and are ideal for accurate and reliable measurement in building automation and ventilation applications.
Features & Benefits:- Highly accurate measurement of air velocities of up to 20 m/s (2000 ft/min)
- Mounting flange permits continuous adjustment of immersion depth at duct
- Response time, measuring range, and output signal (0 to 10V / 4 to 20 mA) can all be independently reset by shifting jumpers on the circuit board
- Self-compensation for changes in air temperature
- CE
