Temperature & Humidity Transmitters

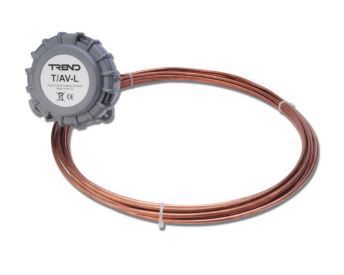

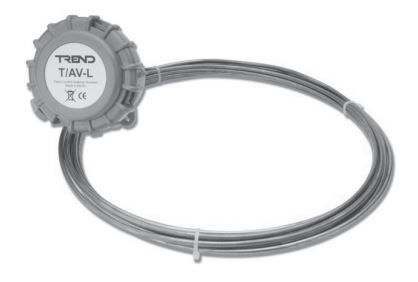

T/AV Averaging Temperature Sensor
Trend Averaging Temperature Sensor for HVAC duct applications where point measurement is inadequate.
Overview
Trend Averaging Temperature Sensor for HVAC duct applications where point measurement is inadequate. Temperature is sensed along entire length of the flexible copper tube by sensing element with a PT100 type characteristic. 100mm length of rigid tube and adjustable mounting plate allows standoff to clear duct insulation. Electronics mounted in weatherproof housing provide 4 to 20 ma output.
Features & Benefits:- PR100 type accuracy
- Fixing clips included
- Temperature sensed along entire length of tube
Specifications
Others
- Maximum Operating Ambient Temperature
- 110
- Minimum Operating Ambient Temperature
- -10
- Brand
- Trend
- Mounting Type
- Air Duct inch
- Air Duct inch
Others
- Maximum Operating Ambient Temperature
- 110
- Minimum Operating Ambient Temperature
- -10
- Brand
- Trend
- Mounting Type
- Air Duct inch
- Air Duct inch
- Maximum Operating Ambient Temperature : 110
- Minimum Operating Ambient Temperature : -10
- Brand : Trend
- Mounting Type : Air Duct inch|Air Duct inch
Product Number
SKU
Description
SENTO-0006001
TAV-S Duct 3.5m Averaging Temperature Sensor, -10…110 degC, 4-20mA
SKU
Description
SENTO-0006001
TAV-S Duct 3.5m Averaging Temperature Sensor, -10…110 degC, 4-20mA
