    Submeters

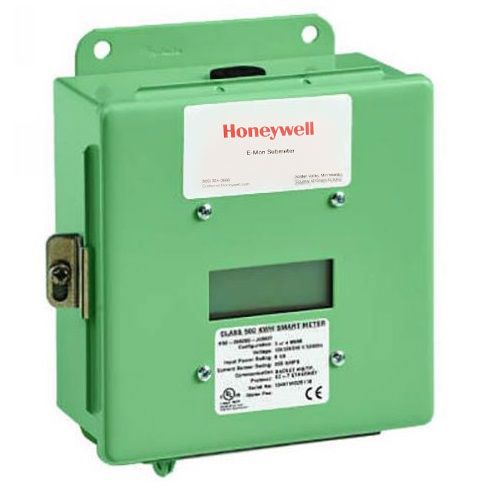

    Honeywell E-Mon™ Class 2000 Green Pulse Meter

    Green class submeter with CO2 & carbon footprint data

    Overview

    E-Mon Green Class 2000 meters display cumulative kWh and real-time kW load. In addition, these meters allow the user to enter their local cost per kWh to provide accurate to-date energy costs and projected hourly costs based on the metered load. This meter is supplied standard in a green JIC steel enclosure and is optionally available in a gray NEMA 4X outdoor enclosure or MMU configuration for installation in MMU (Multiple Meter Unit) enclosures.

    Features & Benefits:
    • Direct-read two-line alpha-numeric LCD display without multiplier displays cumulative kWh, peak demand with date & time and ""real-time"" kW load.
    • User entered cost per kWh provides to-date energy cost and projected hourly cost based on metered load
    • Displays total carbon (CO2) emissions in pounds (lbs.) and indicates hourly emissions based on metered load
    • Patented 0-2 volt output split-core current sensors promote enhanced safety and accurate remote mounting of current sensors up to 2,000 feet from the meter without power interruption (Optional solid-core current sensors available in 100 & 200 Amp only)
    • Onboard installation diagnostics & verification system.
    • Parallel up to three (3) sets of current sensors for cumulative reading.
    • Non-volatile memory
    • Meter can be used in the following configurations:​ 3-Phase, 4 Wire, 3-Phase, 3 Wire​
    • Fixed-value pulse output
    • Green Industrial grade JIC steel enclosure (standard) ​or optional gray NEMA 4X polycarbonate enclosure ​
    Certifications:
    • UL/CUL listed
    • Revenue Grade Accuracy: Certified by independent test lab to ANSI C12.20 national accuracy standards (+/- 0.2% from 1% to 100% of rated load)
    • New York City approved, Con Edison approved for RSP program
    • California CTEP approved for use with solid-core current sensors (listed by the California Energy Commission)
