Plant & Integration Controllers
IQ5 Plant Room Controllers
The IQ™5 controller provides a secure & versatile control platform for building and energy management systems. The controller is available pre-licensed or as hardware & license separate, see SKU link for options.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The IQ™5 controller provides a secure and versatile control platform for building and energy management systems. With three onboard Ethernet ports and three RS-485 ports the IQ5 not only enables the creation of a powerful Trend network but provides the ability to interface with a wide range of third party devices using BACnet, Modbus, M-Bus, MSTP and much more.The IQ5 integrates with the latest IQ5-IO input/output modules over a high-speed T1L bus. A separate bus is also provided for use with IO modules from the IQ4 and XCITE ranges. Flexible licencing options allow the IQ5’s functionality and number of IO channnels to be easily configured for your required application.Designed to meet ISA 62443-4-2T1L high-speed secure bus for IQ5 I/O modulesCompatible I/O bus for IQ4 and XCITE (IQ3) I/O modules3 Switched Gigabit Ethernet Ports3 onboard RS-485 ports supporting Modbus, M-Bus & MSTPBACnet over IP (BACnet Building Controller (B-BC))Automatic time synchronisation and daylight saving via SNTPSurface or DIN rail mounting, DIN 19 size 2 standard enclosureUSB local supervisor/engineering port24 Vac/dc input power supply The controller is available pre-licensed or as hardware & license separate, see SKU link for optionsUL 60730-1CEUKCA
Specifications
Others
- Brand
- Trend
Others
- Brand
- Trend
- Brand : Trend
Name
Date
Size
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
IQ5-00-24
IQ5-00 with 0 onboard IO, licensed to 16 IO channels, expandable to 300 IO channels, 24 Vacdc supply
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-IQ5-00-24-Angled-CC
IQ5-00-24
IQ5-00 with 0 onboard IO, licensed to 16 IO channels, expandable to 300 IO channels, 24 Vacdc supply
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-IQ5-00-24-Angled-CC
IQ5-00-24-16UIO
Kit of IQ5-00-24 & IQ5-IO-16UIO
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-IQ5-00-24-Angled-CC
IQ5-00-24-16UIO
Kit of IQ5-00-24 & IQ5-IO-16UIO
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-IQ5-00-24-Angled-CC

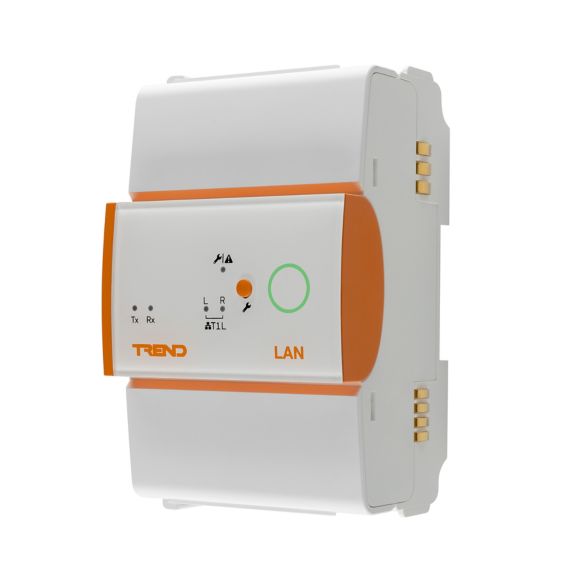

IQ5-LAN-ADPT
Trend LAN Adaptor for IQ5 controllers
https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-Trend-LAN-Angled-Closed
IQ5-LAN-ADPT
Trend LAN Adaptor for IQ5 controllers
https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-Trend-LAN-Angled-Closed
IQ500-16X0N0000000
IQ5 with 0 onboard IO, expandable to 300 IO channels, with initial base licenses supporting; 16 IO channels, NC functionality. PSU - 24 Vacdc
IQ500-16X0N0000000
IQ5 with 0 onboard IO, expandable to 300 IO channels, with initial base licenses supporting; 16 IO channels, NC functionality. PSU - 24 Vacdc
IQ500-16X100000000
IQ5 with 0 onboard IO, expandable to 300 IO channels, with initial base licenses supporting; 16 IO channels, Modbus, Mbus and XNC integration up to 50 points. PSU - 24 Vacdc
IQ500-16X100000000
IQ5 with 0 onboard IO, expandable to 300 IO channels, with initial base licenses supporting; 16 IO channels, Modbus, Mbus and XNC integration up to 50 points. PSU - 24 Vacdc
IQ500-16X500000000
IQ5 with 0 onboard IO, expandable to 300 IO channels, with initial base licenses supporting; 16 IO channels, Modbus, Mbus and XNC integration up to 2500 points. PSU - 24 Vacdc
IQ500-16X500000000
IQ5 with 0 onboard IO, expandable to 300 IO channels, with initial base licenses supporting; 16 IO channels, Modbus, Mbus and XNC integration up to 2500 points. PSU - 24 Vacdc
IQ500-50X000000000
IQ5 with 0 onboard IO, expandable to 300 IO channels, with initial base licenses supporting; 50 IO channels. PSU - 24 Vacdc
IQ500-50X000000000
IQ5 with 0 onboard IO, expandable to 300 IO channels, with initial base licenses supporting; 50 IO channels. PSU - 24 Vacdc
IQ500-50X0000000K1
IQ5 with 0 onboard IO, expandable to 300 IO channels, with initial base licenses supporting; 50 IO channels. PSU - 24 Vacdc with 16UIO Module.
IQ500-50X0000000K1
IQ5 with 0 onboard IO, expandable to 300 IO channels, with initial base licenses supporting; 50 IO channels. PSU - 24 Vacdc with 16UIO Module.
IQ500-50X000S00000
IQ5 with 0 onboard IO, expandable to 300 IO channels, with initial base licenses supporting; 50 IO channels, Single controller HTML5 display. PSU - 24 Vacdc
IQ500-50X000S00000
IQ5 with 0 onboard IO, expandable to 300 IO channels, with initial base licenses supporting; 50 IO channels, Single controller HTML5 display. PSU - 24 Vacdc
IQ500-50X000S000K1
IQ5 with 0 onboard IO, expandable to 300 IO channels, with initial base licenses supporting; 50 IO channels, Single controller HTML5 display. PSU - 24 Vacdc with 16UIO Module.
IQ500-50X000S000K1
IQ5 with 0 onboard IO, expandable to 300 IO channels, with initial base licenses supporting; 50 IO channels, Single controller HTML5 display. PSU - 24 Vacdc with 16UIO Module.
