    Smoke Detectors

    Intelligent VESDA-E VEA FlashScan SLC - UL/ULC

    VESDA-E VEA Series of detectors combine VESDA® reliability and early-warning smoke detection with pinpoint addressability and a variety of annunciation options that truly surpass traditional spot detectors.

    Overview

    VESDA-E VEA Series of detectors combine VESDA®reliability and early-warning smoke detection with pinpoint addressability and a variety of annunciation options that truly surpass traditional spot detectors. They use patented air sampling points and multi-channel micro bore air sampling with three alarm sensitivity settings for the sampling points. As a multi-channel addressable system, the VEA detector is able to divide a protected space into sampling locations, enabling the localization of potential sources of fire for faster incident response. The detectors are suitable for protection of areas where pinpoint location of fire events is essential, thus providing ideal fire detection solutions for healthcare, offices, education, retail, prisons, and electrical cabinets. A wide range of features provide flexibility, field programmability, enhanced connectivity, and reduced total cost of ownership.

    Features & Benefits:
    • Pinpoint addressability
    • 40 addressable micro bore tubes with individual sampling points
    • Assured detection with end to end system integrity monitoring
    • Interruption-free business operation with centralized testing and maintenance
    • Single sampling point or single tube blockage detection at set intervals
    • Automatic sampling point presence and tube breakage detection at set intervals
    • Automatic sampling point cleaning at set intervals
    • Three sensitivity settings for the sampling points
    • Variable length capillary tubes, up to 100 m (328 ft.)
    • Laser-based absolute smoke detection
    Certifications:
    • UL
    • ULC
    • CSFM
    • FM
    • EN 54-20, ISO 7240-20: Class A, B and C
    • ActivFire (ISO 7240-20)
    • CE
    • Ds
    Others
    Name
    Description
    File Size
    Date
    Size
    VESDA-E VEU Data Sheet
    application/pdf 534.64 KB
    4/1/2020
    534.64 KB
    VESDA-E VEA User Manual
    application/pdf 2.01 MB
    1/23/2024
    2.01 MB
    VESDA Aspirating Smoke Detection Technology Brochure
    application/pdf 2.1 MB
    1/23/2024
    2.1 MB
    33214-02 ActivFire Certificate VEA VER afp3196 exp 30-4-2020 Declaration of Conformity
    application/pdf 215.2 KB
    1/8/2024
    215.2 KB
    VESDA-E- VEA-VER series- aspirating smoke detector Declaration of Conformity
    application/pdf 215.23 KB
    1/8/2024
    215.23 KB
    Leaders in Life- Safety- Technology Catalogs
    application/pdf 9.8 MB
    1/8/2024
    9.8 MB
    VESDA-E ASPIRATING SMOKE DETECTION TECHNOLOGY Brochure
    application/pdf 891.69 KB
    1/8/2024
    891.69 KB
    Engineering Specifications
    Name
    Description
    File Size
    Date
    Size
    VESDA-E VEA Engineering Spec
    application/vnd.openxmlformats-officedocument.wordprocessingml.document 243.25 KB
    10/3/2024
    243.25 KB
    Name
    Description
    File Size
    Date
    Size
    VESDA-E VEU Data Sheet
    application/pdf 534.64 KB
    4/1/2020
    534.64 KB
    VESDA-E VEA Engineering Spec
    application/vnd.openxmlformats-officedocument.wordprocessingml.document 243.25 KB
    10/3/2024
    243.25 KB
    VESDA-E VEA User Manual
    application/pdf 2.01 MB
    1/23/2024
    2.01 MB
    VESDA Aspirating Smoke Detection Technology Brochure
    application/pdf 2.1 MB
    1/23/2024
    2.1 MB
    33214-02 ActivFire Certificate VEA VER afp3196 exp 30-4-2020 Declaration of Conformity
    application/pdf 215.2 KB
    1/8/2024
    215.2 KB
    VESDA-E- VEA-VER series- aspirating smoke detector Declaration of Conformity
    application/pdf 215.23 KB
    1/8/2024
    215.23 KB
    Leaders in Life- Safety- Technology Catalogs
    application/pdf 9.8 MB
    1/8/2024
    9.8 MB
    VESDA-E ASPIRATING SMOKE DETECTION TECHNOLOGY Brochure
    application/pdf 891.69 KB
    1/8/2024
    891.69 KB
    Name
    Description
    File Size
    Date
    Size
    VESDA-E VEU Data Sheet
    534.64 KB
    4/1/2020
    VESDA-E VEA User Manual
    2.01 MB
    1/23/2024
    VESDA Aspirating Smoke Detection Technology Brochure
    2.1 MB
    1/23/2024
    33214-02 ActivFire Certificate VEA VER afp3196 exp 30-4-2020 Declaration of Conformity
    215.2 KB
    1/8/2024
    VESDA-E- VEA-VER series- aspirating smoke detector Declaration of Conformity
    215.23 KB
    1/8/2024
    Leaders in Life- Safety- Technology Catalogs
    9.8 MB
    1/8/2024
    VESDA-E ASPIRATING SMOKE DETECTION TECHNOLOGY Brochure
    891.69 KB
    1/8/2024
    VESDA-E VEA Engineering Spec
    243.25 KB
    10/3/2024
    Product Number
    Part Number
    Description
    Leaf Category
    Thumbnail
    Add to list

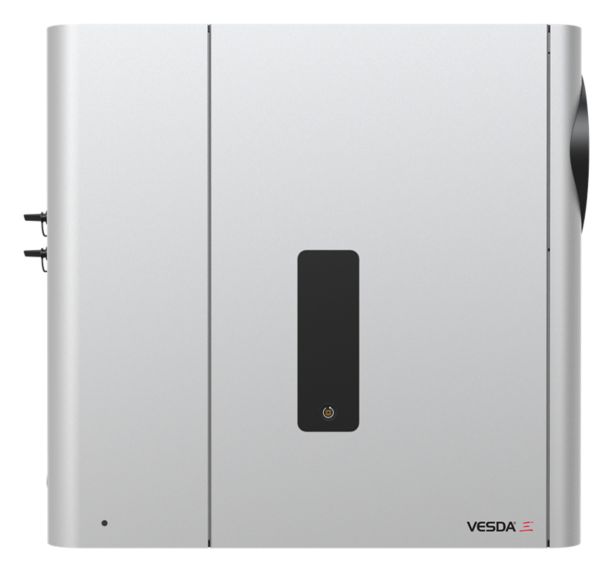

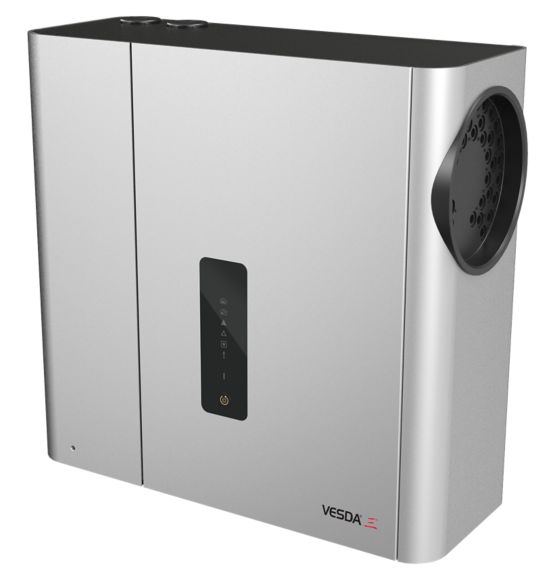

    VEA-040-A00
    Conventional VESDA-E VEA-40 Det with LEDs
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-fire-vea-040-a00-vesda-e-vea-series-smoke-detector-primaryimage
    VEA-040-A00
    Conventional VESDA-E VEA-40 Det with LEDs
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-fire-vea-040-a00-vesda-e-vea-series-smoke-detector-primaryimage

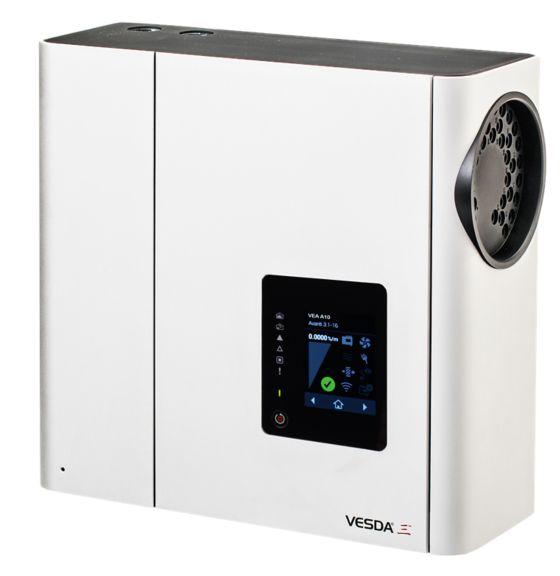

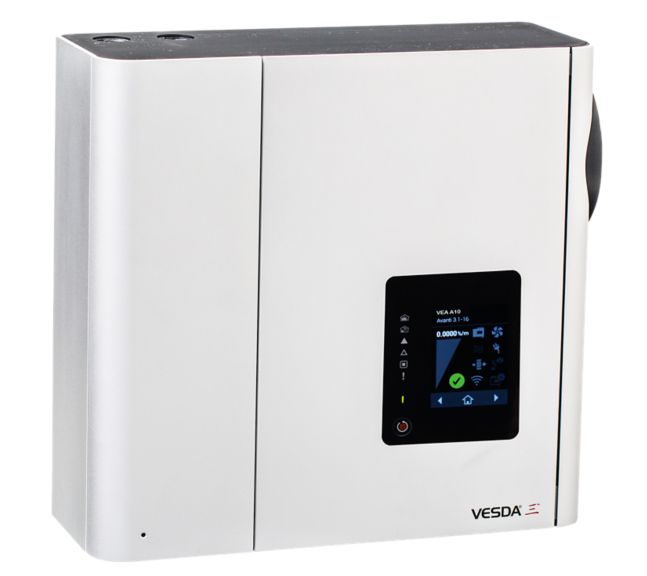

    VEA-040-A10
    Conventional VESDA-E VEA-40 Det with 3.5 Display
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-fire-vea-040-a10-vesda-e-vea-series-smoke-detector-primaryimage
    VEA-040-A10
    Conventional VESDA-E VEA-40 Det with 3.5 Display
    https://honeywell.scene7.com/is/image/Honeywell65/hbt-fire-vea-040-a10-vesda-e-vea-series-smoke-detector-primaryimage
