Pressure Switches & Sensors

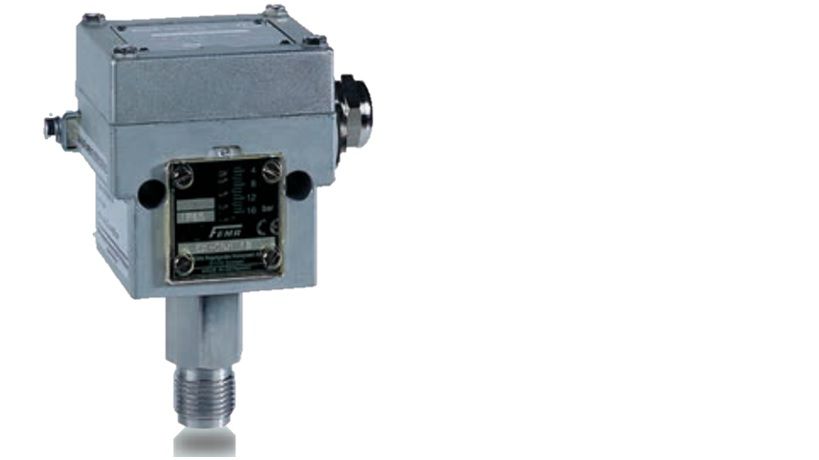

Ex-DCM / Ex-DNM Pressure switches and pressure monitors for over-pressure

This universal pressure switch can be used in general mechanical engineering and the printing machine industry, as well as in pneumatics and hydraulics.

Overview

Ex-DCM / Ex-DNM Pressure switches and pressure monitors for over-pressure are universal pressure switches which can be used in general mechanical engineering and the printing machine industry, as well as in pneumatics and hydraulics.It comes with a robust housing made of seawater resistant die cast aluminium GD Al Si 12.Ex-DCM types have switching differential not adjustable and Ex-DNM types have switchong differential adjustable.

Features & Benefits:
  • The Ex-DCM/Ex-DNM series is calibrated for falling pressure. This means that the adjustableswitching pressure on the scale corresponds to the switching point at falling pressure. The resetpoint is higher by the amount of the switching differential.
Certifications:
  • SIL2 according IEC 61508-2
  • IBExU12ATEX1040 according to ATEX 2014/34/EU
  • IECEx IBE 14.0077
Specifications

Others

  • Minimum Operating Ambient Temperature
    • -20
  • Maximum Operating Ambient Temperature
    • 60
  • Brand
    • FEMA
    • Honeywell
  • Switch Configuration
    • 3 A bei 250 , 2 A bei 250 induktiv, 3 A bei 24 V DC, 0,03 A bei 250 V DC
    • 3 A bei 250 , 2 A bei 250 induktiv, 3 A bei 24 V DC, 0,03 A bei 250 V DC
    • SPDT Microswitch; Capacity 2 A Inductive, 3 A Resistive
    • SPDT Microswitch; Capacity 2 A Inductive, 3 A Resistive
  • Connection Type
    • Internal Thread G1/4 in, External Thread G1/2 in
  • Scale Calibration
    • falling pressure
  • Pressure Type
    • Overpressure Relative
    • overdruk relatief
    • sobrepresión relativa
    • sovrapressione relativa
    • surpression relative
    • Überdruck relativ

Others

  • Minimum Operating Ambient Temperature
    • -20
  • Maximum Operating Ambient Temperature
    • 60
  • Brand
    • FEMA
    • Honeywell
  • Switch Configuration
    • 3 A bei 250 , 2 A bei 250 induktiv, 3 A bei 24 V DC, 0,03 A bei 250 V DC
    • 3 A bei 250 , 2 A bei 250 induktiv, 3 A bei 24 V DC, 0,03 A bei 250 V DC
    • SPDT Microswitch; Capacity 2 A Inductive, 3 A Resistive
    • SPDT Microswitch; Capacity 2 A Inductive, 3 A Resistive
  • Connection Type
    • Internal Thread G1/4 in, External Thread G1/2 in
  • Scale Calibration
    • falling pressure
  • Pressure Type
    • Overpressure Relative
    • overdruk relatief
    • sobrepresión relativa
    • sovrapressione relativa
    • surpression relative
    • Überdruck relativ
  • Minimum Operating Ambient Temperature : -20
  • Maximum Operating Ambient Temperature : 60
  • Brand : FEMA|Honeywell
  • Switch Configuration : 3 A bei 250 , 2 A bei 250 induktiv, 3 A bei 24 V DC, 0,03 A bei 250 V DC|3 A bei 250 , 2 A bei 250 induktiv, 3 A bei 24 V DC, 0,03 A bei 250 V DC|SPDT Microswitch; Capacity 2 A Inductive, 3 A Resistive|SPDT Microswitch; Capacity 2 A Inductive, 3 A Resistive
  • Connection Type : Internal Thread G1/4 in, External Thread G1/2 in
  • Scale Calibration : falling pressure
  • Pressure Type : Overpressure Relative|overdruk relatief|sobrepresión relativa|sovrapressione relativa|surpression relative|Überdruck relativ
Sort
Others
Document Title
Document Type
File Size
Declaration of Conformity
0.26 MB
Document Title
Document Type
File Size
Declaration of Conformity
0.26 MB
Product Number
SKU
Description
alt
EX-DCM4016
Universal Pressure Switch to ATEX 201434EU, SPCO; differential not adjustable; setting range: 1…160m bar; switching differential: 0,2 ... 2 mbar; max pressure: 1 bar
alt
EX-DNM10
Universal Pressure Switch to ATEX 201434EU, SPCO; differential adjustable; setting range: 1…10 bar; switching differential: 0,05 ... 0,3 bar; max pressure: 25 bar
alt
EX-DNM10-S
Universal Pressure Switch to ATEX 201434EU, SPCO; differential adjustable; setting range: 1…10 bar; switching differential: 0,05 ... 0,3 bar; max pressure: 25 bar; with service function
alt
EX-DNM63
Universal Pressure Switch to ATEX 201434EU, SPCO; differential adjustable; setting range: 16…63 bar; switching differential: 0,2 ... 2,0 bar; max pressure: 130 bar
alt
EX-DNM63-S
Universal Pressure Switch to ATEX 201434EU, SPCO; differential adjustable; setting range: 16…63 bar; switching differential: 0,2 ... 2,0 bar; max pressure: 130 bar; with service function
SKU
Description
alt
EX-DCM4016
Universal Pressure Switch to ATEX 201434EU, SPCO; differential not adjustable; setting range: 1…160m bar; switching differential: 0,2 ... 2 mbar; max pressure: 1 bar
alt
EX-DNM10
Universal Pressure Switch to ATEX 201434EU, SPCO; differential adjustable; setting range: 1…10 bar; switching differential: 0,05 ... 0,3 bar; max pressure: 25 bar
alt
EX-DNM10-S
Universal Pressure Switch to ATEX 201434EU, SPCO; differential adjustable; setting range: 1…10 bar; switching differential: 0,05 ... 0,3 bar; max pressure: 25 bar; with service function
alt
EX-DNM63
Universal Pressure Switch to ATEX 201434EU, SPCO; differential adjustable; setting range: 16…63 bar; switching differential: 0,2 ... 2,0 bar; max pressure: 130 bar
alt
EX-DNM63-S
Universal Pressure Switch to ATEX 201434EU, SPCO; differential adjustable; setting range: 16…63 bar; switching differential: 0,2 ... 2,0 bar; max pressure: 130 bar; with service function
