Pressure Switches & Sensors

Smart SN Microprocessor supported pressure transducers

Smart SN Microprocessor supported pressure transducers

Overview

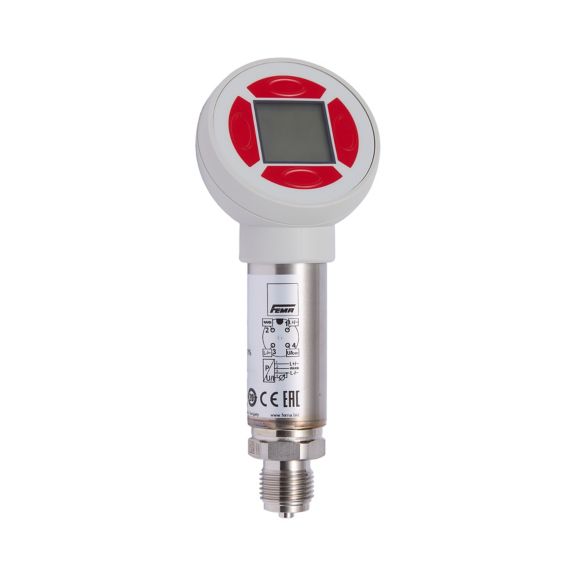

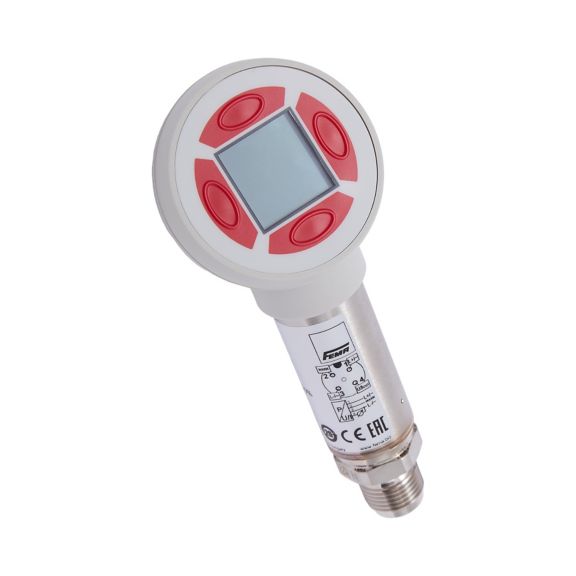

Smart SN Microprocessor supported pressure transducers are robust, microprocessor supported electronic pressure transducers in the Smart SN series from Honeywell FEMA measure relative pressures in ranges from -1 …+1 bar and 0-40 bar. They are particularly suitable for use as pressure sensors in the fields of mechanical engineering, supply engineering, environmental technology and HVAC. The equipment can be installed directly in the pressure line using the G1/2" external thread. Entering switching points is easy with the generously proportionedkeyboard and graphic display. 2- and 3-wire versions are available, as are versions for use with alternating current.Note:Cycle time: 100msecPressure surges shorter than the cycle time of 100 msec are not written in the peak values.Remedy for pressure surges can afford a front mounted pressure surge reducer DMW.Features and Benefits:· Restore function· Warning function for sensor fault, overload and overheating· Manual zero adjustment· 4-digit code enables lockingSmart SN display functions - · Current pressure display· Current analog output display (voltage or power)· WARNING - Display with visible error codes· Rotation of graphics display in 90° steps, possible by means of softwareCertifications: •All 2-wire versions are SIL2 approved according IEC 61508
Others
Name
Description
File Size
Date
Size
Smart SN ELECTRONIC PRESSURE TRANSMITTERS
application/pdf 393.71 KB
8/16/2022
393.71 KB
Smart SN ELEKTRONIKUS NYOM�ST�VAD�K
application/pdf 185.59 KB
8/16/2022
185.59 KB
H60456120 SINGLE-STAGE ROOM & DUCT HYGROSTATS
application/pdf 165.98 KB
8/16/2022
165.98 KB
Smart SN TRANSMETTEUR DE PRESSION ELECTRONIQUE
application/pdf 146.84 KB
6/21/2022
146.84 KB
ELECTRONIC PRESSURE TRANSMITTERS (WITHOUT HMI) ELEKTRONISCHE DRUCK TRANSMITTER (OHNE HMI)
application/pdf 272.77 KB
8/25/2022
272.77 KB
??????????? ????????????? ???? ?????????? ? ????????????
application/pdf 1.95 MB
7/4/2022
1.95 MB
Sicherheitshandbuch F�R SN (2-LEITER), PTSR�..A2, PTHR�..A2
application/pdf 241.73 KB
7/11/2022
241.73 KB
Smart DCM-SN ELECTRONIC PRESSURE SWITCHES AND TRANSMITTERS
application/pdf 697.63 KB
7/11/2022
697.63 KB
??????????? ????????????? ???? ?????????? ? ????????????
application/pdf 1.95 MB
7/11/2022
1.95 MB
Microprocessor-supported pressure transmitter
application/pdf 740.19 KB
7/11/2022
740.19 KB
Name
Description
File Size
Date
Size
Smart SN ELECTRONIC PRESSURE TRANSMITTERS
393.71 KB
8/16/2022
393.71 KB
Smart SN ELEKTRONIKUS NYOM�ST�VAD�K
185.59 KB
8/16/2022
185.59 KB
H60456120 SINGLE-STAGE ROOM & DUCT HYGROSTATS
165.98 KB
8/16/2022
165.98 KB
Smart SN TRANSMETTEUR DE PRESSION ELECTRONIQUE
146.84 KB
6/21/2022
146.84 KB
ELECTRONIC PRESSURE TRANSMITTERS (WITHOUT HMI) ELEKTRONISCHE DRUCK TRANSMITTER (OHNE HMI)
272.77 KB
8/25/2022
272.77 KB
??????????? ????????????? ???? ?????????? ? ????????????
1.95 MB
7/4/2022
1.95 MB
Sicherheitshandbuch F�R SN (2-LEITER), PTSR�..A2, PTHR�..A2
241.73 KB
7/11/2022
241.73 KB
Smart DCM-SN ELECTRONIC PRESSURE SWITCHES AND TRANSMITTERS
697.63 KB
7/11/2022
697.63 KB
??????????? ????????????? ???? ?????????? ? ????????????
1.95 MB
7/11/2022
1.95 MB
Microprocessor-supported pressure transmitter
740.19 KB
7/11/2022
740.19 KB
Name
Description
File Size
Date
Size
Smart SN ELECTRONIC PRESSURE TRANSMITTERS
393.71 KB
8/16/2022
Smart SN ELEKTRONIKUS NYOM�ST�VAD�K
185.59 KB
8/16/2022
H60456120 SINGLE-STAGE ROOM & DUCT HYGROSTATS
165.98 KB
8/16/2022
Smart SN TRANSMETTEUR DE PRESSION ELECTRONIQUE
146.84 KB
6/21/2022
ELECTRONIC PRESSURE TRANSMITTERS (WITHOUT HMI) ELEKTRONISCHE DRUCK TRANSMITTER (OHNE HMI)
272.77 KB
8/25/2022
??????????? ????????????? ???? ?????????? ? ????????????
1.95 MB
7/4/2022
Sicherheitshandbuch F�R SN (2-LEITER), PTSR�..A2, PTHR�..A2
241.73 KB
7/11/2022
Smart DCM-SN ELECTRONIC PRESSURE SWITCHES AND TRANSMITTERS
697.63 KB
7/11/2022
??????????? ????????????? ???? ?????????? ? ????????????
1.95 MB
7/11/2022
Microprocessor-supported pressure transmitter
740.19 KB
7/11/2022
Product Number
SKUs
SKU
Description
alt
PTHRB0011V3
Relative pressure sensor, G1/2"; 4…20mA (3-wire), with HMI; range: 0...1 bar; max pressure: 4 bar
alt
PTHRB0041A2
Relative pressure sensor, G1/2"; 4…20mA (2-wire), with HMI; range: 0...4 bar; max pressure: 8 bar
alt
PTHRB0041V3
Relative pressure sensor, G1/2"; 4…20mA (3-wire), with HMI; range: 0...4 bar; max pressure: 8 bar
alt
PTHRB0101A2
Relative pressure sensor, G1/2"; 4…20mA (2-wire), with HMI; range: 0...10 bar; max pressure: 20 bar
alt
PTHRB0101V3
Relative pressure sensor, G1/2"; 4…20mA (3-wire), with HMI; range: 0...10 bar; max pressure: 20 bar
alt
PTHRB0161A2
Relative pressure sensor, G1/2"; 4…20mA (2-wire), with HMI; range: 0...16 bar; max pressure: 32 bar
alt
PTHRB0161V3
Relative pressure sensor, G1/2"; 4…20mA (3-wire), with HMI; range: 0...16 bar; max pressure: 32 bar
alt
PTHRB0251V3
Relative pressure sensor, G1/2"; 4…20mA (3-wire), with HMI; range: 0...25 bar; max pressure: 50 bar
alt
PTHRB0401A2
Relative pressure sensor, G1/2"; 4…20mA (2-wire), with HMI; range: 0...40 bar; max pressure: 80 bar
alt

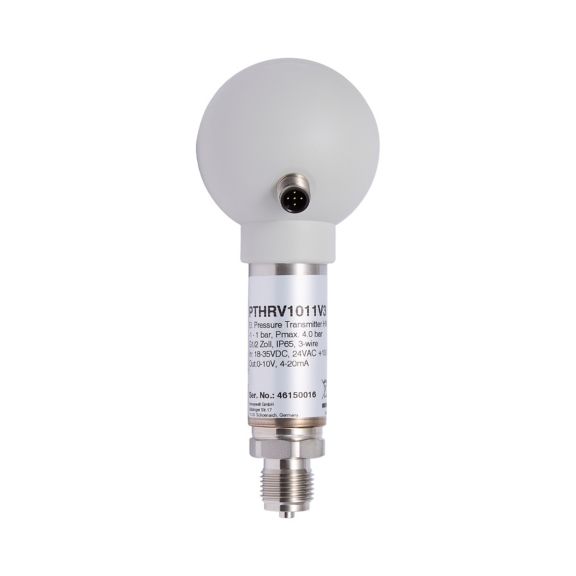

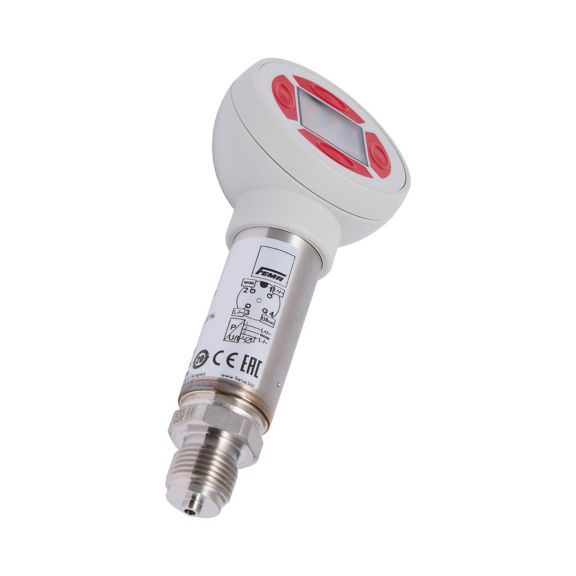

PTHRV1011V3
Relative pressure sensor, G1/2"; 4…20mA (3-wire), with HMI; range: -1...+1 bar; max pressure: 4 bar
SKU
Description
alt
PTHRB0011V3
Relative pressure sensor, G1/2"; 4…20mA (3-wire), with HMI; range: 0...1 bar; max pressure: 4 bar
alt
PTHRB0041A2
Relative pressure sensor, G1/2"; 4…20mA (2-wire), with HMI; range: 0...4 bar; max pressure: 8 bar
alt
PTHRB0041V3
Relative pressure sensor, G1/2"; 4…20mA (3-wire), with HMI; range: 0...4 bar; max pressure: 8 bar
alt
PTHRB0101A2
Relative pressure sensor, G1/2"; 4…20mA (2-wire), with HMI; range: 0...10 bar; max pressure: 20 bar
alt
PTHRB0101V3
Relative pressure sensor, G1/2"; 4…20mA (3-wire), with HMI; range: 0...10 bar; max pressure: 20 bar
alt
PTHRB0161A2
Relative pressure sensor, G1/2"; 4…20mA (2-wire), with HMI; range: 0...16 bar; max pressure: 32 bar
alt
PTHRB0161V3
Relative pressure sensor, G1/2"; 4…20mA (3-wire), with HMI; range: 0...16 bar; max pressure: 32 bar
alt
PTHRB0251V3
Relative pressure sensor, G1/2"; 4…20mA (3-wire), with HMI; range: 0...25 bar; max pressure: 50 bar
alt
PTHRB0401A2
Relative pressure sensor, G1/2"; 4…20mA (2-wire), with HMI; range: 0...40 bar; max pressure: 80 bar
alt
PTHRV1011V3
Relative pressure sensor, G1/2"; 4…20mA (3-wire), with HMI; range: -1...+1 bar; max pressure: 4 bar
