Pressure Regulating Valves

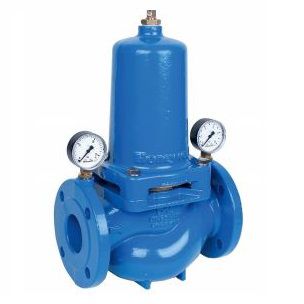

D15S Pressure Reducing Valve
Honeywell Pressure reducing Valve is designed to protect household water installations against excessive pressure from the supply. They can also be used for industrial or commercial applications within the range of their specification.
Overview
Honeywell Pressure reducing Valve is designed to protect household water installations against excessive pressure from the supply. They can also be used for industrial or commercial applications within the range of their specification. The advantage of installing pressure reducing valve is that, pressurization damage is avoided and water consumption is reduced. The set pressure is also maintained constant, even when there is wide inlet pressure fluctuation. There is reduction of the operating pressure and maintaining it at a constant level minimizes flow noise in the installation.
Features & Benefits:- Light weight
- Integral fine filter
- The outlet pressure is set by turning the adjustment knob
- The set pressure is directly indicated on the set point scale
- The adjustment spring is not in contact with the potable water
- Also available without fittings
- Easily retrofit able to convert valve to a reverse-rinsing filter combination
- Can be retrofitted with an inlet non-return valve
- Inlet pressure balancing - fluctuating inlet pressure does not influence outlet pressure
- DVGW
- WRAS (up to 23°C)
- KIWA (DN65-DN100)
- SVGW (DN65-DN100)
Specifications
Others
- Maximum Inlet Pressure
- 16 bar
- For Use With
- Drinking water; Compressed air volt
- Brand
- Honeywell
- Includes
- Extension flange DN125 voltage alternating current
- Product Type
- Pressure Reducing Valve Degrees Celsius
Others
- Maximum Inlet Pressure
- 16 bar
- For Use With
- Drinking water; Compressed air volt
- Brand
- Honeywell
- Includes
- Extension flange DN125 voltage alternating current
- Product Type
- Pressure Reducing Valve Degrees Celsius
- Maximum Inlet Pressure : 16 bar
- For Use With : Drinking water; Compressed air volt
- Brand : Honeywell
- Includes : Extension flange DN125 voltage alternating current
- Product Type : Pressure Reducing Valve Degrees Celsius
Others
Name
Description
File Size
Date
Size
Name
Description
File Size
Date
Size
Name
Description
File Size
Date
Size
Product Number
Please Sign In to view part numbers available for purchase based on your account
Part Number
Description
Leaf Category
Thumbnail
Add to list
D15S-100A
Pressure Reducing Valve, Ductile Cast Iron, PA Coated, 56 m3h, 4in
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-d15s100a-d15spressurereducingvalve-primaryimage
D15S-100A
Pressure Reducing Valve, Ductile Cast Iron, PA Coated, 56 m3h, 4in
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-d15s100a-d15spressurereducingvalve-primaryimage
D15S-150A
Pressure Reducing Valve, Ductile Cast Iron, PA Coated, 230 m3h, 6in
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-d15s100a-d15spressurereducingvalve-primaryimage
D15S-150A
Pressure Reducing Valve, Ductile Cast Iron, PA Coated, 230 m3h, 6in
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-d15s100a-d15spressurereducingvalve-primaryimage
D15S-65A
Pressure Reducing Valve, Ductile Cast Iron, PA Coated, 49 m3h, 212in
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-d15s100a-d15spressurereducingvalve-primaryimage
D15S-65A
Pressure Reducing Valve, Ductile Cast Iron, PA Coated, 49 m3h, 212in
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-d15s100a-d15spressurereducingvalve-primaryimage
D15S-80A
PRESSURE REDUCING VALVE PN16
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-d15s100a-d15spressurereducingvalve-primaryimage
D15S-80A
PRESSURE REDUCING VALVE PN16
https://honeywell.scene7.com/is/image/Honeywell65/hbt-bms-d15s100a-d15spressurereducingvalve-primaryimage
