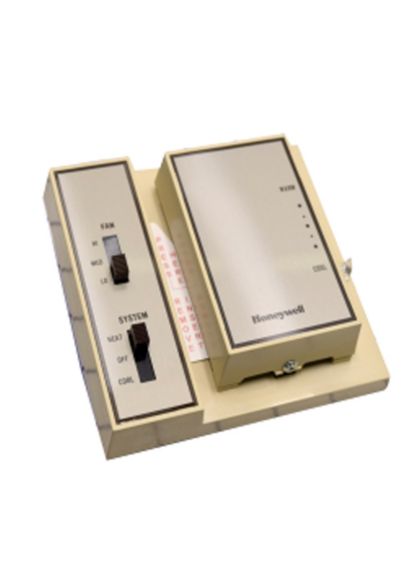

T4039 Thermostat
T4039 thermostats control the line-voltage valves of fan coil units in cooling, manual changeover heating-cooling, or automatic changeover heating-cooling systems.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
T4039 thermostats control the line voltage valves of fan coil units in cooling, manual changeover heating-cooling, or automatic changeover heating-cooling systems. One or two valves may be controlled directly by the thermostat. The fan switch (where applicable) controls air circulation.
Features & Benefits:- Manual fan control available
- Positive dead spot separates heating-cooling circuits in automatic models
- Scale range is approximately 55 to 95 °F (13 to 35 °C) in 10 °F (6 °C) increments from 75 °F (24 °C) midpoint
- Cooling circuit breaks in "FAN-OFF" position to reduce condensation problems in the fan coil unit
- Color-coded lead wires
- All models can be mounted on standard vertical outlet boxes. Models with manual switching can be mounted on 4-inch square junction boxes or 2-gang outlet boxes
- Adjustable range stops limit temperature adjustment or lock at selected setpoint
- Models available with separate power source for fan and thermostat
