Transducers

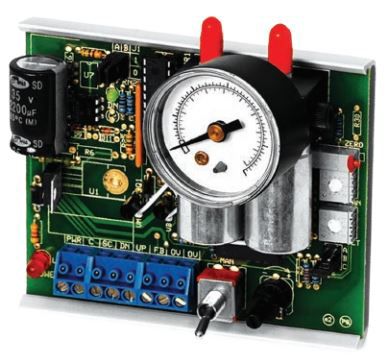

Pulse Width Modulation to Pneumatic Output Interface Device
Pulse Width Modulation to Pneumatic Output converts a pulse or digital PWM signal into a proportional pneumatic signal. These devices feature a manual override potentiometer to vary the pneumatic output.
Overview
Pulse Width Modulation to Pneumatic Output converts a pulse or digital PWM signal into a proportional pneumatic signal. The pneumatic output is proportional to the signal input, either direct or reverse acting, and features a manual override potentiometer to vary the pneumatic output. A 0-5 VDC feedback signal indicating the resultant branch line pressure is also provided. This signal varies linearly with the branch pressure range selected.
Features & Benefits:- Convenience in wiring and tubing installation
- Jumper selectable input timing ranges
- RoHS2
- WEEE
Specifications
Others
- Minimum Operating Ambient Temperature
- 1.7 degree Celsius
- 35 degree Fahrenheit
- Maximum Operating Ambient Temperature
- 120 degree Fahrenheit
- 48.9 degree Celsius
- Terminal Type
- 90° Pluggable Screw Terminal Blocks inch
- Brand
- Alerton
- Mounting Type
- Panel inch
Others
- Minimum Operating Ambient Temperature
- 1.7 degree Celsius
- 35 degree Fahrenheit
- Maximum Operating Ambient Temperature
- 120 degree Fahrenheit
- 48.9 degree Celsius
- Terminal Type
- 90° Pluggable Screw Terminal Blocks inch
- Brand
- Alerton
- Mounting Type
- Panel inch
- Minimum Operating Ambient Temperature : 1.7 degree Celsius|35 degree Fahrenheit
- Maximum Operating Ambient Temperature : 120 degree Fahrenheit|48.9 degree Celsius
- Terminal Type : 90° Pluggable Screw Terminal Blocks inch
- Brand : Alerton
- Mounting Type : Panel inch
