Wall Modules

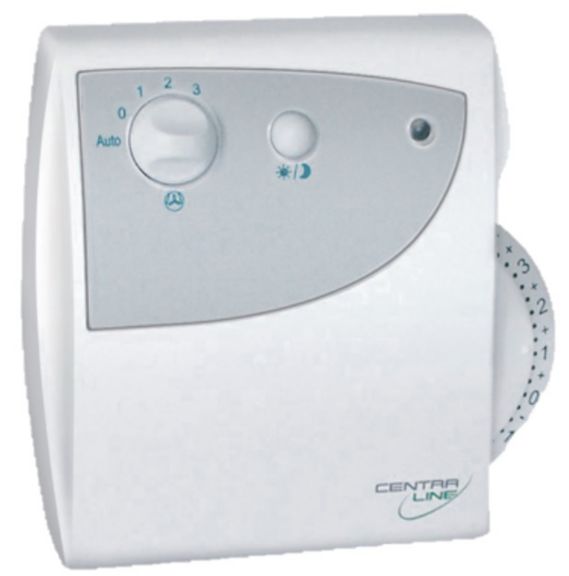

CLCM Wall Module model
The CLCM3T111 remote regulator is a temperature selector. Equipped with operating mode switch, room temperature sensor, and LED. It is designed for use in conjunction with the PANTHER Controller.
Overview
The CLCM3T111 remote regulator is a temperature selector. Equipped with operating mode switch, room temperature sensor, and LED. It is designed for use in conjunction with the PANTHER Controller. Digital Wall Modules (DWM) display and provide space temperature, set point, "occupied" / "unoccupied" override, and fan mode/speed selection for the PANTHER Controller.
Features & Benefits:- Fully compatible with the PANTHER, SERVAL, LION, and FALCON controllers
- Mountable on 60mm wall outlet box or directly on a wall
- Models with set point adjustment
- Models with bypass button and override LED
- Model with 5-position (auto/0/1/2/3 speed) fan switch
- Set point dials with Celsius relative or Celsius absolute scale
- Locking cover on all models
- Operating range 6...40 C
- IP30 housing
- CE
