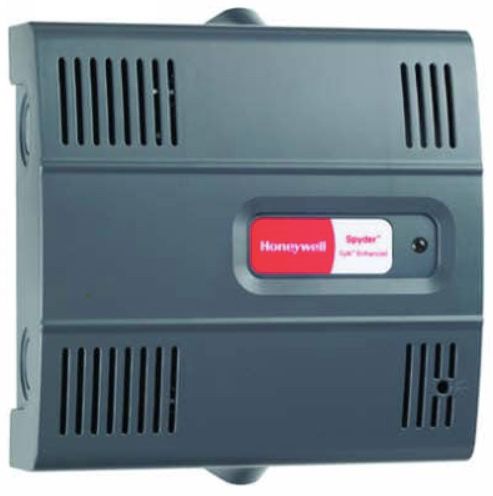

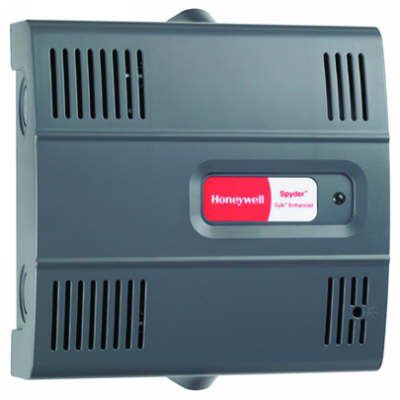

Wiring Box Enclosure
Wiring box enclosures are for use with CP-UL1012S, CP-UL4024S, CP-VL0000AS, CP-VL4022AS, CP-VL4024NS, PUL1012S, PUL4024S, PVL0000AS, PVL4022AS, and PVL4024NS unitary controllers.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Wiring box enclosures are for use with CP-UL1012S, CP-UL4024S, CP-VL0000AS, CP-VL4022AS, CP-VL4024NS, PUL1012S, PUL4024S, PVL0000AS, PVL4022AS, and PVL4024NS unitary controllers. These enclosures are the perfect fit for applications where a single controller requires extra protection or the wiring can not be exposed.
Features & Benefits:- Screwless controller mounting
- Conduit connections via four 1/2-inch knockouts
- Access to the controller service pin, service jack, controller status LED, and VAV air sensor bridge (with or without the cover)
- Use with all microcontrollers (unitary and VAVs with or without actuator)
