Gamewell-FCI LCD Smart Loop Panel

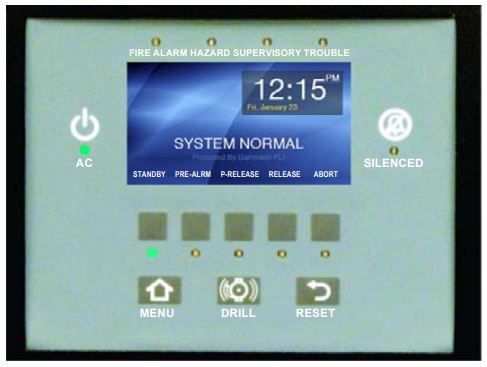

The Gamewell-FCI LCD Smart Loop Panel (LCD-SLP) is a touchscreen annunciator display used with the S3, E3 Series® Systems

Overview

The Gamewell-FCI, Liquid Crystal Display, Smart Loop Panel (LCD-SLP) is a touchscreen annunciator display used with the S3 Series and E3 Series® Systems. The LCD-SLP provides an easy-to-use, intuitive interface for the operator’s control. The color touchscreen display shows System Status, Event Details, and Service Modes. The five fully-programmable front panel switch/LED combinations provide a direct access to perform Device Bypass, Lamp Test, Enable/Disable Groups or Devices. The display features Menu, System Reset, Drift Walk Test, and Five Programmable Switches as physical switches. The LCD-SLP panel’s adaptable design allows it to be mounted in a variety of S3 Series, E3® Series or Retrofit cabinet installations.

Features & Benefits:
  • Provides 4.3” (10.92 cm) color touchscreen display of System Events
  • Includes five custom function buttons with LEDs for direct access to system controls
  • Shows the Hazard LED to indicate gas, carbon monoxide or other toxic gases
  • Both the E3 Series (ILIMB-E3/ILI95-MB-E3) and the S3 Series (SLP) support up to 15 LCDSLP displays via the RS485 serial interface
  • Displays the LED indicators
Certifications:
  • UL Listed: S1869
  • FM Approved
  • MEA FDNY: COA # 6162
  • CSFM: 7165-1703:0176
  • City of Chicago Approved: Class 1
  • Reference Certificate of Compliance: VMA 45894-02C
  • ISO 9001 Certification
Specifications

Others

  • Alarm Current
    • 0.065 ampere
  • Minimum Operating Humidity
    • 0 Percentage
  • Maximum Operating Humidity
    • 93 Percentage
  • Light Bulb Type
    • LED
  • Brand
    • Gamewell-FCI

Others

  • Alarm Current
    • 0.065 ampere
  • Minimum Operating Humidity
    • 0 Percentage
  • Maximum Operating Humidity
    • 93 Percentage
  • Light Bulb Type
    • LED
  • Brand
    • Gamewell-FCI
  • Alarm Current : 0.065 ampere
  • Minimum Operating Humidity : 0 Percentage
  • Maximum Operating Humidity : 93 Percentage
  • Light Bulb Type : LED
  • Brand : Gamewell-FCI
