Power Supplies
Two 24VDC Output Circuit Auxilary Power Supply
The state-of-the-art 150 watt switching auxiliary power supply providing 24 VDC of filtered DC power. The auxiliary power supply provides two 24 VDC output circuits, each rated for 3.0 Amps in alarm and 2.0 Amps continuous.
Overview

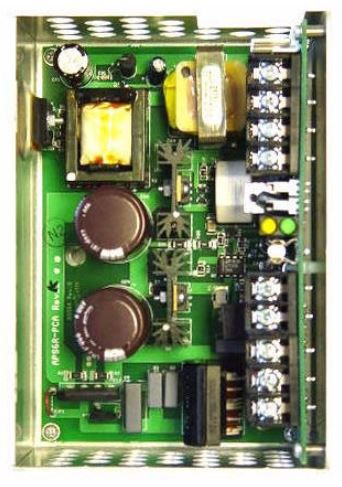

The APS-6R is a state-of-the-art, 150 watt, switching auxiliary power supply providing 24 VDC of filtered DC power. The APS-6R provides two 24 VDC output circuits, each rated for 3.0 Amps in alarm and 2.0 Amps continuous. It is used for the operation of peripheral audible/visual devices (alarm signaling appliances) for the NOTIFIER AM2020, AFP1010, NFS-3030, NFS-640, AFP-400, AFP-300, AFP-200, System 5000, and System 500 control panels.
Features & Benefits:- Output circuits with overload protection
- Built-in “brown-out” circuitry
- Diagnostic trouble LED
- Plug-in connector for in-cabinet applications and screw terminals for remote device applications
- Trouble supervision bus
- Shares battery and charger circuit with control panel
- Power-limited design
- Heavy-duty clamp-type terminals accept up to 12 AWG (3.1mm²) wire
- Battery voltage supervision
- Low battery disconnect
- UL/ULC S635
- FM Approved
- CSFM: 7315-0028:248
- FDNY: COA #6028
