Smoke Detectors

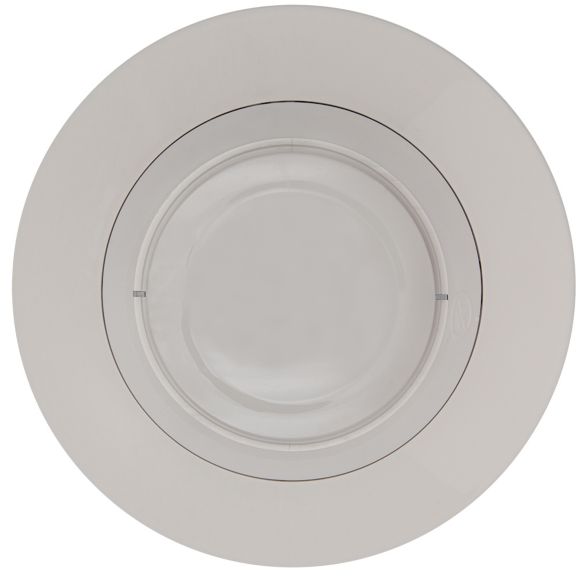

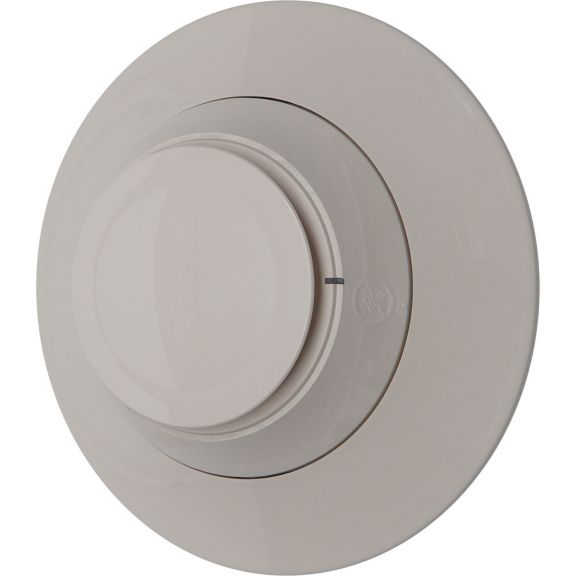

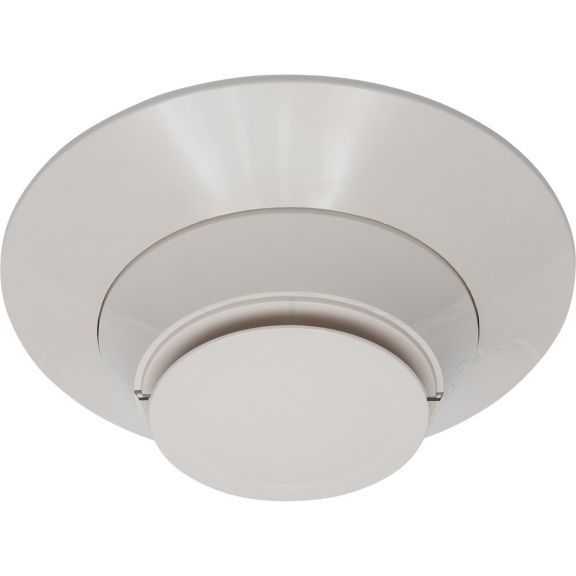

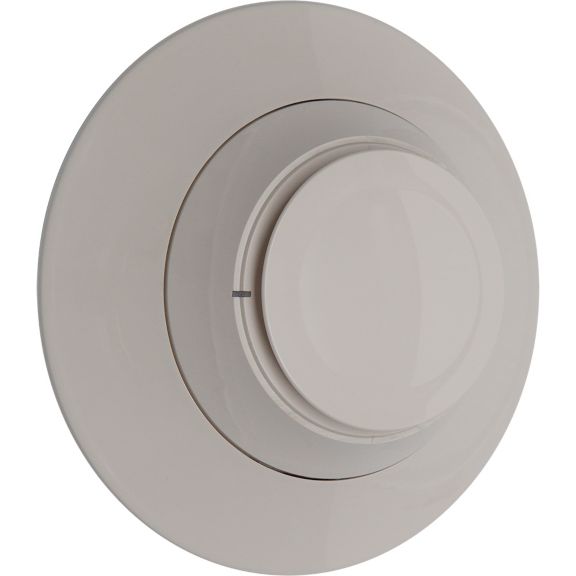

Select Series Intelligent Photoelectric Smoke Detector

Select Series intelligent photoelectric smoke detectors are plug-in type smoke sensors that combine a photoelectronic sensing chamber with addressable-analog communications.

Overview

Select Series smoke detectors are intelligent (addressable) detectors with point ID capability that enable each detector address to be set with rotary address switches providing exact device locations. Detector sensitivity is continually monitored and reported to the fire alarm control panel. The modern design and expanded color options support contemporary aesthetic demands. In addition, each detector is constructed for exceptional installation and maintenance efficiency. The System Sensor 2351B (2351B-IV) photoelectric detector’s re-designed optical sensing chamber is engineered to sense smoke produced by a wide range of combustion sources in accordance with more stringent code standards. The sensitivity of Select Series detectors can be programmed using the control panel software to suit the environment.

Features & Benefits:
  • UL 268 7th Edition listed
  • Modern profile
  • Analog communications
  • Low standby current
  • Rotary address switches
  • Dual LEDs for 360° visibility
  • Expanded color options
Certifications:
  • UL
  • FM
  • CSFM
Others
Name
Description
File Size
Date
Size
Select Series Photo CAD Drawing
image/vnd.dwg 106.65 KB
4/28/2023
106.65 KB
Base - Detector Cross Reference Brochure
application/pdf 629.35 KB
5/11/2023
629.35 KB
2351B and 2351B-IV Intelligent Photoelectric Smoke Sensors (Select Series)
application/pdf 325.21 KB
5/8/2023
325.21 KB
Select Series - Addressable Detection (SPDS899)-Data Sheet
application/pdf 212.48 KB
4/13/2023
212.48 KB
Base / Detector Cross Reference
application/pdf 629.35 KB
5/11/2023
629.35 KB
Select Series - Addressable Detection (SPDS899)- Datasheet
application/pdf 212.48 KB
8/3/2023
212.48 KB
Intelligent Photoelectric Smoke Detector Engineering Specs
