    Linear Actuators

    M7410E/F Series 0...10Vdc Short Stroke Linear Valve Actuators

    M7410E/F cartridge globe valve actuators are used in electronic temperature control systems, which use hot and/or cold water (with glycol up to 50%) as the controlled medium in VAV terminal units, fan coil units, small reheaters, and recoolers.

    Overview
    M7410E/F cartridge globe valve actuators are used in electronic temperature control systems, which use hot and/or cold water (with glycol up to 50%) as the controlled medium in variable air volume (VAV) terminal units, fan coil units, small reheaters, and recoolers. Spring return and non-spring return actuators are available.  Features & Benefits:
    • Small size allows installation in limited space
    • Long stroke allows wider range of control
    • Synchronous motor
    • No mounting tools required
    • Low-maintenance plastic housing
    • No separate linkage required
    • Receives 0 to 10V DC or 2 to 10V DC input signal, selectable at the site
    • Includes direct/reverse acting switch
    • Internal valve position indicator
    • Magnetic coupling for torque limitation independent of voltage supply, and self-adjustment of close-off port
    Specifications

    Others

    • Minimum Operating Ambient Temperature
      • 0 Degrees Celsius
    • Supply Voltage Frequency
      • 50/60 Hertz (1/second)
    • Supply Voltage
      • 24
    • Stem Force
      • 90 newton
    • Brand
      • Honeywell

    Others

    • Minimum Operating Ambient Temperature
      • 0 Degrees Celsius
    • Supply Voltage Frequency
      • 50/60 Hertz (1/second)
    • Supply Voltage
      • 24
    • Stem Force
      • 90 newton
    • Brand
      • Honeywell
    • Minimum Operating Ambient Temperature : 0 Degrees Celsius
    • Supply Voltage Frequency : 50/60 Hertz (1/second)
    • Supply Voltage : 24
    • Stem Force : 90 newton
    • Brand : Honeywell
    Name
    Date
    Size
    No Resources documents tagged to this product
    An error occurred . Please try after sometime
    Product Number
    Part Number
    Description
    Leaf Category
    Thumbnail
    Add to list

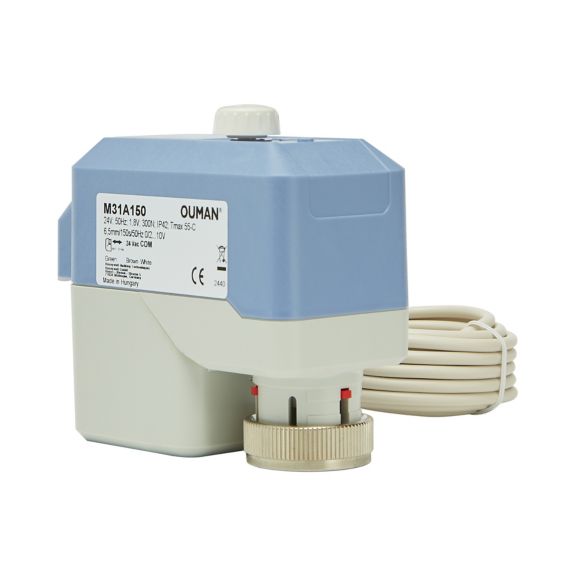

    M31A150
    Actuator 0-10V MOD 300N, MAN.OP.
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-M31A150-left
    M31A150
    Actuator 0-10V MOD 300N, MAN.OP.
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-M31A150-left
    M7410E1002-10M
    Modulating Linear Valve Actuator, 24Vac, 6.5mm stroke, 180N, 10m cable
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-M7410E1002-left
    M7410E1002-10M
    Modulating Linear Valve Actuator, 24Vac, 6.5mm stroke, 180N, 10m cable
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-M7410E1002-left
    M7410E2026
    Modulating Linear Valve Actuator, 24Vac, 6.5mm stroke, 180N, Manual Operation, Auxiliiary Switches, 1.5m Cable
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-M7410E2026-left
    M7410E2026
    Modulating Linear Valve Actuator, 24Vac, 6.5mm stroke, 180N, Manual Operation, Auxiliiary Switches, 1.5m Cable
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-M7410E2026-left
    M7410E2034
    Modulating Linear Valve Actuator, 24Vac, 6.5mm stroke, 300N, Manual Operation, Auxiliiary Switches, 1.5m Cable
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-M7410E2026-left
    M7410E2034
    Modulating Linear Valve Actuator, 24Vac, 6.5mm stroke, 300N, Manual Operation, Auxiliiary Switches, 1.5m Cable
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-M7410E2026-left
    M7410E4022
    Modulating Linear Valve Actuator, 24Vac, 6.5mm stroke, 180N, Manual Operation, Auxiliary Switches, 1.5m Cable
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-M7410E2026-left
    M7410E4022
    Modulating Linear Valve Actuator, 24Vac, 6.5mm stroke, 180N, Manual Operation, Auxiliary Switches, 1.5m Cable
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-M7410E2026-left
    M7410E4030
    Modulating Linear Valve Actuator, 24Vac, 6.5mm stroke, 300N, Manual Operation, Auxiliary Switches, 1.5m Cable
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-M7410E2026-left
    M7410E4030
    Modulating Linear Valve Actuator, 24Vac, 6.5mm stroke, 300N, Manual Operation, Auxiliary Switches, 1.5m Cable
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-M7410E2026-left
    M7410E5001
    Modulating Linear Valve Actuator, 24Vac, 2.5mm stroke, 90N, 1.5m Cable
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-M7410E5001-left
    M7410E5001
    Modulating Linear Valve Actuator, 24Vac, 2.5mm stroke, 90N, 1.5m Cable
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-M7410E5001-left
    M7410E5001-3M
    Modulating Linear Valve Actuator, 24Vac, 2.5mm stroke, 90N, 3m Cable
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-M7410E5001-left
    M7410E5001-3M
    Modulating Linear Valve Actuator, 24Vac, 2.5mm stroke, 90N, 3m Cable
    https://honeywell.scene7.com/is/image/Honeywell65/ba-bms-M7410E5001-left
    M7410E5001-5M
    Modulating Linear Valve Actuator, 24Vac, 2.5mm stroke, 90N, 5m Cable
    M7410E5001-5M
    Modulating Linear Valve Actuator, 24Vac, 2.5mm stroke, 90N, 5m Cable
