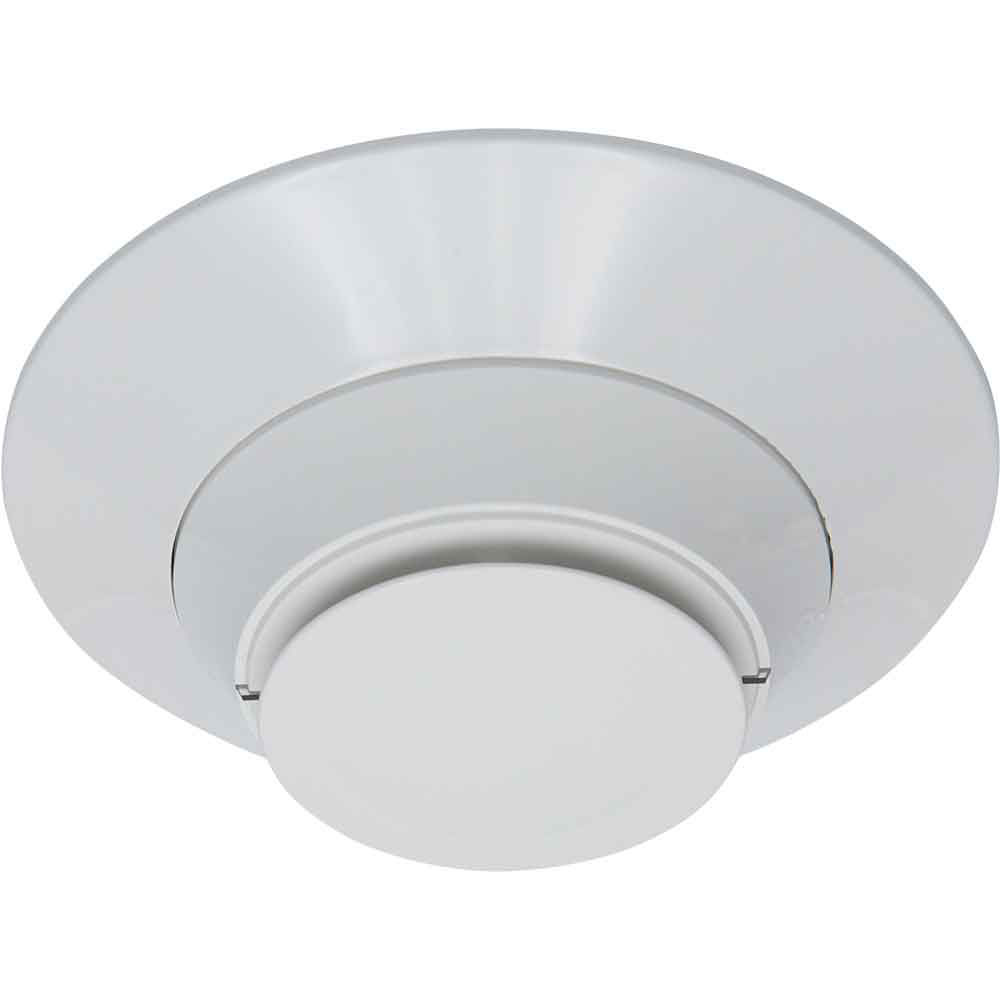

Self-Test Series Spot Detectors

Self-Test Series detectors automatically perform maintenance tests for smoke and heat detection without using canned smoke or heat guns when used with a compatible fire alarm conrol panel and supporting self test App. The Self-Test process meets the three core NFPA requirements for detector maintenance: functional test, smoke entry test, and ability to verify a visual inspection has taken place

SELF-TEST
• Introduces small amounts of smoke and heat into the chamber to test the sensors
• Automatically tests if the photo sensor smoke entry points are blocked by the dust cover
• Verifies that the technician has completed the visual inspection through its built-in beacon and the self-test app
• Tests detectors across multiple loops and panels concurrently
• Listed to UL 268 7th edition and/or UL 521
SLC LOOP
• Two-wire SLC loop connection
• Unit uses base for wiring
• Stable communication technique with noise immunity
ADDRESSING
• Addressable by device
• Rotary, decimal addressing
ARCHITECTURE
• Sleek, low-profile, stylish design
• Unique single-source design to respond quickly and dependably to a broad range of fires
• Integral communications and built-in device-type identification
• Tamper resistance option provided by bases
• Built-in functional test switch activated by external magnet
• Removable cover and insect-resistant screen for simple field cleaning
OPERATION
• LED “blinks” when the unit is polled (communicating with the fire panel) and latches in alarm.
• Low standby current
MECHANICALS
• Sealed against back pressure
• SEMS screws for wiring of the separate base
• Designed for direct-surface or electrical-box mounting
• Plugs into separate base for ease of installation and maintenance
OPTIONS
• Optional relay, isolator, and sounder bases

• UL
• FM
• CSFM
